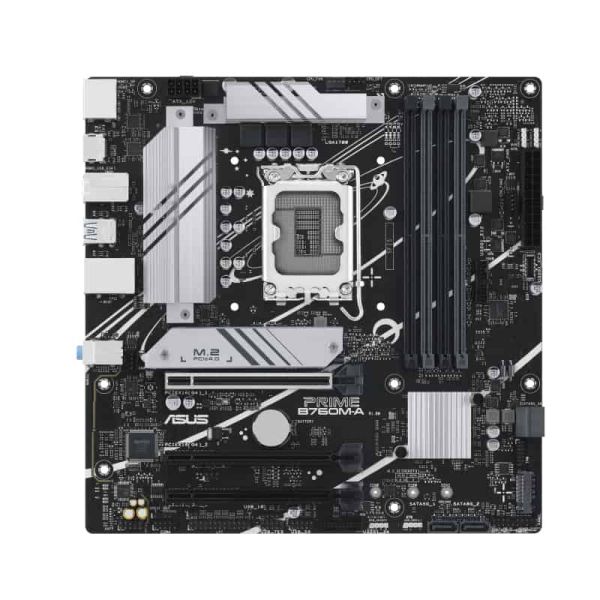

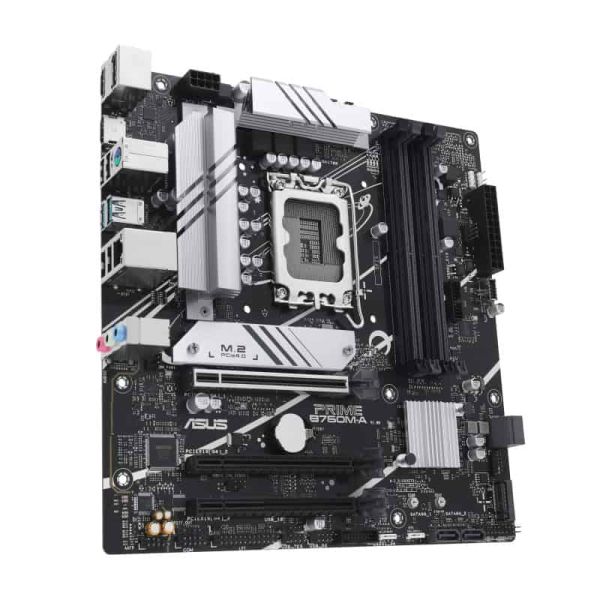

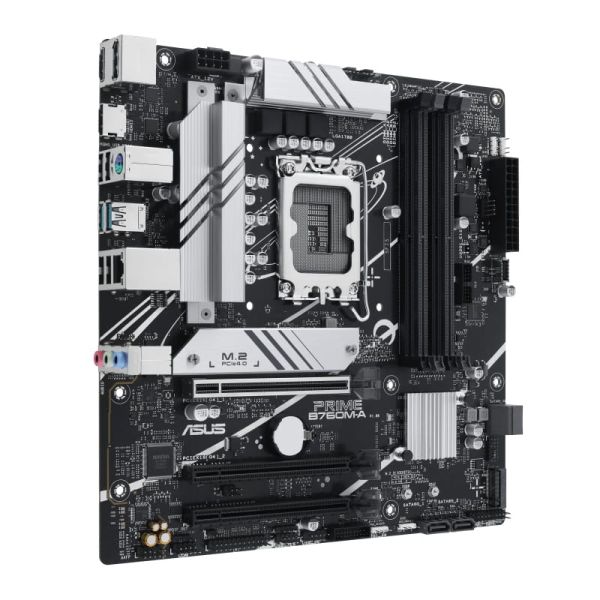

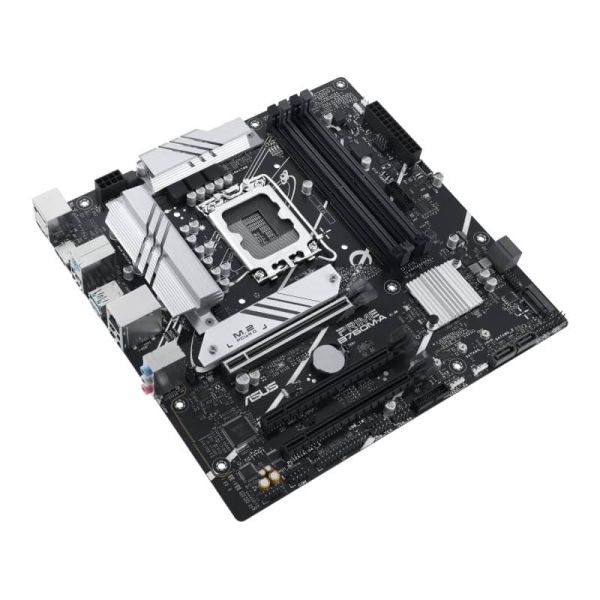

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX

ASUS PRIME B760M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB

Ruim op voorraad

Fabrikant ASUS
MPN 90MB1EK0-M0EAYC
EAN 4711387140710
€ 192,00 excl. BTW

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Ondersteunde geheugenkloksnelheid (max)
7200 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
6

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

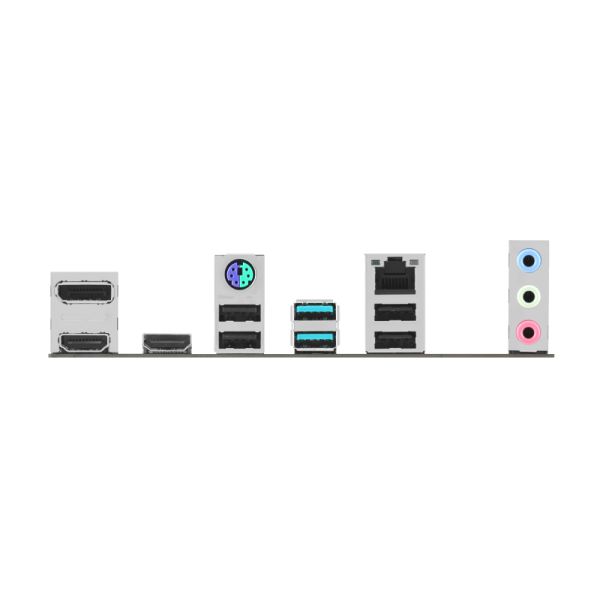

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1
Aantal HDMI-poorten*
2
Aantal DisplayPorts
1
Hoofdtelefoonuitgangen
1
Lijningang
Ja
Microfoon, line-in ingang
Ja
WiFi-AP antenna jack
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja

Kenmerken

Chipset moederbord*
Intel B760
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11

Uitbreidingsmodules

PCI Express x16 (Gen 4.x) sleuven
3
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
Clear CMOS knop
Ja

Verpakking

Breedte verpakking
270 mm
Diepte verpakking
263 mm
Hoogte verpakking
52 mm
Gewicht verpakking
1,14 kg

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm
Hoogte
40 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
