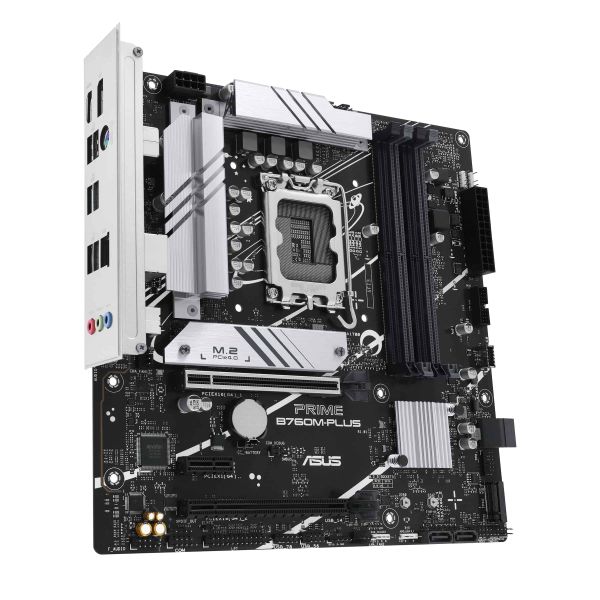

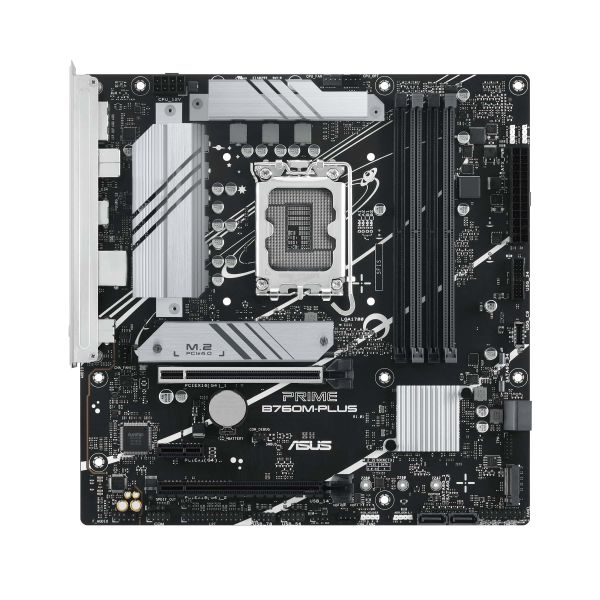

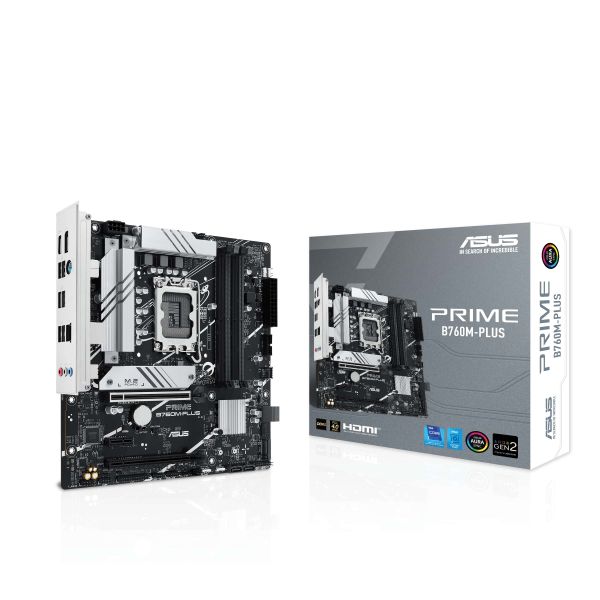

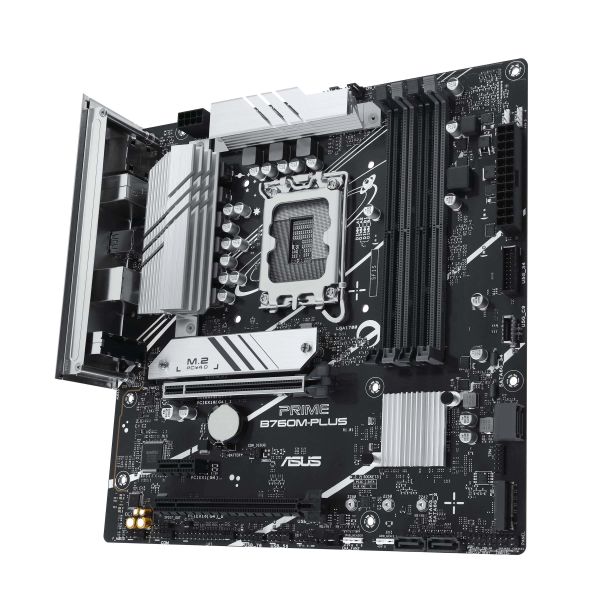

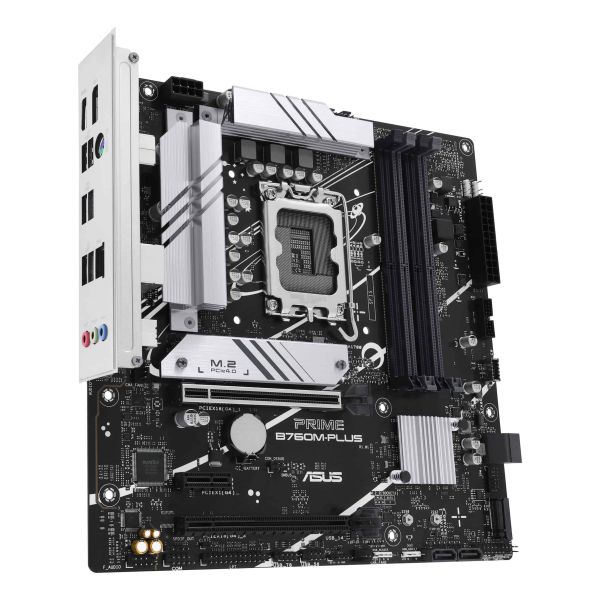

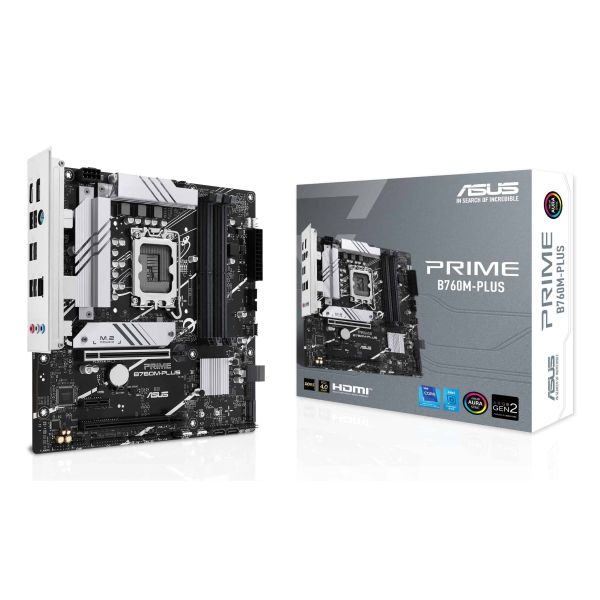

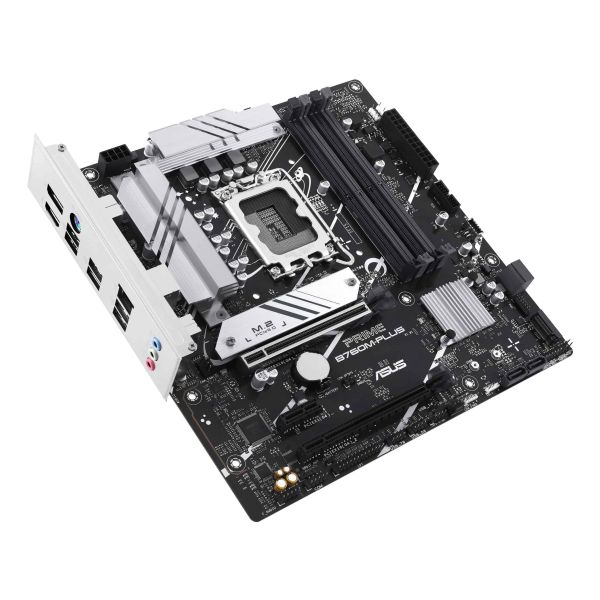

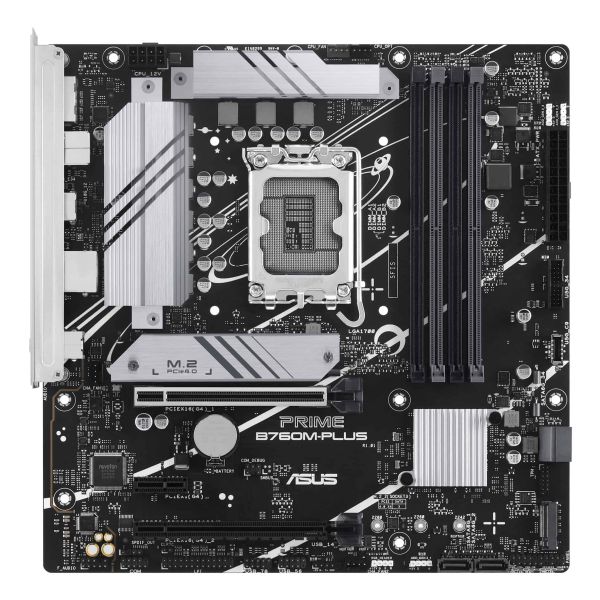

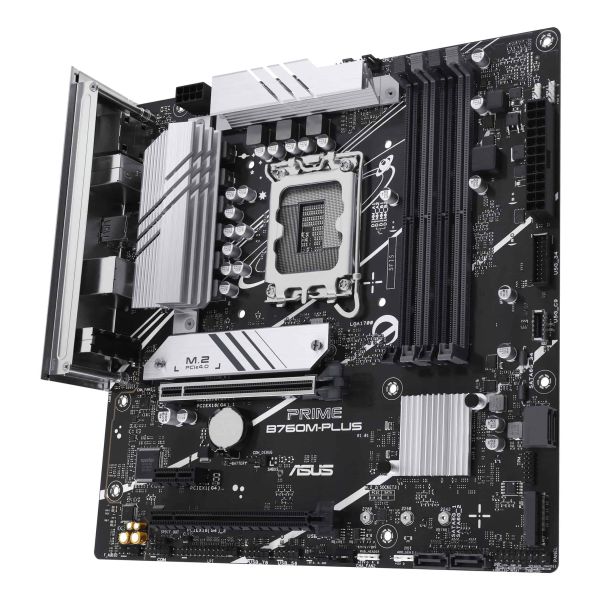

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro ATX

ASUS PRIME B760M-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB

Ruim op voorraad

Fabrikant ASUS
MPN 90MB1GY0-M0EAY0
EAN 4711387469910
€ 179,00 excl. BTW

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro ATX

ASUS MB ASUS PRIME B760M-PLUS

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Ondersteunde geheugenkloksnelheid (max)
7200 MHz
Maximum intern geheugen*
192 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
12V vermogen-connector
Ja

Interne aansluitingen

RGB LED-aansluitrail
Ja

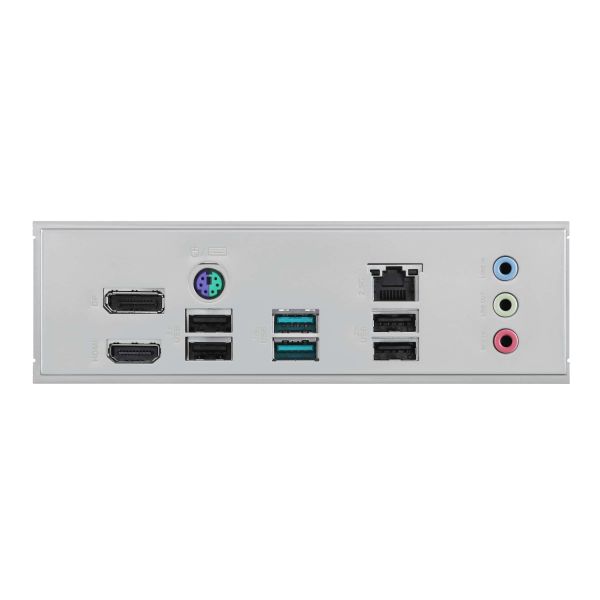

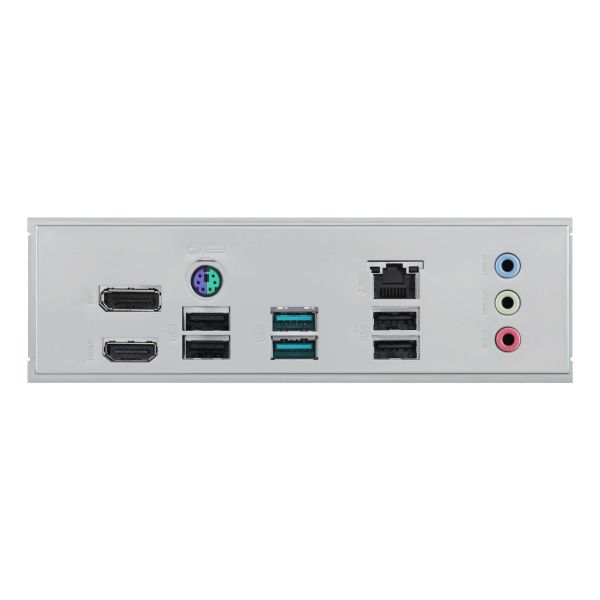

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel B760
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11

Uitbreidingsmodules

PCI Express x1 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 4.x) sleuven
2
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Inclusief schroeven
Ja
