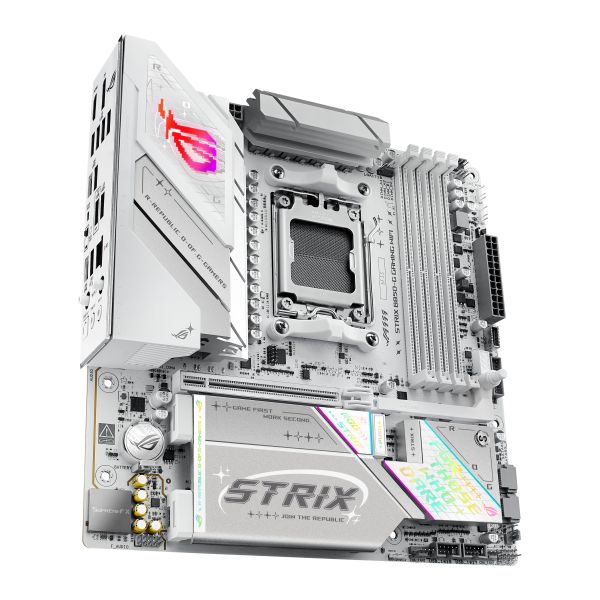

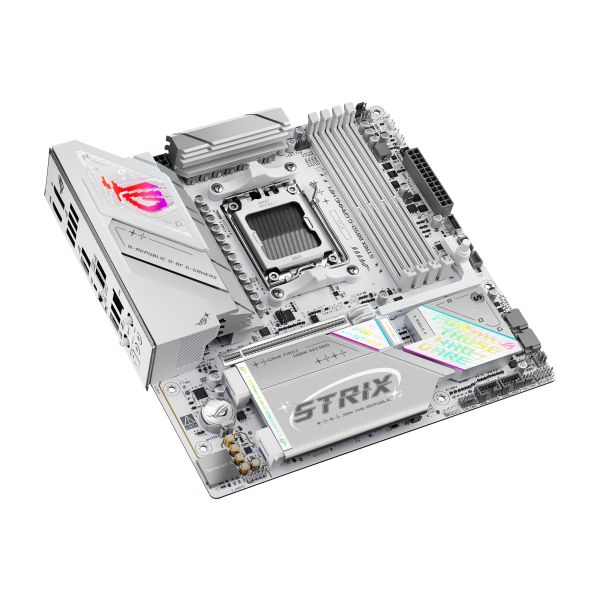

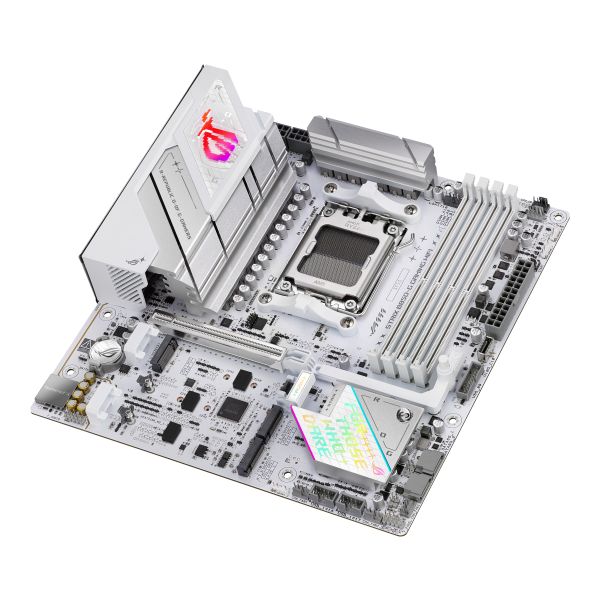

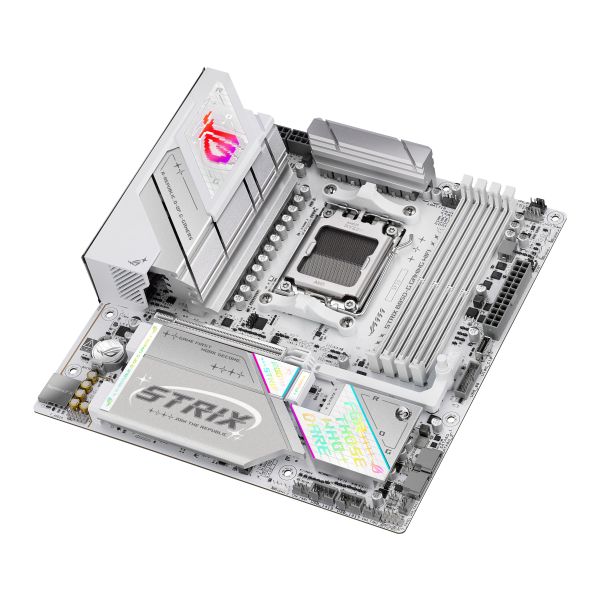

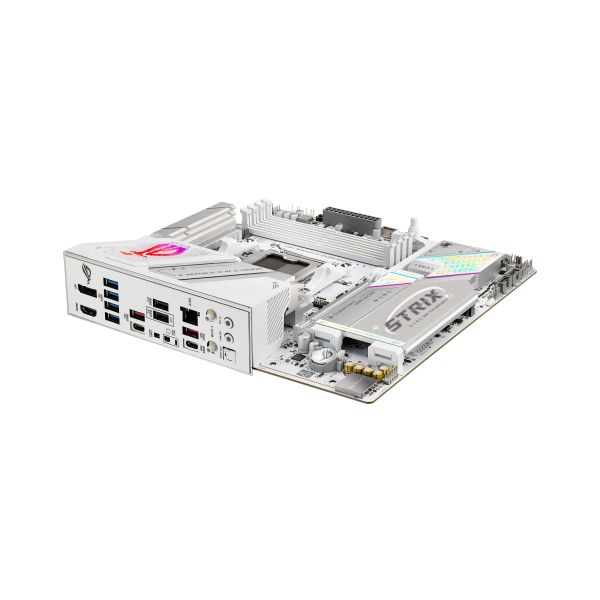

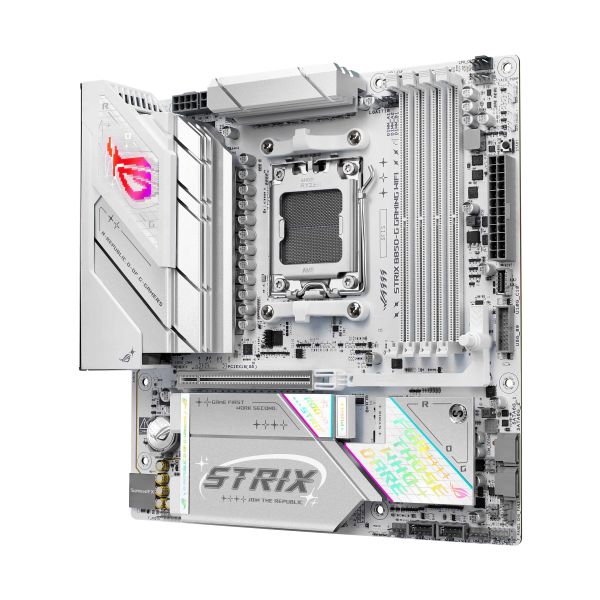

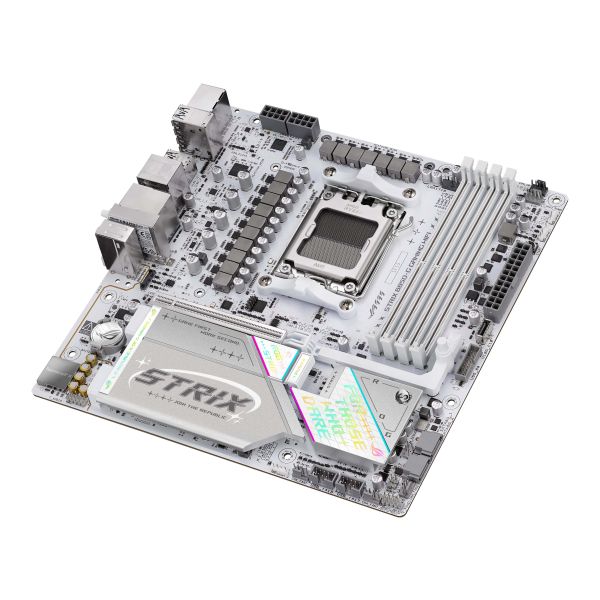

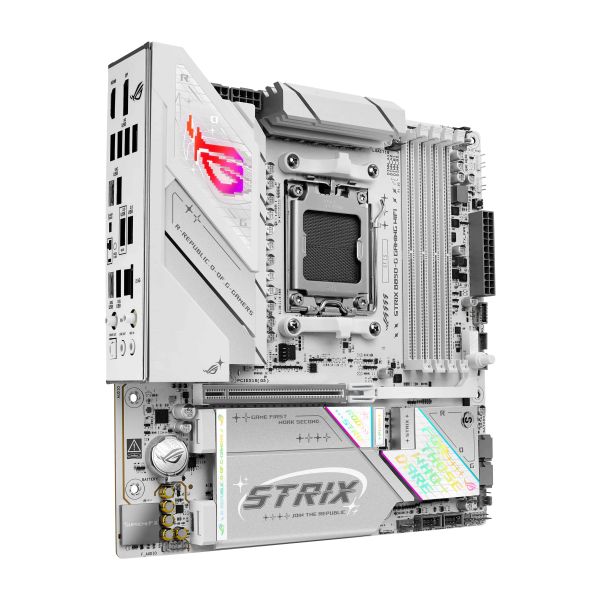

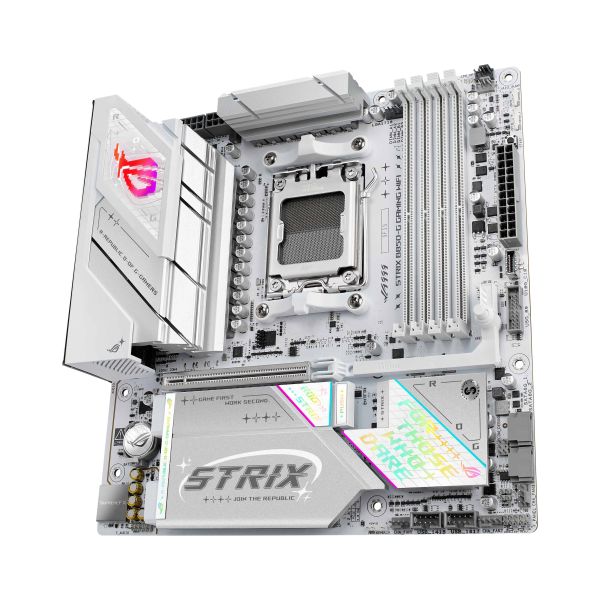

ASUS ROG STRIX B850-G GAMING WIFI AMD B850 Socket AM5 micro ATX
ASUS ROG STRIX B850-G GAMING WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5-SDRAM, 256 GB, DIMM
20+ op voorraad (levering verwacht binnen 3 dagen)Dit item is op voorraad in een centraal Europees magazijn. De levertijd is ~3 werkdagen.
€ 314,00
excl. BTW
€ 314,00
excl. BTW
excl. BTW
4,5
·
4,0
·
Gratis verzending vanaf €250
ASUS ROG STRIX B850-G GAMING WIFI
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Productassistent
Vraag mij alles over dit product
Onze digitale assistent geeft direct antwoord op je productvragen, maar kan zich soms vergissen.
Processor
Processorfabrikant
AMD
Processor socket
Socket AM5
Compatibele processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Geheugen
Ondersteunde geheugen types
DDR5-SDRAM
Aantal geheugenslots
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
ECC & Niet-ECC
Ondersteunde geheugenkloksnelheid (max)
8000 MHz
Maximum intern geheugen
256 GB
Niet gebufferd geheugen
Ja
Opslag-controllers
Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces
M.2, SATA III
Maximum aantal HDD's per behuizing
2
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 5, 10
Grafisch
Ondersteuning voor parallel processing
Niet ondersteund
Interne aansluitingen
USB 2.0 aansluitingen
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen
1
USB 3.2-connectoren (3.1 Gen 2)
1
Aantal SATA III connectors
2
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aantal CPU-ventilatoraansluitingen
1
Aansluitingen voor behuizingsventilatoren
3
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
12V vermogen-connector
Ja

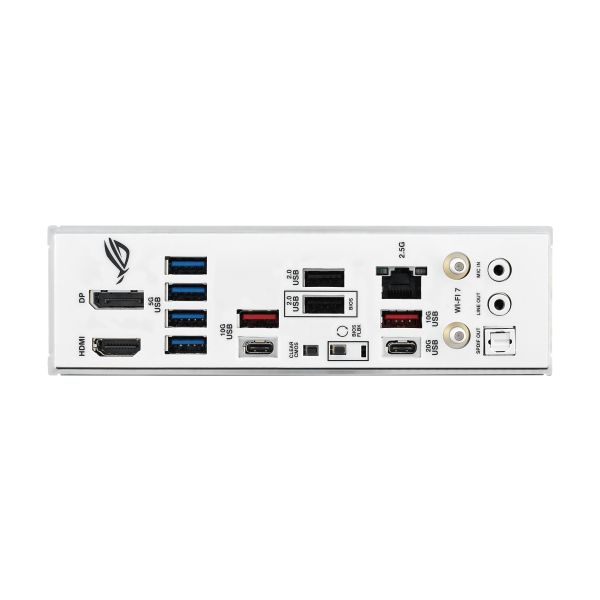

Aansluitingen achterzijde
Aantal USB 2.0-poorten
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten
1
Aantal HDMI-poorten
1
Aansluitingen achterzijde
Aantal DisplayPorts
1
Microfoon, line-in ingang
Ja
S/PDIF-uitgang
Ja
WiFi-AP antenna jack
2
Netwerk
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi
Ja
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
Wi-Fi 7 (802.11be)
Bluetooth
Ja
Bluetooth-versie
5.4
Kenmerken
Chipset moederbord
AMD B850
Audio-uitgangskanalen
7.1 kanalen
Kleur van het product
Wit
Component voor
PC
Moederbord form factor
micro ATX
Moederbord chipset familie
AMD
Ondersteunt Windows
Windows 11
Uitbreidingsmodules
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
4
BIOS
BIOS type
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Clear CMOS knop
Ja
Verpakking
Breedte verpakking
285 mm
Diepte verpakking
277 mm
Hoogte verpakking
72,5 mm
Gewicht en omvang
Breedte
244 mm
Diepte
244 mm

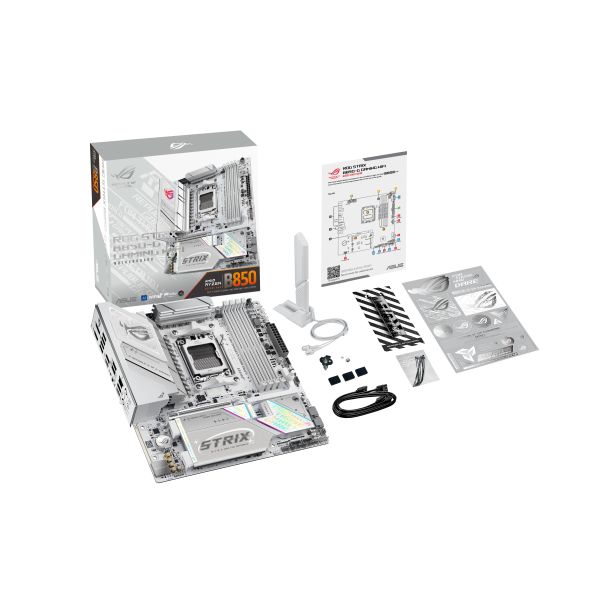

Inhoud van de verpakking

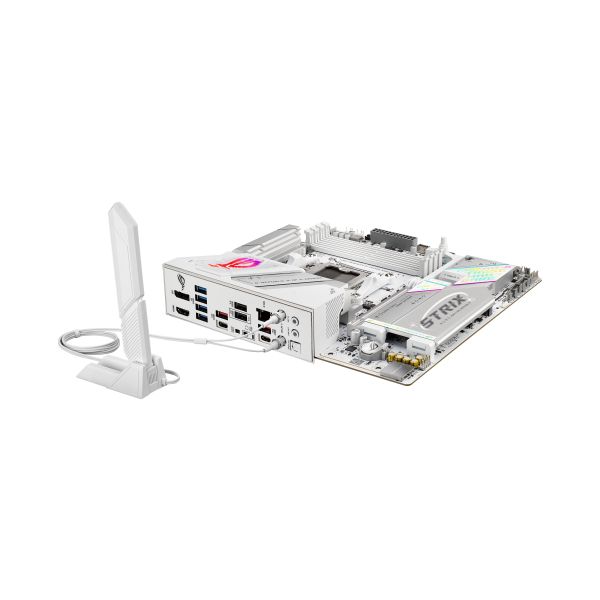

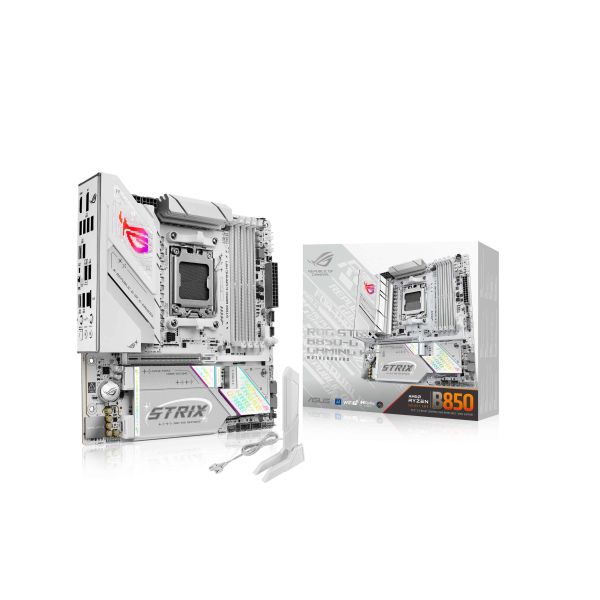

Antenne inbegrepen
Ja
Overige specificaties
Audio-uitgang
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Speciale eigenschappen
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)

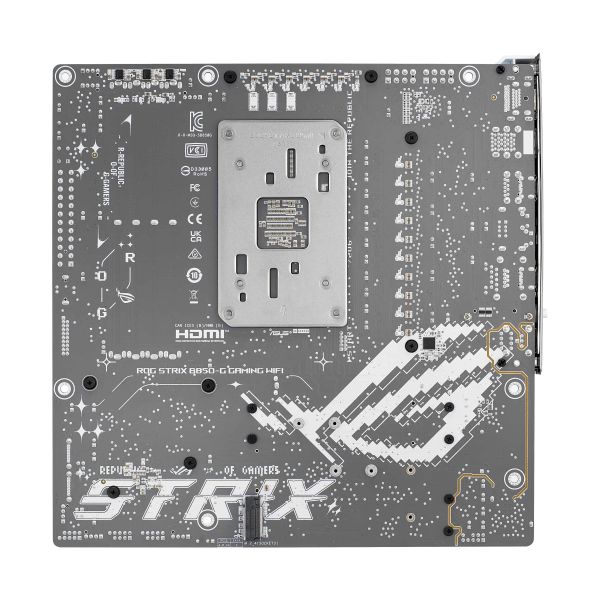

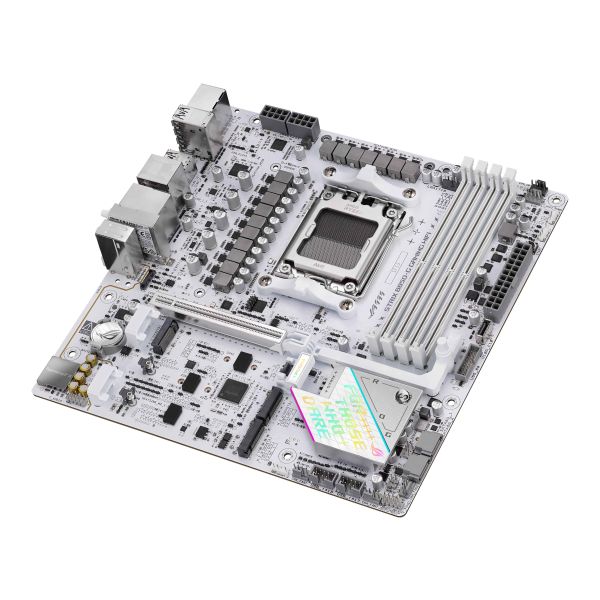

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board
2 x SATA 6Gb/s ports
*Specifications vary by CPU types.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board
2 x SATA 6Gb/s ports
*Specifications vary by CPU types.
Andere kenmerken
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Grafische uitvoer
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
