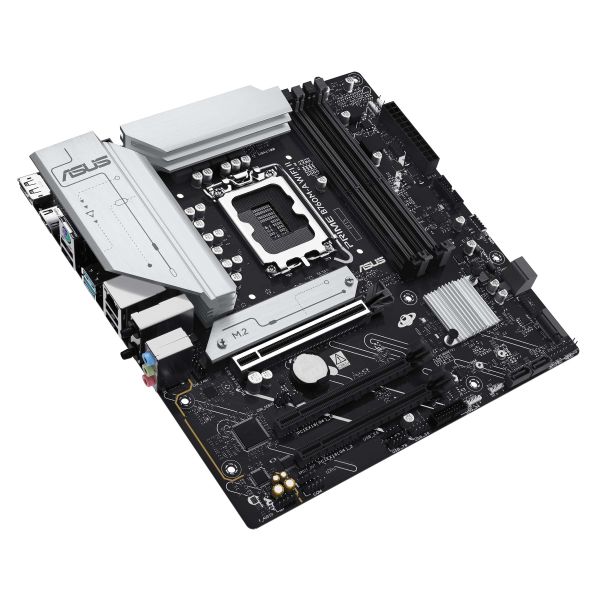

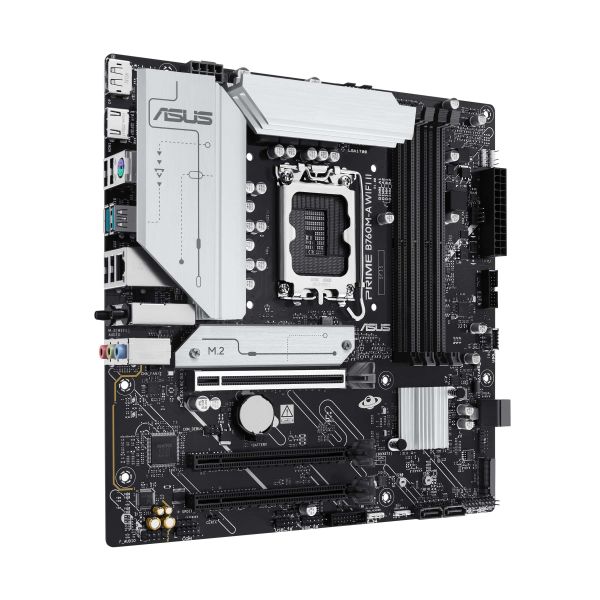

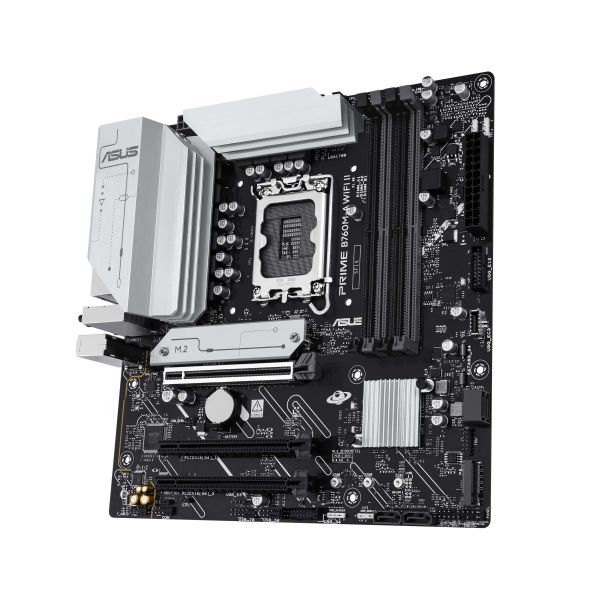

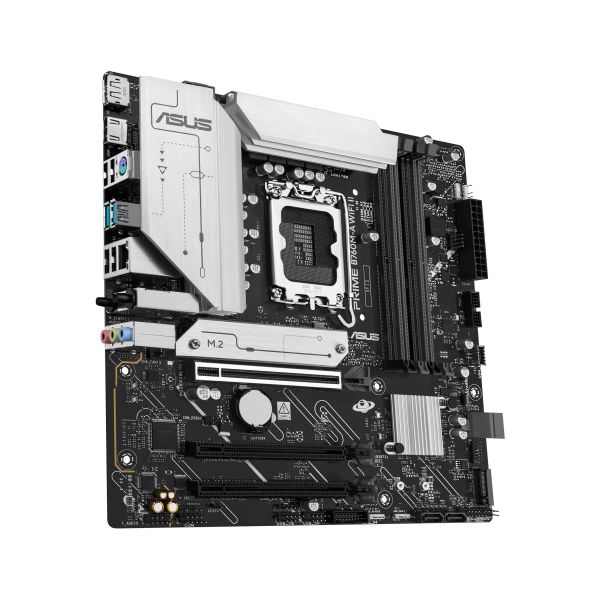

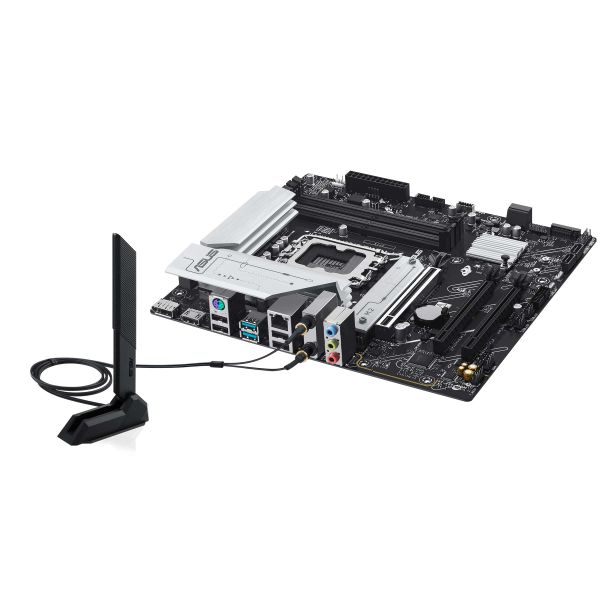

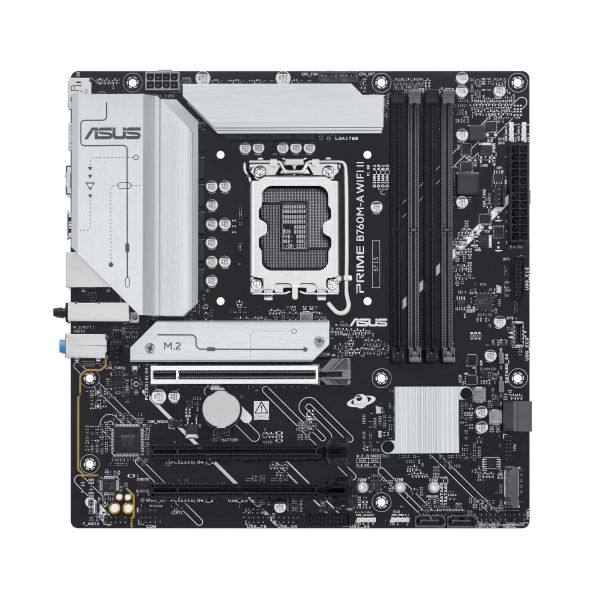

ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX

ASUS PRIME B760M-A WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB

Ruim op voorraad

Fabrikant ASUS
MPN 90MB1NF0-M0EAY0
EAN 4711636275439
€ 251,00 excl. BTW

ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX

ASUS MB ASUS PRIME B760M-A WIFI II

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Ondersteunde geheugenkloksnelheid (max)
7200 MHz
Maximum intern geheugen*
256 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
3
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
EPS power connector (8-pin)
Ja
COM aansluitingen
1
TPM connector
Ja
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

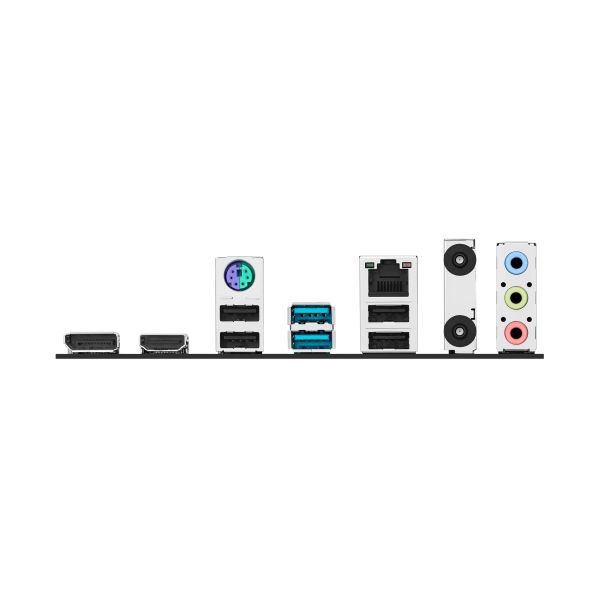

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
WiFi-AP antenna jack
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.4

Kenmerken

Chipset moederbord*
Intel B760
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11

Uitbreidingsmodules

PCI Express x16 (Gen 4.x) sleuven
2
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
2
1e M.2 grootste sleutelgrootte
2280
1e M.2 hoogste PCI Express-generatie
4.0
2e M.2 grootste sleutelgrootte
2280
2e M.2 hoogste PCI Express-generatie
4.0
3e M.2 hoogste PCI Express-generatie
3.0

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit

Verpakking

Breedte verpakking
275 mm
Diepte verpakking
275 mm
Hoogte verpakking
67,5 mm
Gewicht verpakking
1,4 kg

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Antenne inbegrepen
Ja
Inclusief schroeven
Ja
