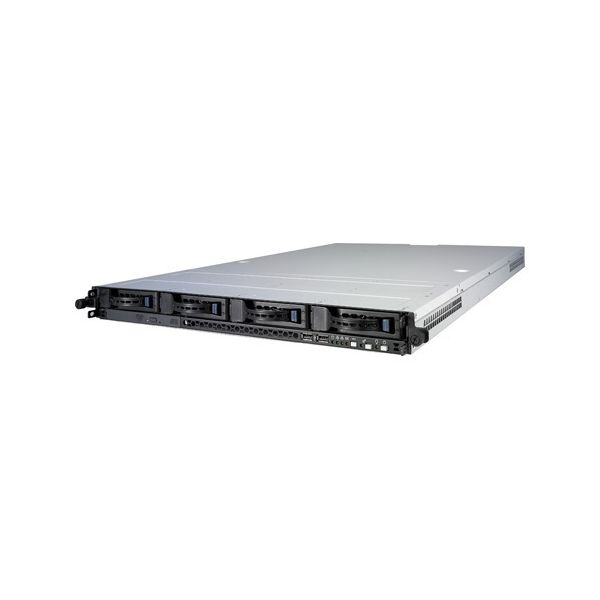

ASUS RS162-E4/RX4 Intel® 5000P LGA 771 (Socket J) Rack (1U) Zwart, Zilver

Most Powerful and Reliable 1U Performance Dual-Core Xeon® Server (Quad Core Support)
RS162-E4/RX4 is a new Dual-Core / Quad-Core Intel® Xeon® Processor-based server at FSB1066/1333MHz. With support of EM64T technology, 64-bit OS, ECC DDR2 memory, and dual PCI-Express Gigabit LAN, it delivers powerful functions to customers.

RS162-E4/RX4 is a new Dual-Core / Quad-Core Intel® Xeon® Processor-based server at FSB1066/1333MHz. With support of EM64T technology, 64-bit OS, ECC DDR2 memory, and dual PCI-Express Gigabit LAN, it delivers powerful functions to customers.

Leading-edge Performance Ready
-EM64T technology provides effective and painless way to enjoy 64bit computing capability
-12 DDR2-533/667 Fully-Buffered DIMM memory slots provides higher performance/bandwidth, and more memory capacity to meet critical computing environment needs

Reliable redundant power solution and data protection
-700W 1+1 hot-swap redundant power supply eliminate system and application downtime by redundancy power backup
-The Total RAID solution supports cost effective RAID 0, 1, 1E and optional ZCR upgrade to hardware RAID 5 to secure your precious data

Dual Server Class PCI-Express Gb LAN
-Intel® 82563EB Network Connection (Dual-Port) provides most professional server network connection solution

1U Server with 2 Expansion Slots
-There are 2 expansion slots which support PCI-E or PCI-X to meet different applications

Considerate Mechanical & Cable-less Design
-Lower service downtime and save engineer’s effort in system maintenance
-Provide easy and quick guidance for engineers

RS162-E4/RX4 Specifications

Processor
2 * Socket LGA771
Quad-Core Intel® Xeon® 5400 Series (45nm)
Dual-Core Intel® Xeon® 5200 Series (45nm)
Quad-Core Intel® Xeon® 5300 Series
Dual-Core Intel® Xeon® 5100 Series
FSB 667/1066/1333MHz EM64T
2x2M, 4M or 8M L2 cache

Chipset
Intel® 5000P Chipset
Intel® 6321ESB I/O Controller Hub
Intel® 6702 PXH 64-bit PCI Hub

Memory
Four Channel ECC Reg. DDR2 533/667 Fully-Buffered DIMMs, max. up to 48GB / 12 slots

Expansion
(option-1):
1 * Full-Height / Half-Length 64-bit PCI-X
1 * Low Profile PCI Express x 8 slot (Proprietary Slot)
(option-2):
1 * PCI-X (For ZCR)
1 * Low Profile PCI Express x 8 slot (Proprietary Slot)
(option-3):
1 * Full-Height / Half-Length PCI Express x 8
1 * Low Profile PCI Express x 8 slot (Proprietary Slot)

LAN Chip
Intel® 82563EB Network Connection (Dual-Port)

Dimension
686mm * 444mm * 43.4mm
