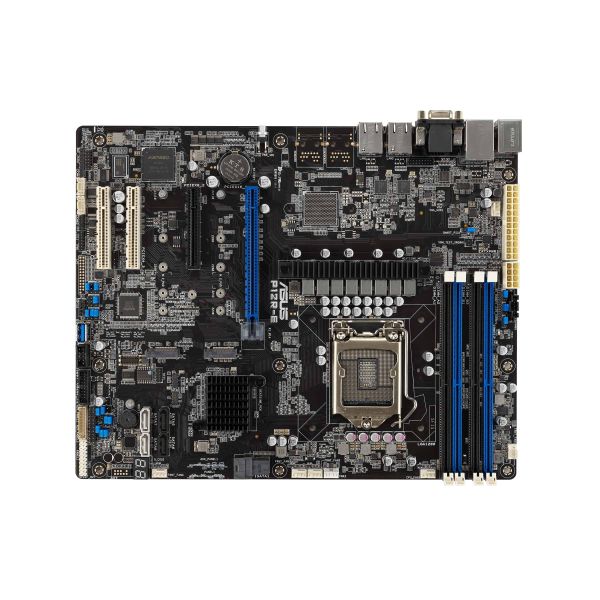

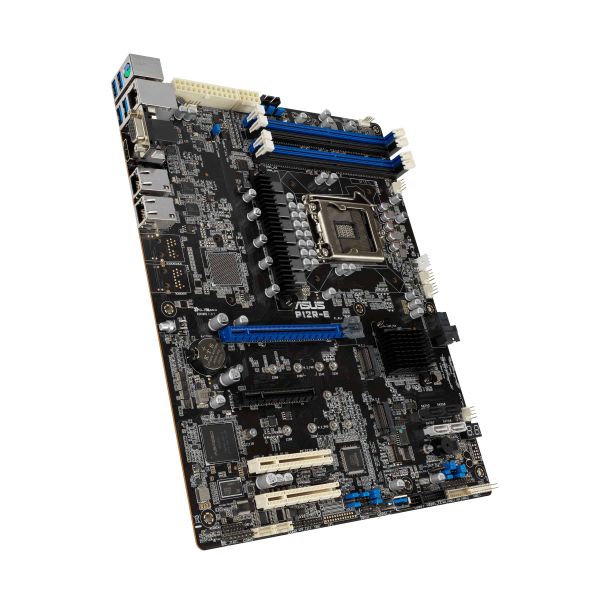

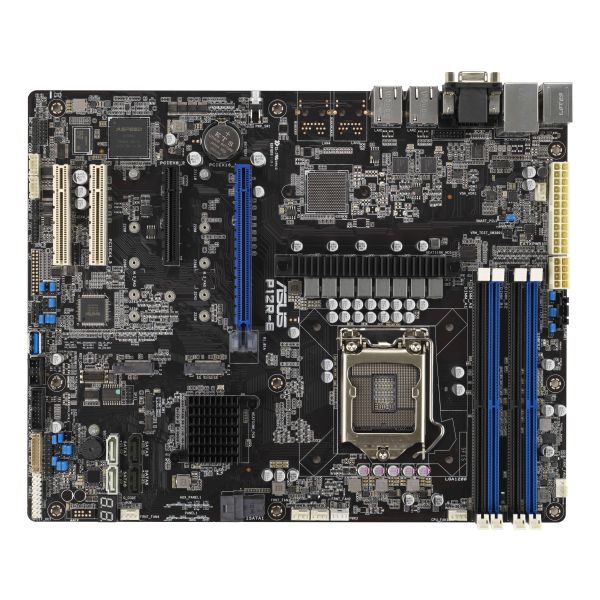

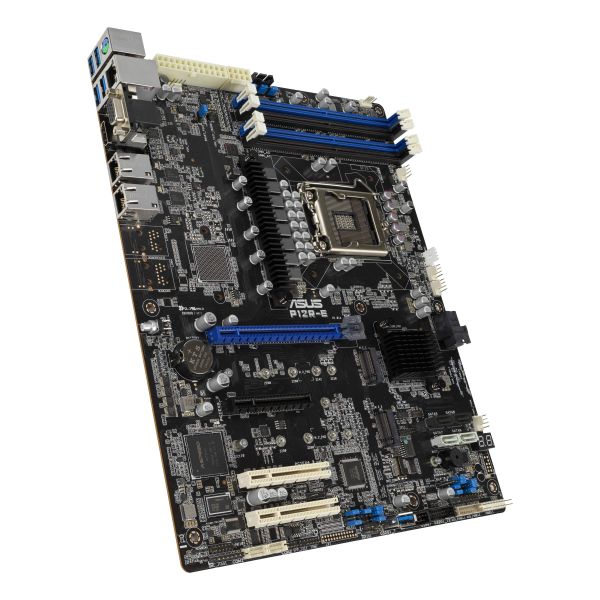

ASUS 90SB0A90-M0UAY0 moederbord LGA 1200 ATX

ASUS 90SB0A90-M0UAY0, Intel, LGA 1200, Intel® Xeon®, DDR4-SDRAM, 128 GB, DIMM

Ruim op voorraad

Fabrikant ASUS
MPN 90SB0A90-M0UAY0
EAN 4711081420217
€ 381,00 excl. BTW

ASUS 90SB0A90-M0UAY0 moederbord LGA 1200 ATX

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1200
Compatibele processors*
Intel® Xeon®

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Supported memory clock speeds
2666,2933,3200 MHz
Maximum intern geheugen*
128 GB
Ondersteunde geheugenmodule capaciteiten
8GB, 16GB, 32GB

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
8
Aantal storage drives ondersteund
10
RAID support
Ja

Grafisch

Ingebouwde grafische adapter
Ja
On-board graphics adapter model
Aspeed AST2600
On-board graphics adapter geheugen
64 MB

Interne aansluitingen

USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
8
Aansluiting voor ventilator van voeding
Ja
Aansluitingen voor behuizingsventilatoren
6
COM aansluitingen
1
TPM connector
Ja

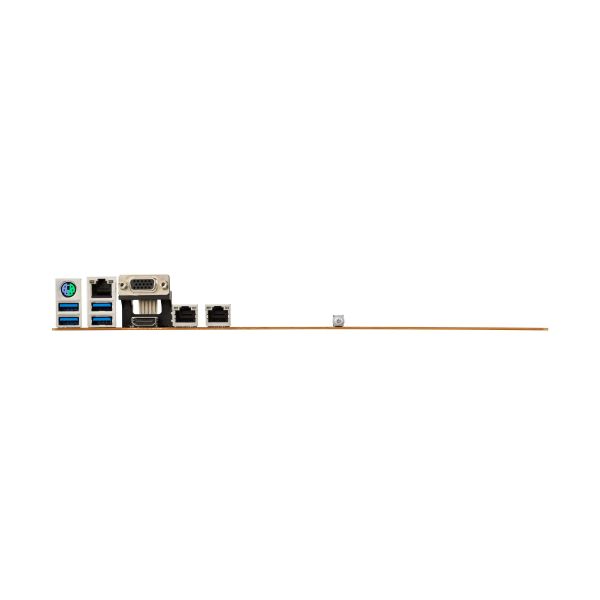

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
PS/2 poort(en)
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1

Kenmerken

PC gezondheids monitor
CPU, Ventilator
Component voor*
Server
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel

Uitbreidingsmodules

PCI Express x8 slots
3
PCI Express x16 slots
1
PCI Express x16 (Gen 3.x) slots
1
Aantal M.2 (M) slots
2

Eisen aan de omgeving

Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 50 procent
Luchtvochtigheid bij opslag
20 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Verpakking

Gewicht verpakking
9,5 g

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm
