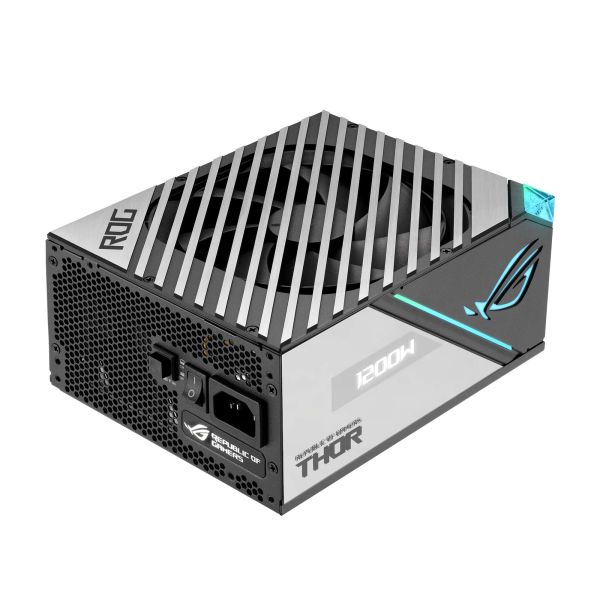

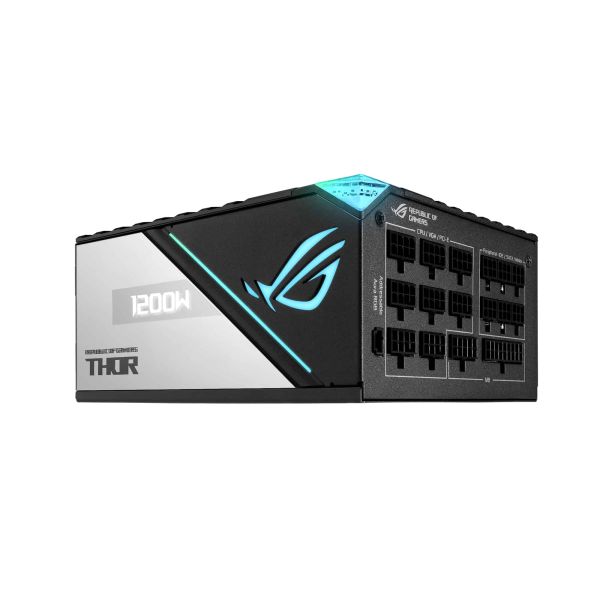

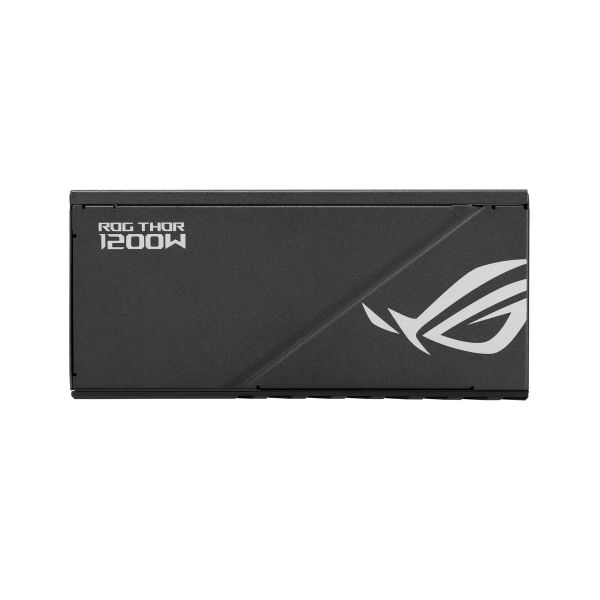

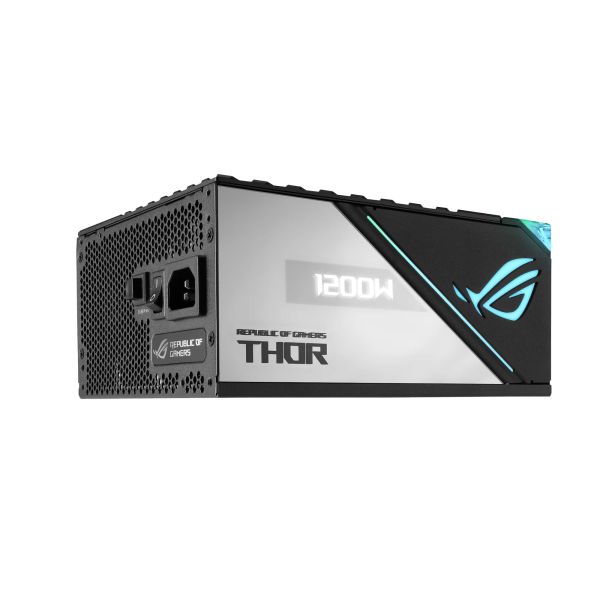

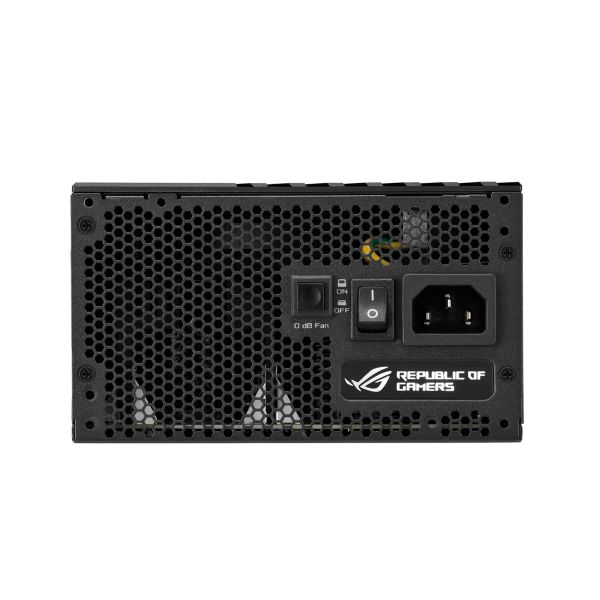

ASUS ROG THOR 1200W Platinum II power supply unit 24-pin ATX Grijs
ASUS ROG THOR 1200W Platinum II, 1200 W, 100 - 240 V, 100 A, 125 W, 1200 W, 125 W
Ruim op voorraad
Fabrikant
ASUS
MPN
90YE00L0-B0NA00
EAN
4711081236061
€ 353,00
excl. BTW
excl. BTW
ASUS ROG THOR 1200W Platinum II power supply unit 24-pin ATX Grijs
The Quietest 1200W Power Supply
Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
Based on Cybenetics PSU test result database entries before October 2021.
COOLING

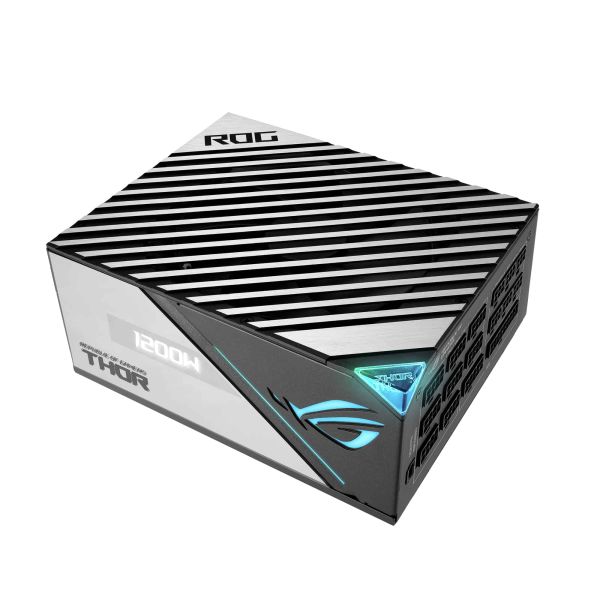

ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design

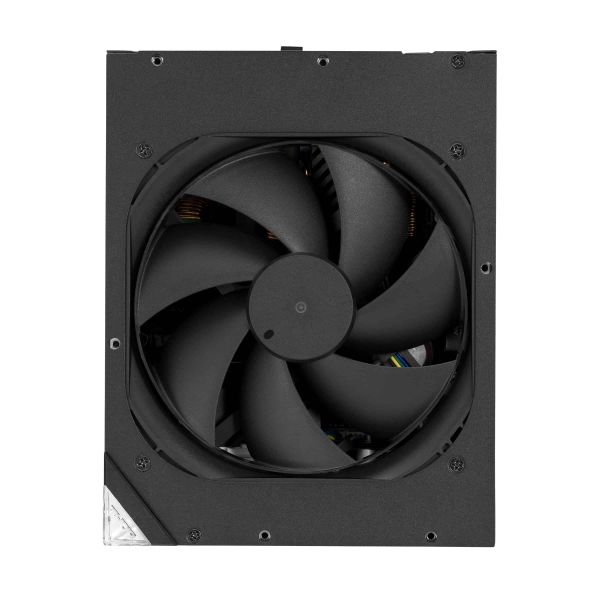

A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

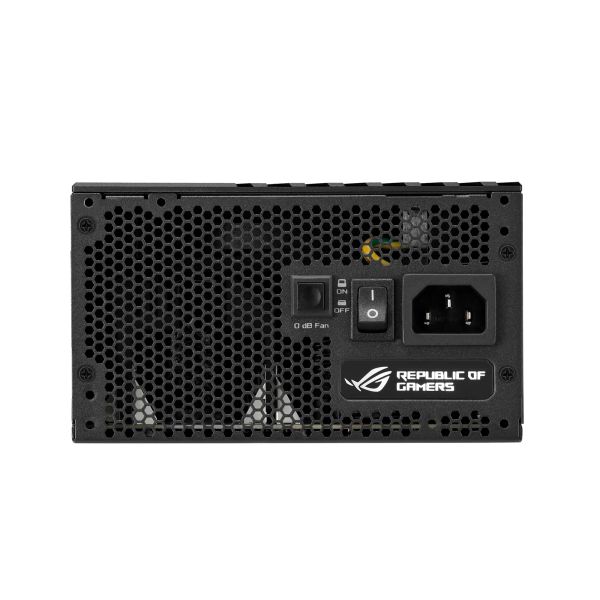

0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
ENGINEERING
80 Plus Platinum Certification
The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

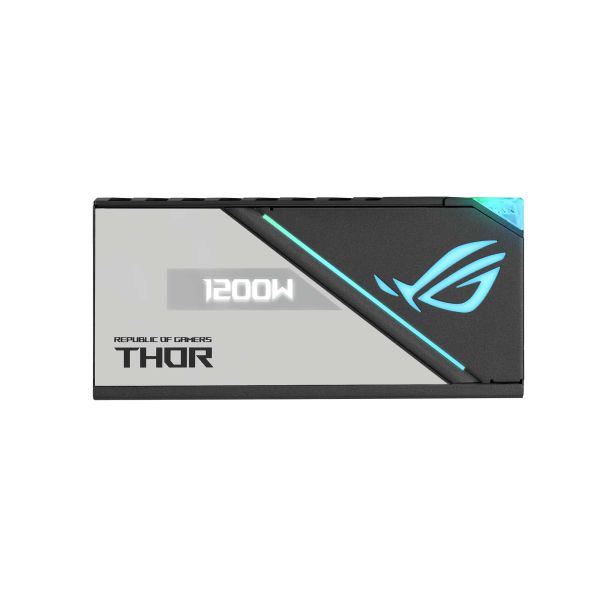

OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1200W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-year Warranty
The ROG Thor 1200W Platinum II is backed with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.
Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
Based on Cybenetics PSU test result database entries before October 2021.
COOLING
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
ENGINEERING
80 Plus Platinum Certification
The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1200W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-year Warranty
The ROG Thor 1200W Platinum II is backed with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.
- Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check
- Built with 100% Japanese capacitors and other premium components to achieve 80 Plus Platinum Certification
- OLED display monitors power draw in real time
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Energie
Totaal vermogen*
1200 W
AC-ingangsspanning*
100 - 240 V
Maximale ingangsstroom (@220V)
100 A
Gecombineerd vermogen (+3.3V)
125 W
Gecombineerd vermogen (+12V)
1200 W
Gecombineerd vermogen (+5V)
125 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
25 A
Max huidige output(+12V)
100 A
Max huidige output (+5V)
25 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Te hoog vermogen, Overspanning, Overbelasting, Kortsluiting, Onder spanning

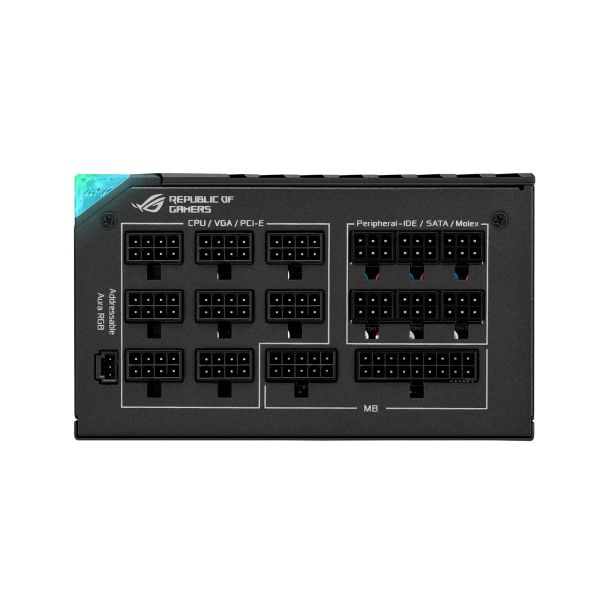

Poorten & interfaces
Motherboard power connector*
24-pin ATX
Aantal SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)*
6
PCI Express power connectors (6+2 pin)
8
CPU power connector (4+4 pin)
Ja
ATX Power connector (24-pin)
Ja
Prestatie
80 PLUS certificatie*
80 PLUS Platinum
Prestatie
Bedoeld voor*
PC
Design
Kleur van het product
Grijs
Type koeling
Actief
Aantal ventilatoren
1 ventilator(en)
Belichting
Ja
Aan/uitschakelaar
Ja
Inhoud van de verpakking
Meegeleverde kabels
AC
Gewicht en omvang
Breedte
190 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
2,37 kg

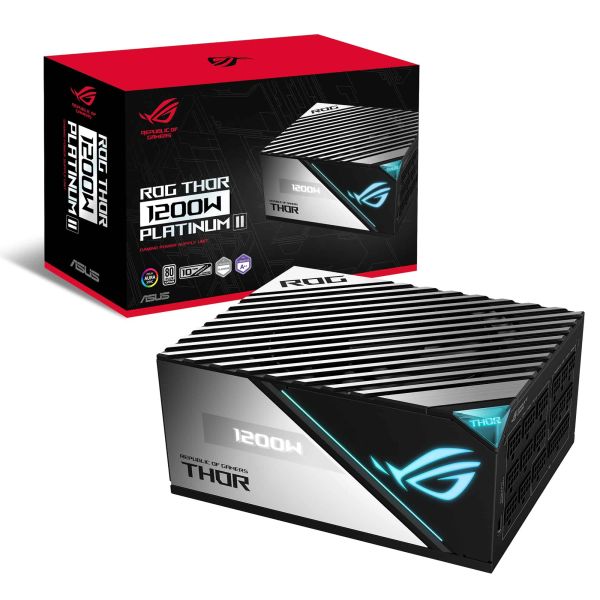

Verpakking
Breedte verpakking
378 mm
Diepte verpakking
240 mm
Hoogte verpakking
130 mm
Gewicht verpakking
4,78 kg
Type verpakking
Doos
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
