Axis T8144 Gigabit Ethernet

Axis T8144, Gigabit Ethernet, 10,100,1000 Mbit/s, Zwart, Alarm, Power over Ethernet (PoE), Stroom, EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI..., 60 W

Ruim op voorraad

Fabrikant Axis
MPN 01154-001
EAN 7331021061149
€ 369,00 excl. BTW

Axis T8144 Gigabit Ethernet

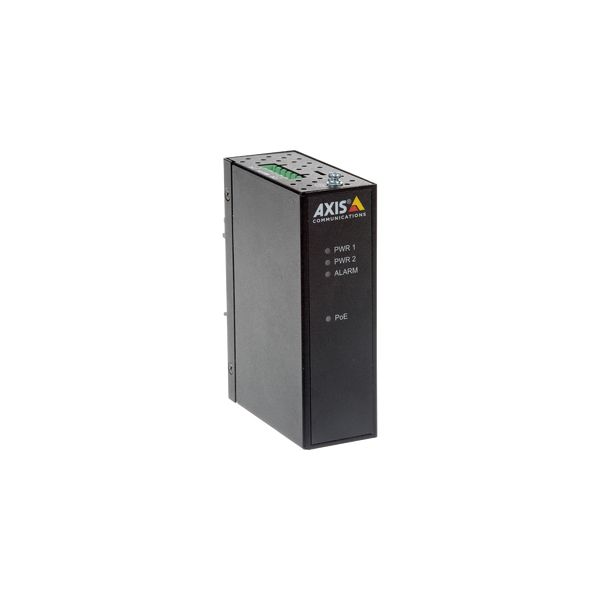

AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.

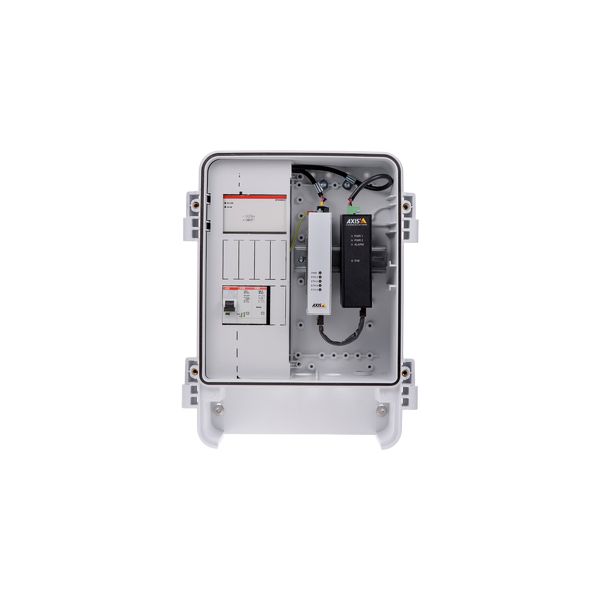

AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja

Kenmerken

Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Rack-montage
Ja
LED-indicatoren
Alarm, Power over Ethernet (PoE), Stroom
Veiligheid
EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES - 003 Class A, EAC Environment IEC 60068 - 2 - 6, IEC 60068 - 2 - 27, IEC 60068 - 2 - 32

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1
Aansluiting voor netstroomadapter
Ja

Energie

Uitgangsvermogen
60 W
Ingangsspanning
20 - 60 V
AC-adapter, uitgangsspanning
55 V

Energie

Vermogensverbruik (max)
72 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Bedrijfstemperatuur, bereik
-40 - 167 °F
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Temperatuur bij opslag
-40 - 85 °C
Hoogte, in bedrijf
-40 - 185 m

Gewicht en omvang

Gewicht
315 g
Afmetingen (B x D x H)
78 x 36 x 111 mm

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85044095
