Axis 01191-003, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), 1U

Niet op voorraad

Fabrikant Axis
MPN 01191-003
EAN 7331021061835

Axis 01191-003 netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

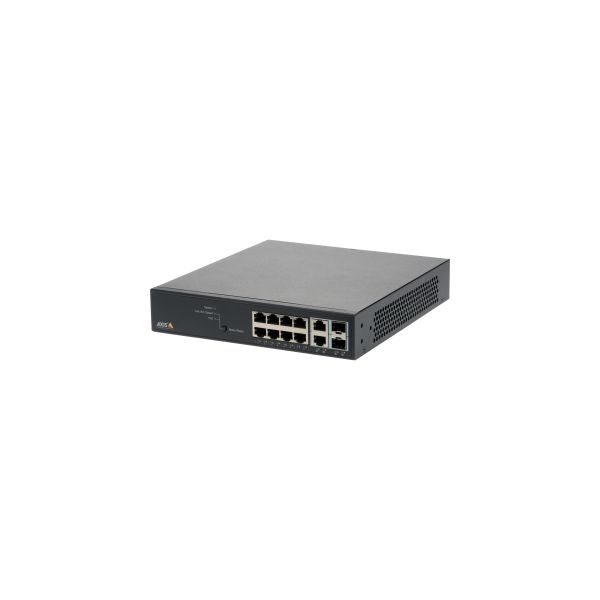

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.
  • 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 130 W; Gigabit switch; Intuitive graphic topology for system overview

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Aantal Combo SFP-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Throughput
14,9 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Beveiliging

DHCP-functies
DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SSH
Authenticatie
Poortgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
Authenticatie type
IEEE 802.1x, RADIUS

Protocollen

Beheerprotocollen
SNMP v1/v2c/v3
Ondersteunde netwerkprotocollen
IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU

Design

Vormfactor
1U
Kleur van het product
Zwart

Design

Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
EN 55032 A EN 55024 FCC 15 B /A VCCI A RCM AS/NZS CISPR 32 A ICES-003 A IEC/EN/UL 60950-1 EN 62368-1 EAC ITE, JATE

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
130 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
220 mm
Diepte
242 mm
Hoogte
44 mm
Gewicht
2,1 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
