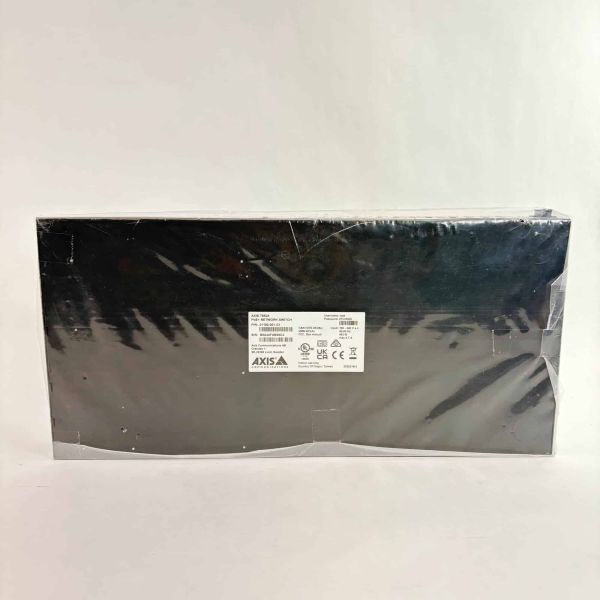

Axis 01192-003, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Axis
MPN 01192-003
EAN 7331021061880

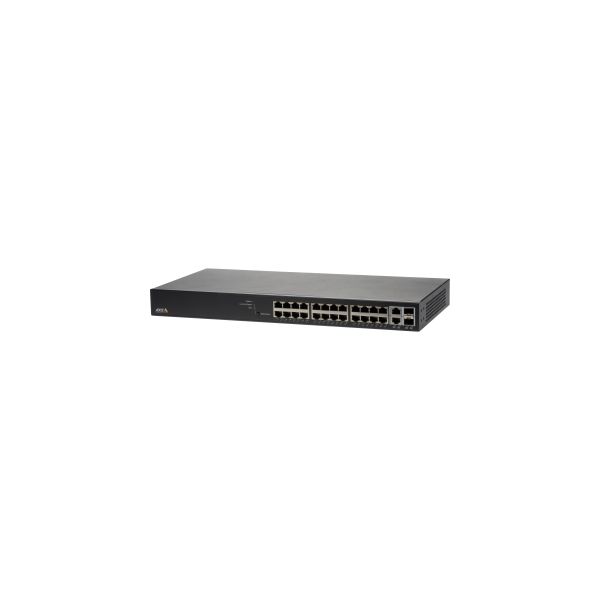

Axis 01192-003 netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

AXIS T8524 PoE+ Network Switch is an easy to install 24-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8524 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 24 PoE cameras.
  • 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 370 W; Gigabit switch; Intuitive graphic topology for system overview

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal Combo SFP-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN

Data-uitwisseling

Switchingcapaciteit*
52 Gbit/s
Throughput
38,7 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Beveiliging

DHCP-functies
DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, HTTPS, SSH
Authenticatie
Poortgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
Authenticatie type
IEEE 802.1x, RADIUS

Protocollen

Beheerprotocollen
SNMP v1/v2c/v3
Ondersteunde netwerkprotocollen
IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU

Design

Rack-montage*
Ja
Vormfactor
1U

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
EN 55032 A EN 55024 FCC part 15 B / A VCCI A RCM AS/NZS CISPR 32 A ICES-003 A IEC/EN/UL 60950-1 EN 62368-1 EAC ITE, JATE, BSMI

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
442 mm
Diepte
211 mm
Hoogte
44 mm
Gewicht
3,2 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
