Axis 02101-003 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Wit

Axis 02101-003, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE)

Niet op voorraad

Fabrikant Axis
MPN 02101-003
EAN 7331021072558
€ 118,00 excl. BTW

Axis 02101-003 netwerk-switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Wit

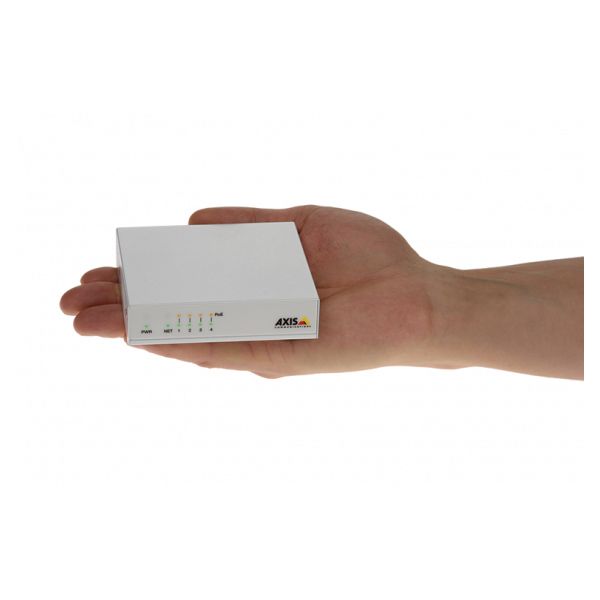

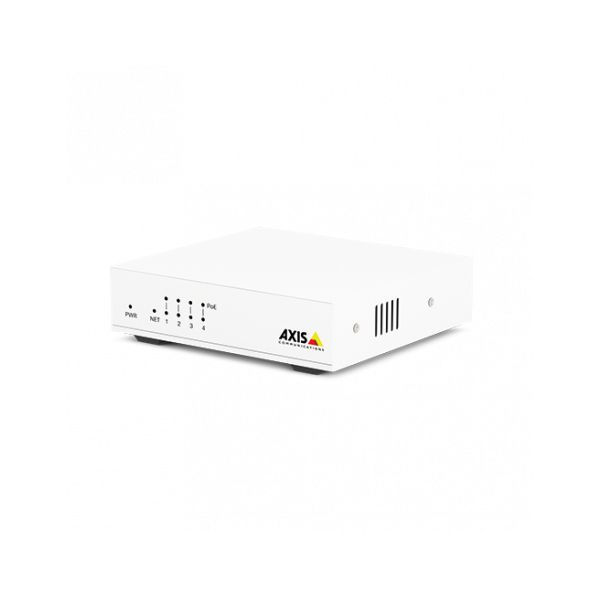

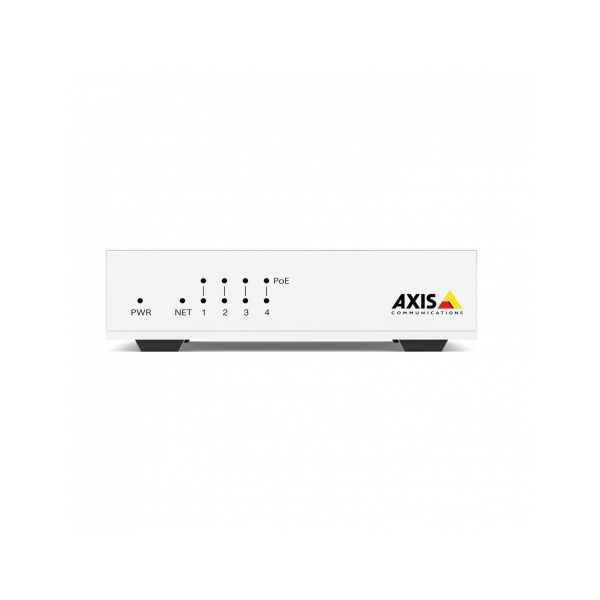

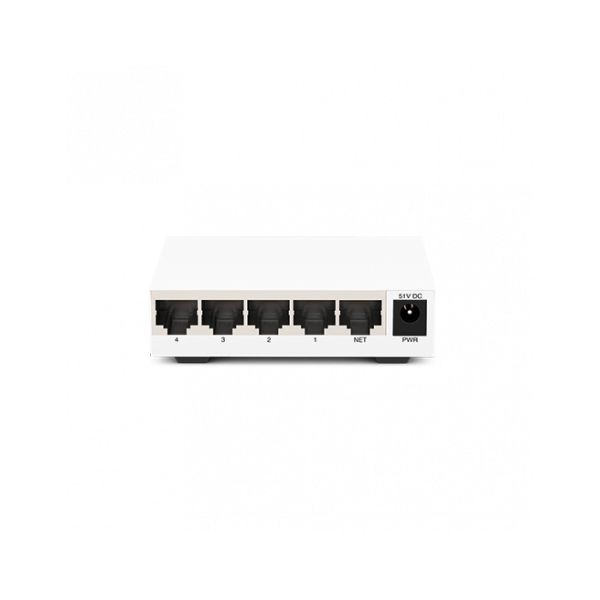

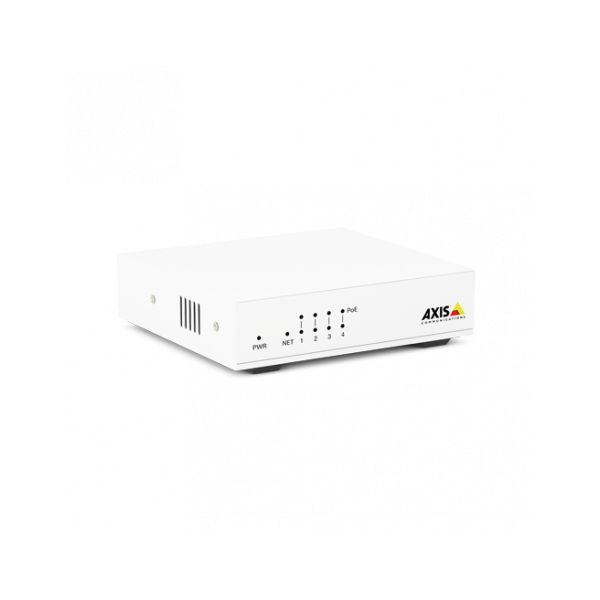

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.
  • 4-port 10/100 Mbps 802.3af/at PoE+; 60 W PoE power budget; Level VI energy efficiency compliance; Palm-sized, metal casing; Plug and play installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at
10G support*
Nee
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s

Design

Kleur van het product
Wit
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Netwerk, Power over Ethernet (PoE), Stroom
Certificering
EN 55022:2010/55032:2012 + AC : 2013 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 Subpart B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
62 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
60 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
90 mm
Diepte
80 mm
Hoogte
21 mm
Gewicht
172 g

Verpakking

Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
