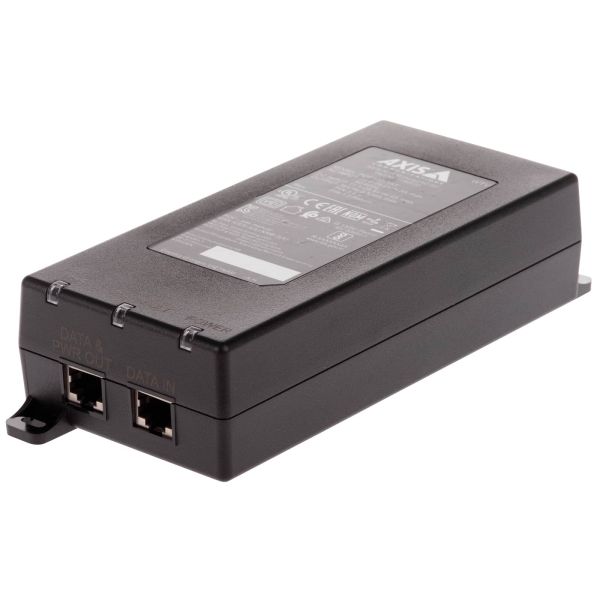

Axis 02209-001 PoE adapter & injector
AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
- 24 V AC and 20-26.4 V DC input
- Up to IEEE 802.3bt (90 W) output
- Ideal for retrofitting PTZ
- Compatible with Axis PoE devices
- Flexible installation
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Netwerk
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3bt
Kenmerken
Kleur van het product
Zwart
Plug and play
Ja
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
RJ-45 invoer ports
1
RJ-45 uitgang ports
1
Energie
Uitgangsvermogen
90 W
Ingangsspanning
20 - 26.4 V
Inhoud van de verpakking
Aantal producten inbegrepen
1 stuk(s)
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85044095
