Axis 02621-001 netwerk-switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Zwart

Axis 02621-001, Managed, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE)

Nog slechts 4 beschikbaar

Fabrikant Axis
MPN 02621-001
EAN 7331021080225
€ 1.107,00 excl. BTW

Axis 02621-001 netwerk-switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Zwart

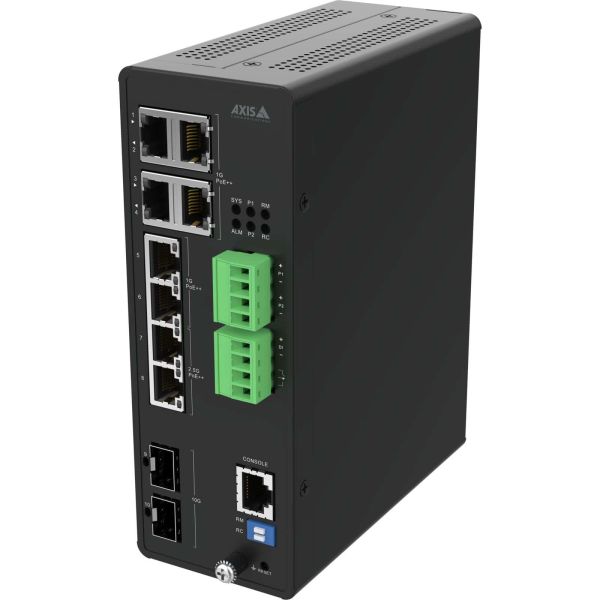

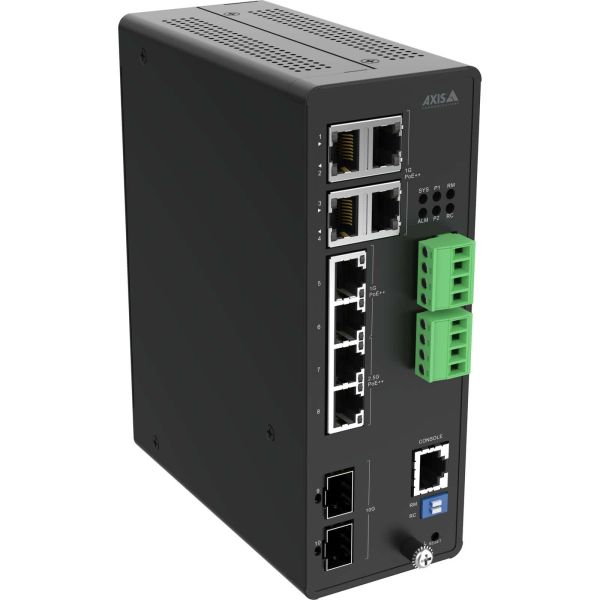

This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.
  • 480 W power budget; Compliant with IEEE 802.3bt up to 90 W; Familiar and intuitive Axis interface; High availability with Rapid Ring; NEMA TS-2 Compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal Gigabit Ethernet (koper)-poorten
6
Aantal 2.5G Ethernet (koper)poorten
2
Aantal geïnstalleerde SFP+ modules*
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support*
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN

Data-uitwisseling

Switchingcapaciteit*
62 Gbit/s
Throughput
46,12 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS
Wachtwoordbeveiliging
Ja

Protocollen

Ondersteunde netwerkprotocollen
IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP

Design

Kleur van het product
Zwart
Materiaal behuizing
Aluminium
Certificering
EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 ed. 3 Environment IEC 60068-2-6, IEC 60068-2-27, NEMA TS 2 (2.2.7-2.2.9), 60068-2-31 (Free fall - Procedure 1), IEC/EN 60529 IP30

Energie

Stroombron*
DC/PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8
Vermogen per poort Power over Ethernet (PoE)
90 W
Totaal Power over Ethernet (PoE)-budget
480 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 60 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
62 mm
Diepte
130 mm
Hoogte
168 mm
Gewicht
892 g
