Canon VB-M50B, IP-beveiligingscamera, Binnen, Bedraad, Aperture voorgang AE, Auto, Handmatig, Sluiter-prioriteit AE, Vereenvoudigd Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Russisch, Thais, EN55032 B, FCC 15 B B, ICES-3/NMB-3 B, VCCI B, C-tick AS/NZS EN55032 B, CNS13438 B, KN32 B,...

Niet op voorraad

Fabrikant Axis
MPN 1064C001
EAN 4549292065756

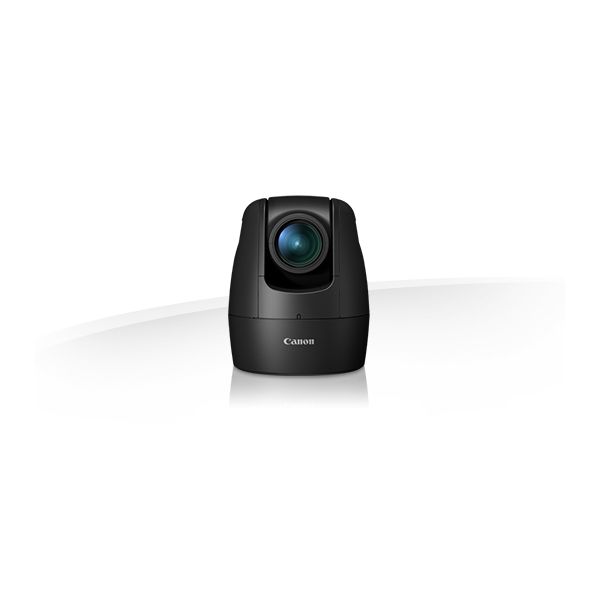

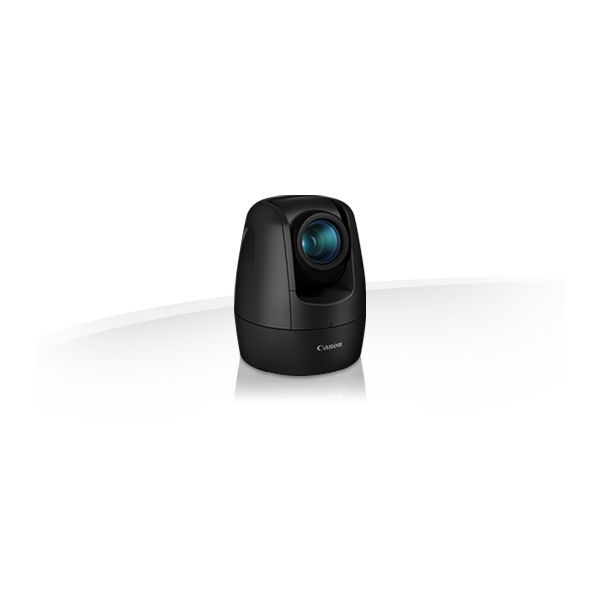

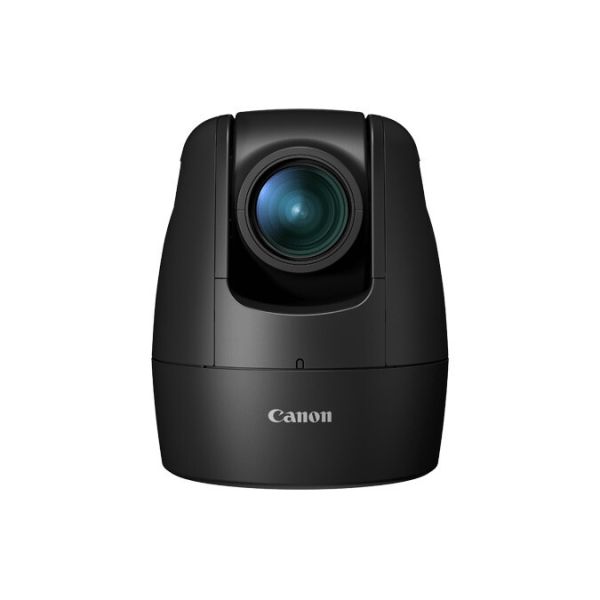

Canon VB-M50B Dome IP-beveiligingscamera Binnen 1280 x 960 Pixels Plafond

This lightweight 1.3MP PTZ camera boasts a large aperture Canon telephoto lens and a highly sensitive CMOS sensor that delivers exceptional detail in low-light conditions.

Long-range colour image capture with 1.3MP resolution

With its highly sensitive 1/3” CMOS sensor and advance imaging processing, the VB-M50B large aperture PTZ surveillance camera captures footage in sharp, high-quality 1.3MP resolution. Offering exceptional low-light performance, it’s well suited to crime prevention applications in urban surveillance and monitoring important infrastructure facilities.

Superb low-light performance even with full telephoto

The large aperture f/1.8 – 2.4 Canon 5x optical zoom lens captures outstanding levels of detail even with full telephoto applied. The Aspherical and UD-distortion suppression lens design helps prevent chromatic aberrations and achieves clear, high-resolution images from any distance. Enhanced Clear IR Mode offers mono images of greater definition and detail, day or night, while Motion Adaptive Noise Reduction dynamically controls noise levels to improve performance in low-light conditions.

Powerful Clear IR View Mode

The VB-M50B’s innovative Clear IR View Mode combines an IR Band Pass Filter (IRBPF) and new image processing capabilities to capture mono images that have superb definition and detail day and night. The IRBPF gathers greater volumes of IR light to reveal hidden details in distant views, while dedicated image processing techniques correct image blur – so you enjoy consistently clear monochrome images.

Enhanced Digital Zoom gets you closer to what matters

The VB-M50B’s Enhanced Digital Zoom improves image quality and extends the camera’s zoom capabilities. Once the camera’s optical zoom limit has been reached, Enhanced Digital Zoom substitutes images within low resolution streams with cropped images from higher resolutions, extending the camera’s magnification to enable powerful long-range monitoring while maximising image quality.

Multiple browser and device support

The VB-M50B extends your surveillance options by offering viewing and configuration from a wide range of browsers and mobile devices. The camera’s new firmware architecture is compatible with all popular web browsers and mobile devices. So you can set up your camera and view live images entirely within a mobile environment.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Soort*
IP-beveiligingscamera
Ondersteuning voor plaatsing*
Binnen
Connectiviteitstechnologie*
Bedraad
PTZ control
Ja
Vooraf ingestelde punten
Ja
Dag/nacht modus
Ja
Blootstelling type
Aperture voorgang AE, Auto, Handmatig, Sluiter-prioriteit AE
Aantal talen
10
Ondersteunde talen
Vereenvoudigd Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Russisch, Thais
Certificering
EN55032 B, FCC 15 B B, ICES-3/NMB-3 B, VCCI B, C-tick AS/NZS EN55032 B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN 60950-1, EN50130-4

Design

Vormfactor*
Dome
Montagewijze*
Plafond
Kleur van het product*
Zwart

Camera

Minimale belichting
0,04 Lux
Bereik kantelhoek
-90 - 15°
Draai-snelheid
300 °/sec
Pan bereik
-174 - 174°
Pan snelheid
300 °/sec
Witbalans
Auto, Daglicht, Fluorescerend, Halogeen, Handmatig, Kwiklamp, Sodium lamp
Camera sluitertijd
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 s

Beeldsensor

Omvang optische sensor
25,4 / 3 mm (1 / 3")
Progressive scan
Ja
Type beeldsensor*
CMOS

Lenssysteem

Zoomcapaciteit
Ja
Optische zoom
5x
Digitale zoom
20x
Automatisch scherpstellen
Ja
Maximum aperture number
2,4
Brandpuntbereik
17.7 - 88.5 mm

Nachtkijker

Nachtvisie*
Ja

Video

Maximum resolutie*
1280 x 960 Pixels
Totaal aantal megapixels*
1,3 MP
Videocompressieformaten
H.264
Ondersteunde grafische resoluties
320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960
Maximaal 30 frames per seconde
30 fps
Ruisonderdrukking
Ja
Automatische versterking control
Ja
Privézone maskeren
Ja
Beeldstabilisator
Ja

Audio

Audiosysteem full duplex
Ja
Stemcodecs
G.711

Netwerk

Ethernet LAN*
Ja
Ethernet interface type
Fast Ethernet
Netwerkstandaard
IEEE 802.1x
Ondersteunde netwerkprotocollen
IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Wifi*
Nee
Bekabelingstechnologie
10/100Base-T(X)
Aantal gebruikers
31 gebruiker(s)

Opslagmedia

Ingebouwde HDD*
Nee
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
SD, SDHC, SDXC

Poorten & interfaces

Microfoon, line-in ingang
Ja
Hoofdtelefoonuitgangen
1
Interface
RJ-45

Beveiliging

Password bescherming
Gebruiker
Video bewegings-detectie
Ja
Ondersteunde beveiligingsalgoritmen
EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS
Type waarschuwingsnotificatie
E-mail

Beheerfuncties

Web-gebaseerd management
Ja

Energie

Type stroombron*
Power over Ethernet (PoE)
AC-ingangsspanning
100-240 V
Vermogensverbruik (max)
11,2 W
Stroomverbruik (voeding via Ethernet (PoE))
9,8 W
Power over Ethernet (PoE)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 50 °C
Temperatuur bij opslag
-30 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 85 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Minimale systeemeisen

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Ondersteunde mobiele besturingssystemen
Android, iOS
Minimale RAM
2000 MB

Gewicht en omvang

Hoogte
157 mm
Diameter
12,9 cm
Gewicht
1,17 kg

Inhoud van de verpakking

Aantal cameras*
1

Overige specificaties

Geluidsdetectie
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85258900
