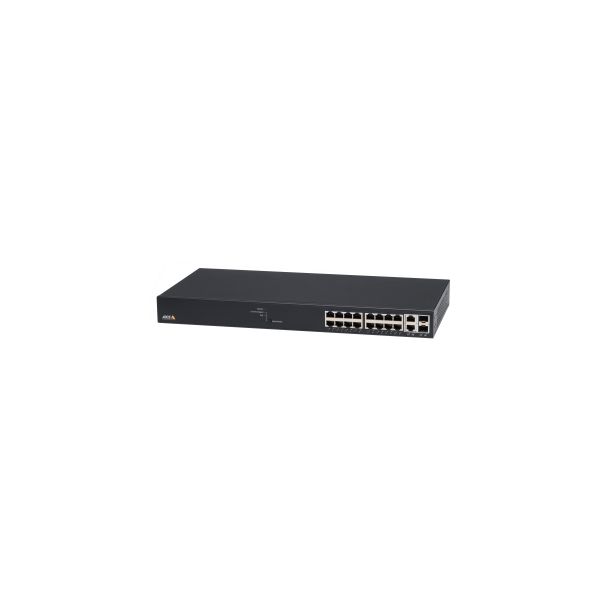

Axis 5801-693 netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Axis 5801-693, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Nog slechts 4 beschikbaar

Fabrikant Axis
MPN 5801-693
EAN 7331021055292
€ 748,00 excl. BTW

Axis 5801-693 netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.
  • 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 240 W; Gigabit switch; Intuitive graphic topology for system overview

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Fibre channel-poorten
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 802.1x, IEEE 802.3at
10G support*
Nee
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
Throughput
26,8 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Beveiliging

DHCP-functies
DHCP server, DHCP snooping
Access Control List (ACL)
Ja
Wachtwoordbeveiliging
Ja

Protocollen

Ondersteunde netwerkprotocollen
IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal

Design

Certificering
EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (Argentina), EAC, CE, ANATEL, JATE

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
442 mm
Diepte
211 mm
Hoogte
44 mm
Gewicht
3 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
