- 24 V DC IN
- Convert Ethernet to optical fiber
- Compatible with Axis network video products
- Support for 10/100 Mbps
- Two SFP slots and two RJ45 ports

From Ethernet to optical fiber
The media converter switch can be connected in a daisy chain network. The maximum number of cameras that can be connected in the daisy chain depends on the generated bit rate per camera. The limitations are the 100 Mbit link between camera and media converter switch, and the 1000 Mbit link between the media converter switches.
AXIS T8606 does not feature IGMP Snooping.

For long distance connections
Fiber optic connections are typically used in city surveillance, airports and other long distance installations, where lighting strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS T8606 for camera maintenance and control.

Easy conversion and installation

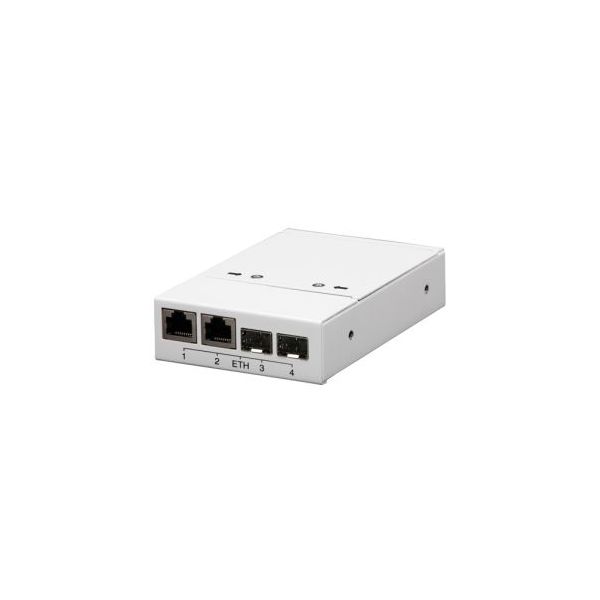

The media converter switch is compatible with all Axis network video products. The product connects to AXIS T8606 via RJ45, and the two SFP slots give installers the flexibility to connect the cameras cost-effectively to the network over long distances. The RJ45 connectors can also be used for connection to complementary cameras or temporarily to a laptop to service the system locally. AXIS T8606 can also fit AXIS T91A03 DIN Rail Clip A for easy DIN-mounted installation.
