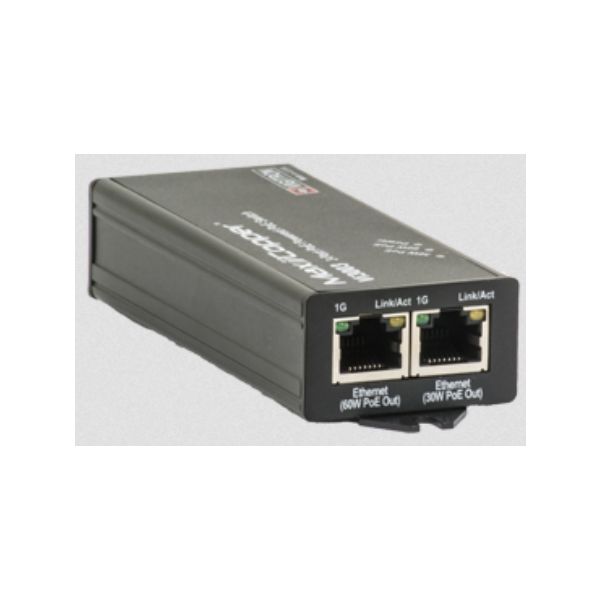

Barox VI-3103 netwerk-switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Aluminium
The Vi3103 is a 3-port Layer 2 Ethernet and PoE switch providing drop and insert capability for connecting several IP devices along a single cable run.
The Vi3103 provides a cost effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m). Multiple units can be cascaded to provide up to nine IP cameras to be connected to a single network switch port over distances of up 3,000 feet (909m).
Being developed for tasks with high data volume, this video-optimized swith is especially suitable for example for video over IP and video streaming. By means of PoE IP-cameras can be supplied through a data cable. With its compact design and reduced number of ports, this switch is ideal for smaller units or as a distance unit in a larger network.
The Vi3103 provides a cost effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m). Multiple units can be cascaded to provide up to nine IP cameras to be connected to a single network switch port over distances of up 3,000 feet (909m).
Being developed for tasks with high data volume, this video-optimized swith is especially suitable for example for video over IP and video streaming. By means of PoE IP-cameras can be supplied through a data cable. With its compact design and reduced number of ports, this switch is ideal for smaller units or as a distance unit in a larger network.
- PoE Powered Switch 60W/30W
- PoE 802.1af, 30W (at) and 60W
- 3 x 10/100/1000TX
- enlarged operation temperature
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beheerfuncties
Switch type*
Managed
Switch-laag
L2
Traffic-classificatie
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
3
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Fast Ethernet (koperen) ports kwantiteit
3
Netwerk
Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Ondersteundende kabel types
Cat5, Cat5e, Cat6
Full duplex
Ja
Datastroombeheer
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4096
Data-uitwisseling
Jumbo Frames ondersteuning
Ja
Jumbo frames
9600
Design
Rack-montage*
Nee
Kleur van het product
Aluminium
Materiaal behuizing
Aluminium
LED-indicatoren
Ja
Certificering
CE
RoHS, WEEE
Energie
Stroomverbruik (typisch)
1,5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
3
Stroom via Ethernet (PoE)
56 V
Vermogen per poort Power over Ethernet (PoE)
30 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-10 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Gewicht en omvang
Breedte
46 mm
Diepte
55 mm
Hoogte
25 mm
