be quiet! Dark Base 700, Midi Tower, PC, Zwart, ATX, EATX, micro ATX, Mini-ITX, Acrylonitrielbutadieenstyreen (ABS), Aluminium, Staal, Gehard glas, Multi

Ruim op voorraad

Fabrikant Be Quiet
MPN BGW23
EAN 4260052185742

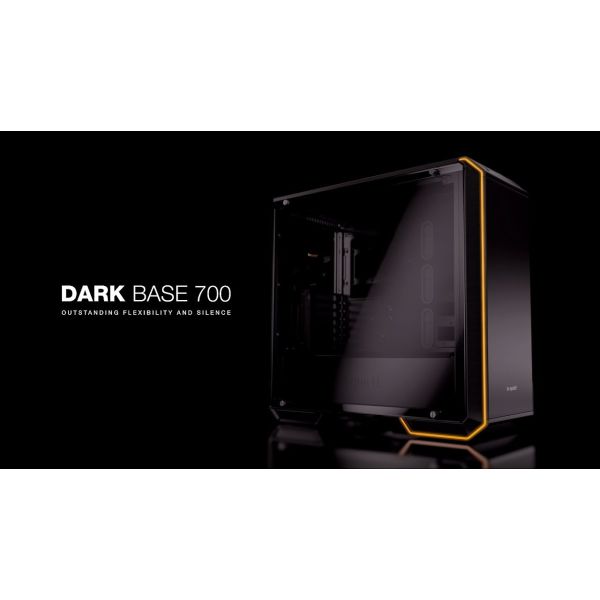

be quiet! Dark Base 700 Midi Tower Zwart

Outstanding flexibility and silence
The be quiet! Dark Base 700 midi-tower case offers unrivaled flexibility with impeccable cooling and silence features. Numerous customization options for component and cable layout, illumination and cooling make every PC one of a kind.

SUPER VERSATILE MOTHERBOARD TRAY
Adapts to your specific needs

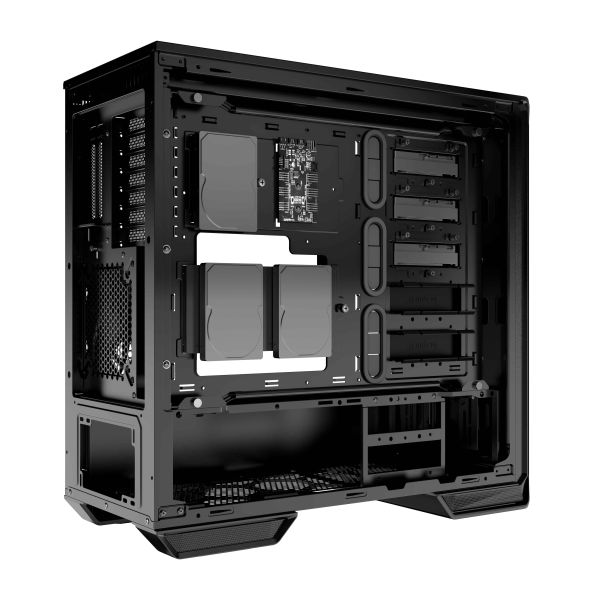

The motherboard tray can be installed alongside the left panel in an inverted layout with an amended airflow. It is also removable for use as a bench table.

MODULAR HDD SLOTS
Generous space for your setups

Very flexible installation options thanks to three repositionable single HDD slots. You have seven possibilities for installing the HDDs – two of these hidden behind the PSU shroud. The practical slot covers serve to hide any unused HDD slots and keep the inner workings neat and tidy. This enables you to create systems that are just as individual as you are yourself.

EYE-CATCHING FROM INSIDE AND OUTSIDE
Multi-mode RGB LEDs and elegant side window

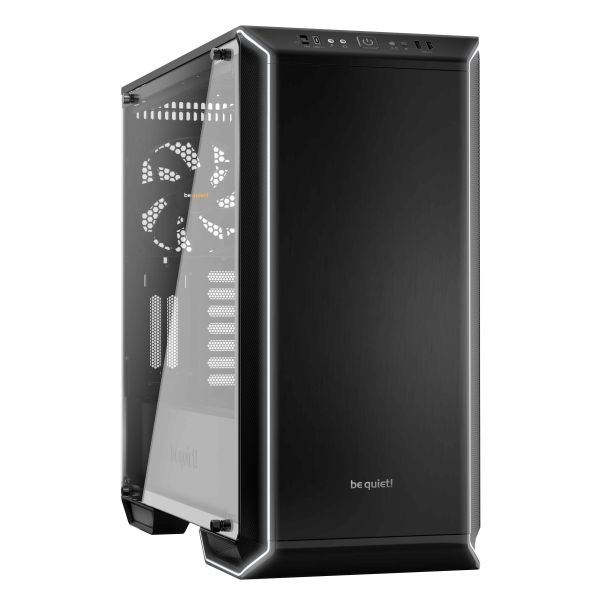

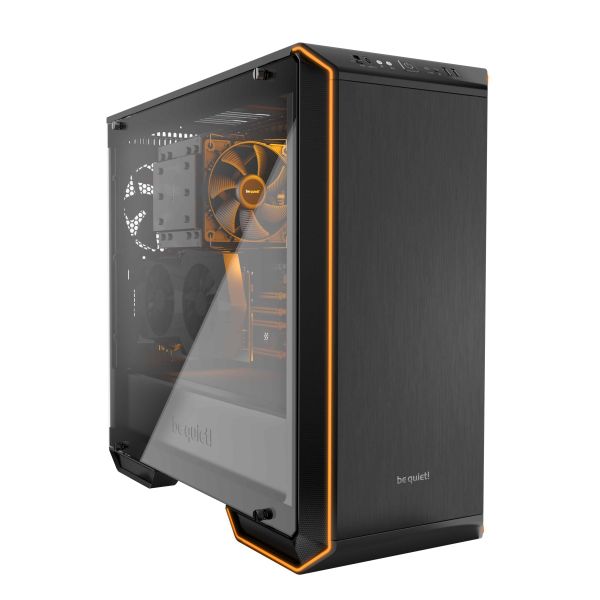

The case is equipped with an elegant, fully windowed side panel that is made of tinted and tempered glass. The eye-catching exterior RGB LED illumination on the front panel comes in six switchable colors and three modes. LED synchronization with your motherboard or RGB controller is also an option.

SILENT WINGS 3
Impeccable cooling and silence

The two virtually inaudible Silent Wings 3 140mm PWM fans are equipped with a smooth-running 6-pole motor, durable fluid-dynamic bearing and an airflow-optimized fan blade. The frame has funnel-shaped air inlets that generate high air pressure. When set to Performance Mode the fans are able to achieve an impressive 1,600rpm.

DUAL RAIL FAN CONTROLLER
Creating separate cooling zones

The six PWM fan connectors are divided over two rails, and each is switchable between Silence and Performance Mode. This makes it possible to create two cooling zones that can be controlled by just the front panel switch. If you want all fans to run at the same speed, you can switch both channels to the same mode.

INGENIOUS COOLING CONCEPT
Optimized for overclocked and water-cooled PCs

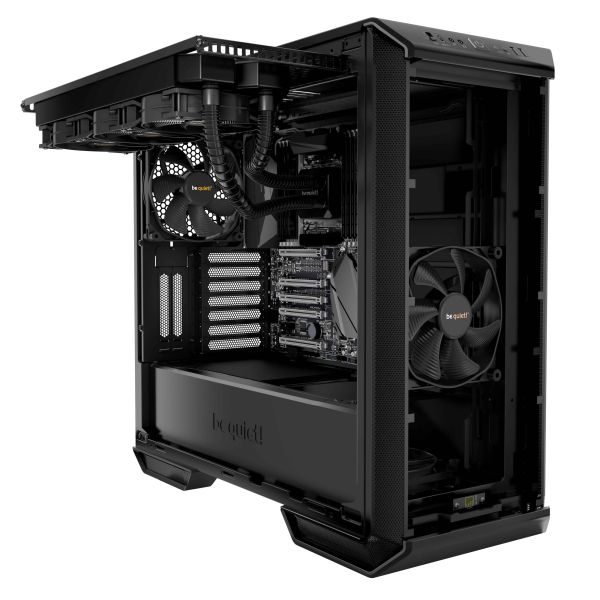

The Dark Base 700 creates an effective airflow with noise dampened vents that may be boosted by up to seven additional fans. There are also three areas provided for water coolers up to 360mm. A clever feature is the detachable top bracket on which you can install radiators and fans before mounting them as a complete unit into the case.

VERY FUNCTIONAL PSU SHROUD
Offering unexpected possibilities

The PSU shroud offers you a variety of solutions – not just for hiding the PSU and to keep the system neat and tidy. The cover plates are separately detachable, making it possible to install fans at the bottom of the case or the top of the PSU shroud and leave enough space for a radiator in the front.

SMART I/O PORT
State-of-the-art technology for your system

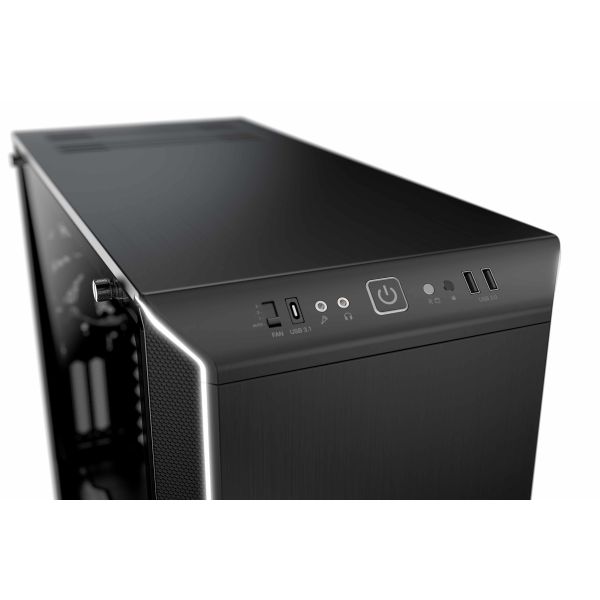

The front I/O port provides you with some convenient features for your high-end PC. A connector of USB 3.1 Type C Gen 2 is supported. The dual rail PWM fan controller is controlled by the slider control on the front panel, with four possible settings to determine the speed of your fans. It can be set to PWM hub or operate in a manual 3-step mode. There is also a switch on the front panel to control the exterior LEDs.
  • Motherboard tray and HDD slots with enhanced possibilities for individual requirements
  • Two be quiet! Silent Wings 3 140mm PWM fans
  • 4-step dual-rail fan controller is switchable between Silence and Performance modes
  • Ready for radiators up to 360mm
  • PSU shroud, ingenious cable routing and HDD slot covers for a neat interior
  • Fully windowed side panel from tinted and tempered glass
  • Exterior RGB LEDs with six switchable colors and motherboard control option
  • Three-year manufacturer’s warranty
  • German product conception, design and quality control

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Acrylonitrielbutadieenstyreen (ABS), Aluminium, Staal, Gehard glas
Vormfactor*
Midi Tower
Soort*
PC
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, EATX, micro ATX, Mini-ITX
Aantal 3.5" bays*
7
Aantal 2.5" bays
17
Aantal uitbreidingssleuven
9
Zijraam
Ja
Belichting
Ja
Kleur van de verlichting
Multi
Verlichtingslocatie
Voorkant
Bovenpaneel
Ja
Maximum CPU cooler hoogte
18 cm
Maximum grafische kaart lengte
43 cm
Maximum PSU lengte
28,5 cm
Certificering
CE, RoHS

Power voorraad

Vermogenstoevoer locatie
Bodem
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
2
Voorste ventilators ondersteunende diameters
120,140 mm
Geïnstalleerde ventilators achterkant
1x 140 mm
Maximaal aantal ventilators bovenkant
3

Koeling

Bovenste ventilators ondersteunende diameters
120,140 mm
Maximaal aantal ventilators onderkant
1
Ondersterste ventilators ondersteunende diameters
120,140 mm
Maximum luchtstroom
77,57 cfm
Geluidsniveau (hoge snelheid
28,1 dB
Nominale spanning ventilator
12 V
Nominale stroom ventilator
0,5 A
Stroomverbruik ventilatie
1,68 W
Vloeibare koelingscapaciteit
Ja
Ondersteunde afmetingen voorste radiator
120,140,240,280,360 mm
Ondersteunde afmetingen achterste radiator
120,140 mm
Ondersteunde afmetingen bovenste radiator
120,240,360 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"

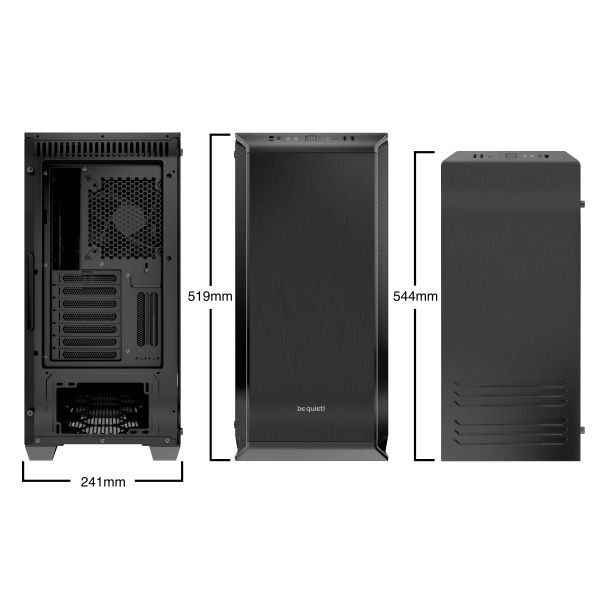

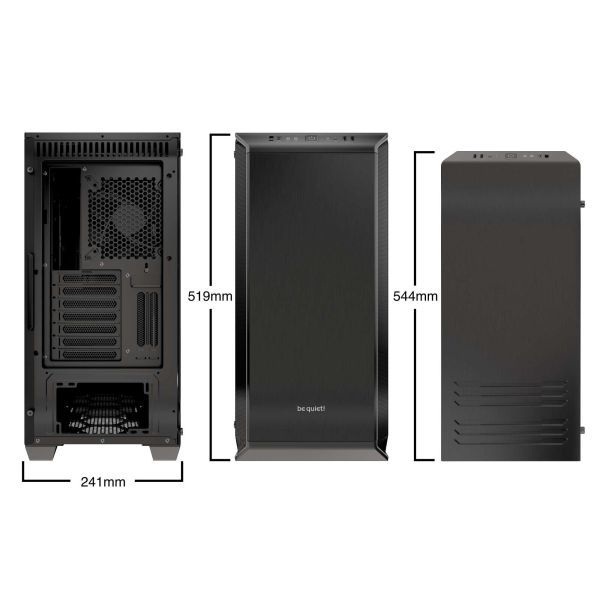

Gewicht en omvang

Breedte
241 mm
Diepte
544 mm
Hoogte
519 mm
Gewicht
13,2 kg

Verpakking

Breedte verpakking
325 mm
Diepte verpakking
580 mm
Hoogte verpakking
640 mm
Gewicht verpakking
14,4 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Backplanes ondersteund
Ja
Fan connector
4-pin
