be quiet! Silent Base 601 Window, Midi Tower, PC, Zwart, Oranje, ATX, EATX, micro ATX, Mini-ITX, Acrylonitrielbutadieenstyreen (ABS), SECC, Gehard glas, HDD

Niet op voorraad

Fabrikant Be Quiet
MPN BGW25
EAN 4260052187029

be quiet! Silent Base 601 Window Midi Tower Zwart, Oranje

Excellent silence and usability

be quiet! Silent Base 601 Window Orange delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

NOISE DAMPENING VENTS
Minimize noise and maximize airstream

The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.

SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence

The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

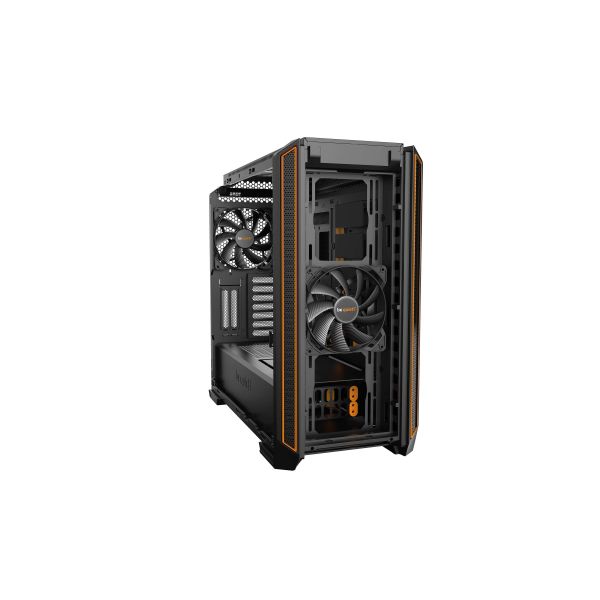

PRE-INSTALLED PURE WINGS 2
Whisper-quiet operation

Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans.

FUNCTIONAL PSU SHROUD
Offering a neat interior

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

CONVENIENT TO HANDLE
Easy access for all kinds of modifications

The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.

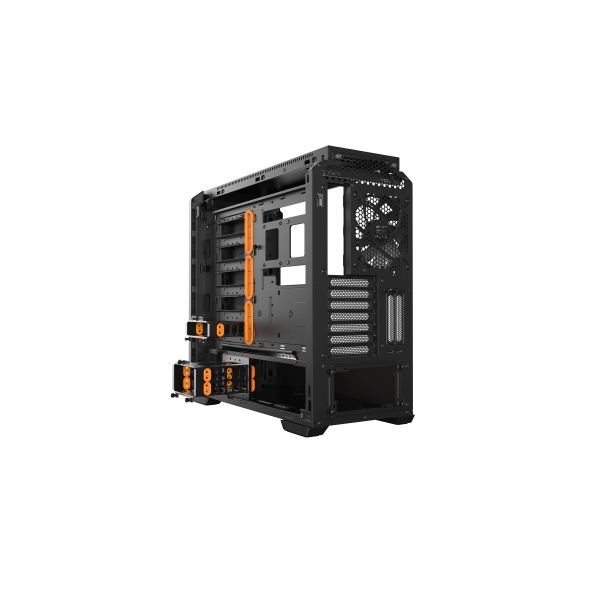

GENEROUS SPACE, SMART DESIGN
Designed for all kinds of high-end hardware

Despite its compact design the Silent Base 601 Window provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.

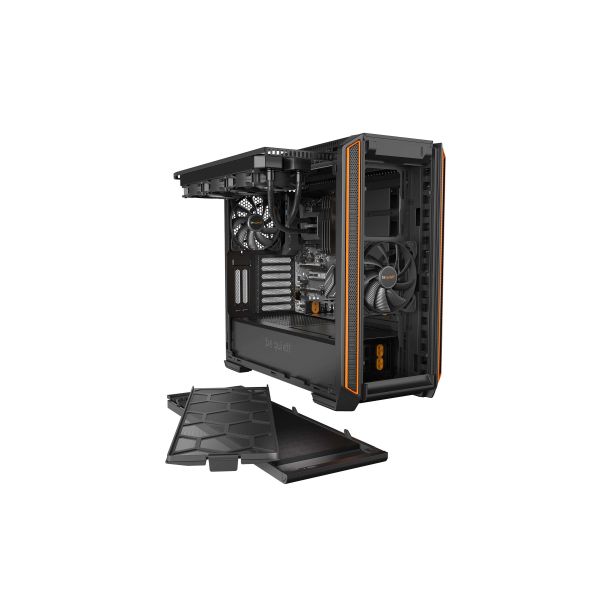

EASY INSTALLATION OF RADIATORS
Optimized for water-cooled systems

With its optimized design Silent Base 601 Window is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.

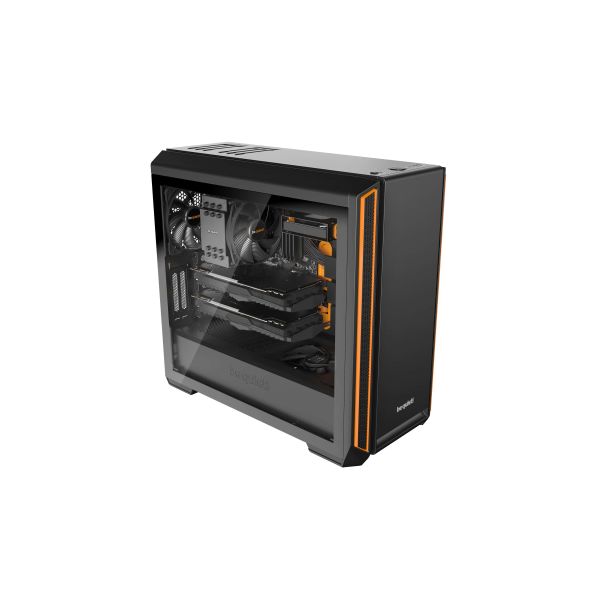

GLASS WINDOW
A perfect view inside your PC

The elegant, windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
  • Noise dampening vents provide excellent air permeability with maximum silence
  • Extra thick insulation mats of 10mm in the front, top and sides
  • Two preinstalled Pure Wings 2 140mm fans ensure a silent airflow
  • 3-step fan controller caters for up to three fans
  • PSU shroud and smart HDD slot covers provide a neat interior
  • Fast and secure detachment of the side panels with push pins
  • The power supply can be easily installed from the back of the case
  • Detachable top bracket allows easy installation of radiators up to 360mm
  • Generous dimensions make sure even E-ATX motherboards, large coolers and graphics cards fit well
  • Side panel made of tinted and tempered glass
  • Three years manufacturer’s warranty
  • Product conception, design and quality control in Germany

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Acrylonitrielbutadieenstyreen (ABS), SECC, Gehard glas
Vormfactor*
Midi Tower
Soort*
PC
Kleur van het product*
Zwart, Oranje
Supported motherboard form factors*
ATX, EATX, micro ATX, Mini-ITX
Aantal 3.5" bays*
3
Aantal 2.5" bays
6
Aantal uitbreidingssleuven
9
Zijraam
Ja
Geharde glaspla(a)t(en)
Ja
Ingebouwde luidsprekers
Nee
Anti-stof filter
Ja
LED-indicatoren
HDD
Maximum CPU cooler hoogte
18,5 cm
Maximum grafische kaart lengte
44,9 cm
Maximum PSU lengte
28,8 cm
Certificering
CE, RoHS

Power voorraad

Vermogenstoevoer inclusief*
Nee
Ondersteunde vormfactoren stroomvoorziening
ATX, PS2

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal USB 2.0-poorten*
1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
2
Voorste ventilators ondersteunende diameters
120,140 mm

Koeling

Geïnstalleerde ventilators achterkant
1x 140 mm
Maximaal aantal ventilators bovenkant
3
Bovenste ventilators ondersteunende diameters
120,140 mm
Maximum luchtstroom
61,2 cfm
Geluidsniveau (hoge snelheid
18,8 dB
Nominale stroom ventilator
0,12 A
Stroomverbruik ventilatie
1,44 W
Ondersteunde afmetingen voorste radiator
120,140,240,280,360 mm
Ondersteunde afmetingen achterste radiator
120,140 mm
Ondersteunde afmetingen bovenste radiator
120,240,360 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"
Geïntegreerde geheugenkaartlezer
Nee

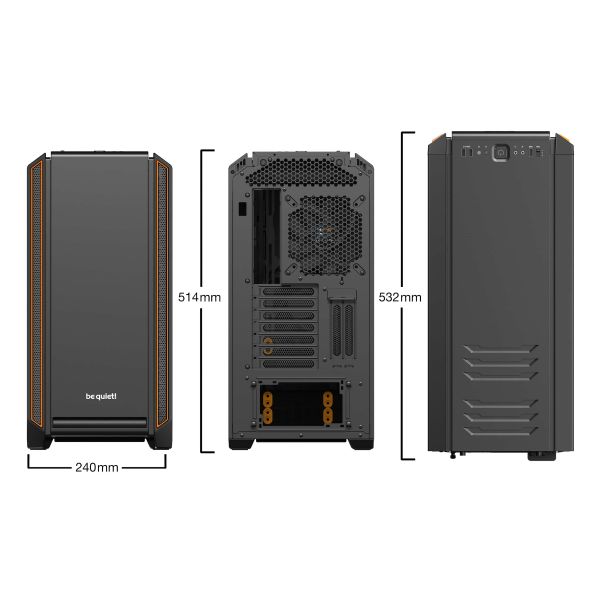

Gewicht en omvang

Breedte
240 mm
Diepte
532 mm
Hoogte
514 mm
Gewicht
11,2 kg

Verpakking

Breedte verpakking
325 mm
Diepte verpakking
566 mm
Hoogte verpakking
615 mm
Gewicht verpakking
13,2 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Geharde glaspla(a)t(en)
4 mm
Fan connector
3-pin
