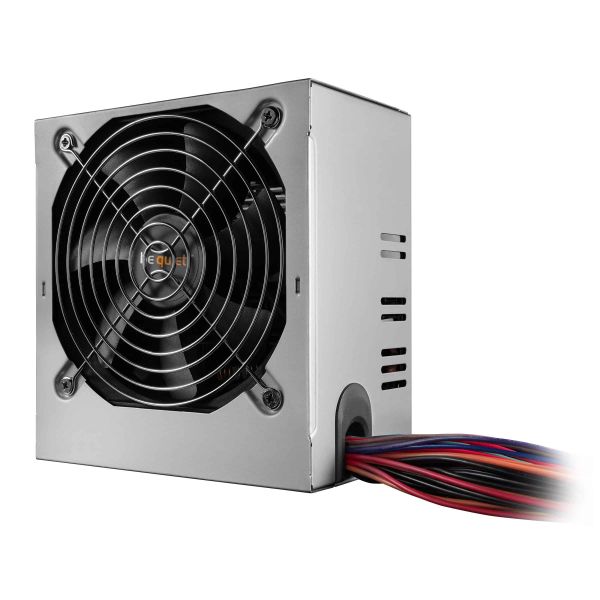

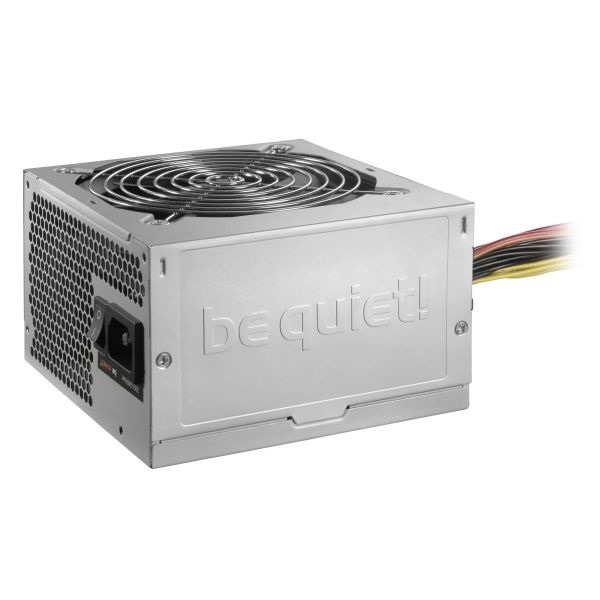

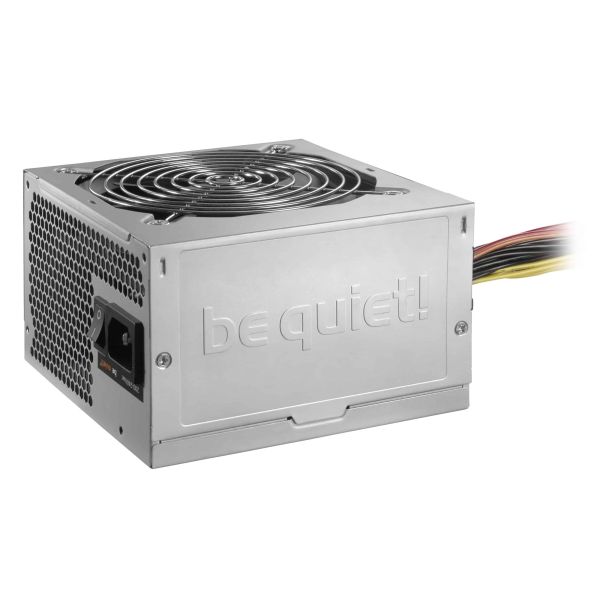

be quiet! System Power B9 power supply unit 350 W 20+4 pin ATX ATX Grijs

be quiet! System Power B9, 350 W, 200 - 240 V, 50 Hz, 3 A, Actief, 103 W

Niet op voorraad

Fabrikant Be Quiet
MPN BN207
EAN 4260052185995
€ 68,00 excl. BTW

be quiet! System Power B9 power supply unit 350 W 20+4 pin ATX ATX Grijs

Proven Reliability and Good Efficiency

Specially designed by be quiet! with the price-concious PC builder in mind: System Power B9 350W (bulk) offers renowned be quiet! performance and quietness and makes it possible for you to build cost-effective and reliable systems.
  • Production-optimized bulk packaging
  • Rock-solid stability with two strong 12V-rails
  • One PCI express connector for GPU card support
  • Temperature-controlled 120mm fan reduces system noise
  • Low stand-by drain of less than 0.13 watts
  • Certified 80PLUS® efficiency (up to 87%)
  • Complete suite of top safety features
  • Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
  • Supports latest Intel® and AMD™ processors
  • Product conception, design and quality control in Germany

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
350 W
AC-ingangsspanning*
200 - 240 V
AC-ingangsfrequentie
50 Hz
Stroom
3 A
Power factor
0,95
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
103 W
Gecombineerd vermogen (+12V)
324 W
Gecombineerd vermogen (+5V)
103 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
12,5 W
Max huidige output (+3.3V)
19 A
Max output current (+12V1)
20 A
Max output current (+12V2)
16 A
Max huidige output (+5V)
15 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
2,5 A
Houd-tijd
17 ms
Efficientie
87 procent
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
45 cm
Aantal SATA power connectors
4
Aantal PATA power aansluiters
2
Lengte SATA-stroomkabel
400 mm
PCI Express power connectors (6+2 pin)
1
Lengte PCI Express-stroomkabel
45 cm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
45 cm

Poorten & interfaces

Bekabelingstype
Niet-modulair

Prestatie

80 PLUS certificatie*
80 PLUS
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX
ATX version
2.4
Stille modus
Ja
Certificering
CE, CB, TÜV, RCM, CU

Design

Kleur van het product
Grijs
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)
Belichting
Nee
Aan/uitschakelaar
Ja

Inhoud van de verpakking

Meegeleverde kabels
AC

Gewicht en omvang

Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm
Gewicht
1,6 kg

Technische details

Duurzaamheidscertificaten
RoHS, ENERGY STAR

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Geluidsniveau (stille modus, <30%)
12,1 dB
Geluidsniveau (stille modus, 50%)
12,3 dB
Geluidsniveau (volle belastingmode, 100%)
24,9 dB
