Broadcom P411W-32P interfacekaart/-adapter Intern SFF-8654

Broadcom P411W-32P, PCIe, SFF-8654, Low-profile, Grijs, 50000 uur, FCC 47 CFR 15 B, B; CES -003, B; CNS 13438; VCCI V-3; AS/NZS CISPR 22; RRA no 2013-24 & 25;...

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Broadcom
MPN 05-50054-00
EAN 0830343007530
€ 1.162,00 excl. BTW

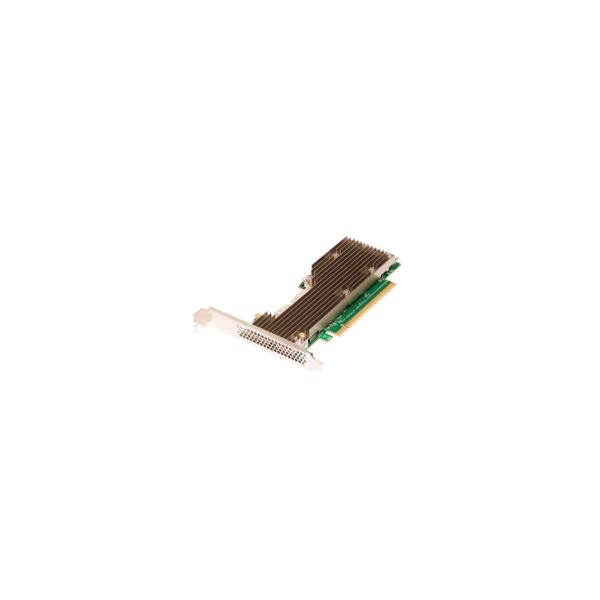

Broadcom P411W-32P interfacekaart/-adapter Intern SFF-8654

The P411W-32P adapter leverages Broadcom’s world-class board design, PEX88048 PCIe Gen 4.0 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom MegaRAID adapters and HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features.
  • x16 PCIe Gen 4 Host Interconnect
  • Up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect
  • SRIS and REFCLK support
  • SFF-9402 compliant connector pinout
  • Downstream port containment
  • Read tracking
  • Surprise Add and Remove
  • Synthetic Hierarchy generation
  • FRU Inventory support
  • Hardware Secure Boot
  • LED Management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
SFF-8654
Uitbreidingskaart vormfactor
Low-profile

Design

Intern*
Ja
Kleur van het product
Grijs
Mean time between failures (MTBF)
50000 uur
Certificering
FCC 47 CFR 15 B, B; CES -003, B; CNS 13438; VCCI V-3; AS/NZS CISPR 22; RRA no 2013-24 & 25; EN55022/EN55024; EN/IEC/UL 60950; RoHS; WEEE.

Energie

Stroomverbruik (typisch)
21 W
Spanning
12 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C

Eisen aan de omgeving

Temperatuur bij opslag
-45 - 105 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
68,9 mm
Diepte
155,9 mm

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
