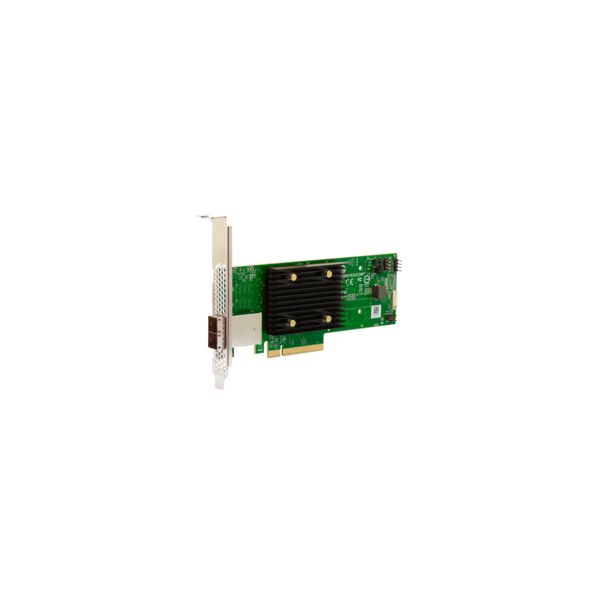

Broadcom HBA 9500-8e interfacekaart/-adapter Intern SAS
Broadcom HBA 9500-8e, PCIe, SAS, Volledige hoogte / Laag profiel, Groen, Grijs, 5000000 uur, Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),...
Ruim op voorraad
Fabrikant
Broadcom
MPN
05-50075-01
EAN
0830343007523
€ 483,00
excl. BTW
€ 483,00
excl. BTW
excl. BTW
Broadcom HBA 9500-8e interfacekaart/-adapter Intern SAS
PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options.
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
- Connects up to 1024 SAS/SATA devices or 32 NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Support critical applications with the bandwidth of PCIe 4.0 connectivity
- Universal Bay Management (UBM) Ready
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Hostinterface*
PCIe
Output interface*
SAS
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
NVMe
Ja
Externe mini-SAS-HD-poorten
2
Design
Intern*
Ja
Kleur van het product
Groen, Grijs
Mean time between failures (MTBF)
5000000 uur
Certificering
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Energie
Stroomverbruik (typisch)
6,12 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Gewicht en omvang
Breedte
167,6 mm
Diepte
68,9 mm
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
