Broadcom HBA 9500-16i interfacekaart/-adapter Intern SAS, SATA

Broadcom HBA 9500-16i, PCIe, SAS, SATA, Volledige hoogte / Laag profiel, Groen, Grijs, 5000000 uur, Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),...

Ruim op voorraad

Fabrikant Broadcom
MPN 05-50134-00
EAN 0830343007646
€ 673,00 excl. BTW

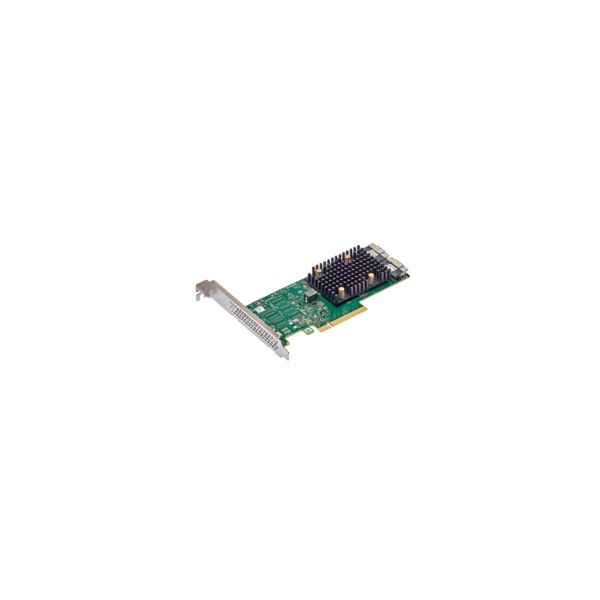

Broadcom HBA 9500-16i interfacekaart/-adapter Intern SAS, SATA

Create endless design flexibility with Tri-Mode connectivity and NVMe performance benefits with PCIe 4.0 HBA
The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.
  • Connects up to 1024 SAS/SATA devices or 32 NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe® 4.0 connectivity
  • Universal Bay Management (UBM) Ready

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
SAS, SATA
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
NVMe
Ja

Design

Intern*
Ja
Kleur van het product
Groen, Grijs
Mean time between failures (MTBF)
5000000 uur
Certificering
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

Kenmerken

Data transfer snelheid (max)
12 Gbit/s
Plug and play
Ja

Energie

Stroomverbruik (typisch)
8,9 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Andere ondersteundende systemen
Ja

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
155 mm
Diepte
68 mm

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
