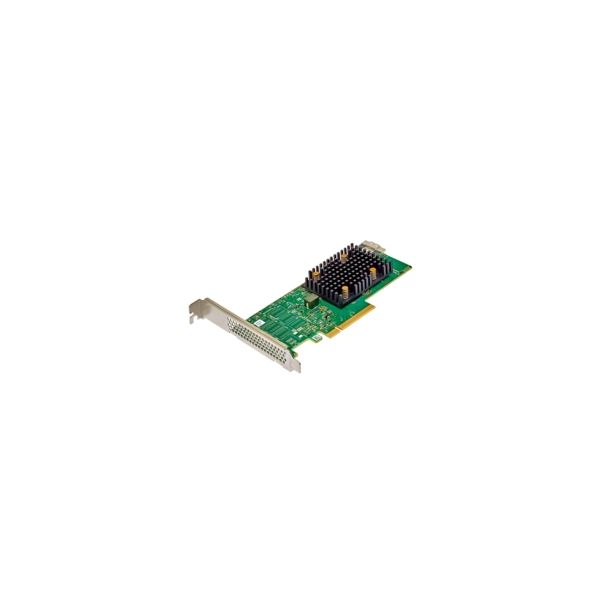

Broadcom HBA 9500-8i interfacekaart/-adapter Intern SAS, SATA

Broadcom HBA 9500-8i, PCIe, SAS, SATA, Volledige hoogte / Laag profiel, Groen, Grijs, 5000000 uur, Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),...

Nog slechts 9 beschikbaar

Fabrikant Broadcom
MPN 05-50134-01
EAN 0830343007653
€ 474,00 excl. BTW

Broadcom HBA 9500-8i interfacekaart/-adapter Intern SAS, SATA

PCIe Gen 4.0 HBA provides high bandwidth and unprecedented flexibility to today’s expanding data centers with Tri-Mode connectivity and NVMe devices
The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
  • Connects up to 1024 SAS/SATA devices or 32 NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe 4.0 connectivity
  • Universal Bay Management (UBM) Ready

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
SAS, SATA
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
NVMe
Ja

Design

Intern*
Ja
Kleur van het product
Groen, Grijs
Mean time between failures (MTBF)
5000000 uur
Certificering
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

Kenmerken

Data transfer snelheid (max)
12 Gbit/s
Plug and play
Ja

Energie

Stroomverbruik (typisch)
5,96 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Andere ondersteundende systemen
Ja

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
155 mm
Diepte
68 mm

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
