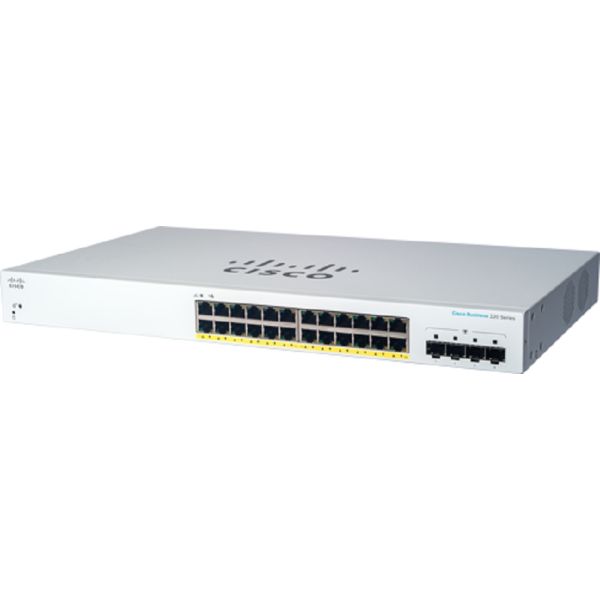

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Wit

Cisco CBS220-24P-4G, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Nog 17 beschikbaar (levering verwacht binnen 3 dagen)

Fabrikant Cisco
MPN CBS220-24P-4G-EU
EAN 0889728344685
€ 473,00 excl. BTW

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Wit

Simple, affordable business networking
The Cisco Business 220 Series Smart Switches are simple and affordable smart switches for business-class networks. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Cisco Small Business Support Service
Get software updates, extended access to the Cisco Small Business Support Center, and expedited hardware replacement if you need it. The Cisco Small Business Support Service helps you protect your investment and get added value from Cisco Business products. The service is delivered by Cisco and backed by your Cisco partner.

Small business networking solutions
Operate your network with simple, flexible, and highly secure solutions specifically designed for the small business.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
IP routing
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
Verzending snelheid
41,66 Mpps
MAC-adrestabel*
8192 entries
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet buffergeheugen
4,1 MB

Beveiliging

DHCP-functies
DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SSH, SSH-2, SSL/TLS
MAC adres filtering
Ja
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja

Beveiliging

Authenticatie type
IEEE 802.1x, RADIUS
Algoritmen wachtrijplanning
Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
8192 entries

Protocollen

Beheerprotocollen
SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Wit
Reset button
Ja
LED-indicatoren
Ja
Aantal ventilatoren
1 ventilator(en)

Prestatie

Type processor
Ja
Intern geheugen
256 MB
Flash memory
64 MB
Upgraden van firmware mogelijk
Ja

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Warmtedissipatie
833,59 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
203 mm
Hoogte
44 mm
Gewicht
2,75 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
