Productinformatie
The Cisco® Small Form-Factor Pluggable (SFP), Enhanced Small Form-Factor Pluggable (SFP+), and X2 devices for use on the Cisco MDS 9000 Family of products are hot-swappable transceivers that plug into ports on the Cisco MDS 9000 Family director switching modules and fabric switches. These transceivers give users the flexibility to choose different cabling types and distances on a port-by-port basis.

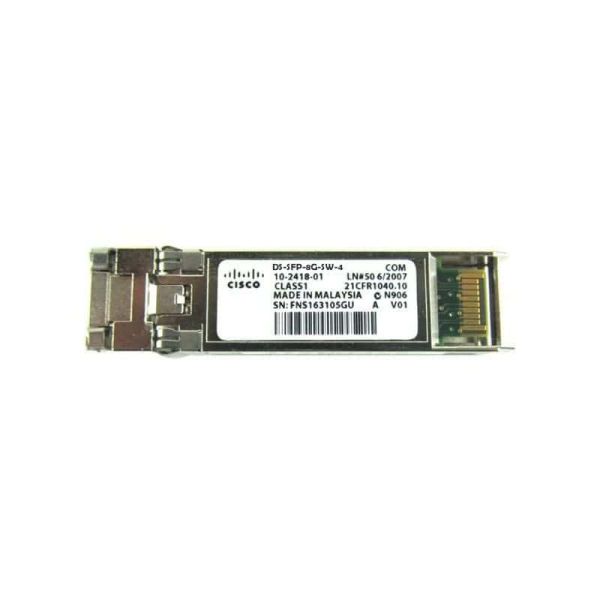

Cisco 8-Gbps Fibre Channel SFP+ Modules
Cisco 8-Gbps Fibre Channel SFP+ modules (Figure 3) provide Fibre Channel connectivity for the 2/4/8‑Gbps ports on the MDS 9000 Family platform. Three types are available: the Cisco Fibre Channel Shortwave SFP+ (part number DS-SFP-FC8G-SW), the Cisco Fibre Channel Longwave SFP+ (part number DS-SFP-FC8G-LW), and the Cisco Fibre Channel Extended Reach SFP+ (part number DS-SFP-FC8G-ER). Each offers 2/4/8-Gbps autosensing Fibre Channel connectivity.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Netwerk
Soort aansluiting | SFP+ |
---|---|
Overdrachtssnelheid (max) | 8000 Mbit/s |
Vezel-optische connector | LC |
SFP transceiver type | SW |
Overdrachtssnelheid (max) | 8000 Mbit/s |
Technische details
Ethernet LAN | Nee |
---|
data storage devices
Hot-swap | Ja |
---|---|
Golflengte | 850 nm |
Soort kabel | Vezel-optiek |
Vezelkabel diameters ondersteund | 50/125,62.5/125 µm |
Tx vermogen (max) | -1,3 dBmW |
Compatibele producten | Cisco MDS 9000 |
Tx vermogen (min) | -8,2 dBmW |
Kleur van het product | Roestvrijstaal |
Multi-mode glasvezelkabel (MMF) ondersteund | Ja |
Kleur van het product | Roestvrijstaal |
SFP transceiver type | Vezel-optiek |
SFP-zendernorm | SW |
Eisen aan de omgeving
Temperatuur, in bedrijf | 0 - 70 °C |
---|---|
Temperatuur bij opslag | -40 - 85 °C |
Relatieve luchtvochtigheid, in bedrijf | 10 - 80 procent |
Luchtvochtigheid bij opslag | 10 - 85 procent |
Gewicht en omvang
Breedte | 13,4 mm |
---|---|
Diepte | 56,5 mm |
Hoogte | 8,5 mm |
Inhoud van de verpakking
Aantal inbegrepen producten | 4 stuk(s) |
---|
