Cisco GLC-ZX-SM-RGD= netwerk media converter 1550 nm

€ 3.233,00

Snel overzicht

1000BASE-ZX extended distance; rugged

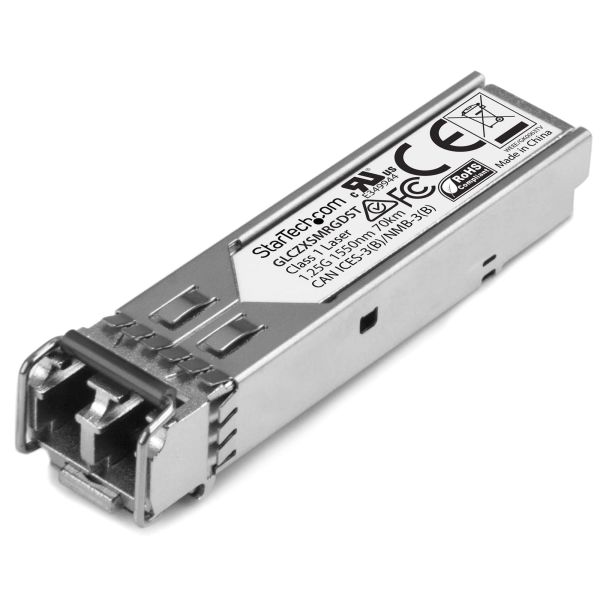

Cisco GLC-ZX-SM-RGD= netwerk media converter 1550 nm

Dubbelklik op de afbeelding voor groot formaat

Uitzoomen
Inzoomen

Meer afbeeldingen

Productinformatie

Cisco GLC-ZX-SM-RGD=. Bekabelingstechnologie: 1000BASE-ZX. Connectiviteitstechnologie: Bedraad. Maximaal bereik: 70000 m, Golflengte: 1550 nm. Veiligheid: Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1. Interface: SFP, Aansluiting(en): LC/PC, Fiber type: SMF

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

1000BASE-ZX SFP for Long-Reach Single-Mode Fibers
The 1000BASE-ZX SFP operates on standard single-mode fiber-optic link spans of up to approximately 70 km in length. The SFP provides an optical link budget of 23 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber (SMF) are used, it might be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. A 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the SFP at each end of the link whenever the fiber-optic cable span loss is less than 8 dB.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie Bedraad

data storage devices

Golflengte 1550 nm
Maximaal bereik 70000 m
Plug and play Ja

Eisen aan de omgeving

Temperatuur, in bedrijf -40 - 85 °C

Certificaten

Veiligheid Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1

Overige specificaties

Bekabelingstechnologie 1000BASE-ZX
Aansluiting(en) LC/PC
Interface SFP
Fiber type SMF
