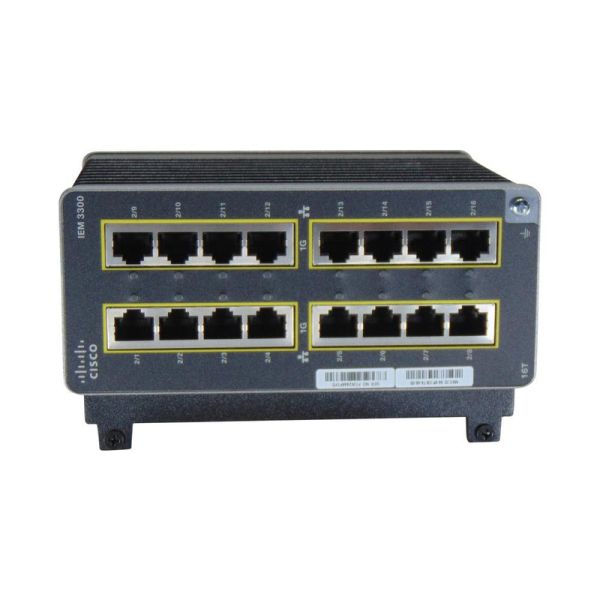

Cisco Catalyst IE3300 Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Cisco Catalyst IE3300, Managed, L2, Gigabit Ethernet (10/100/1000)

Nog slechts 4 beschikbaar

Fabrikant Cisco
MPN IEM-3300-16T=
EAN 0889728205030
€ 2.445,00
€ 2.302,00 excl. BTW

Cisco Catalyst IE3300 Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Cisco Catalyst IE3300 Rugged Series features full Gigabit Ethernet with a modular, optimized design. Expandable up to 26 ports in a compact form factor, these rugged network switches are optimized for size, power and performance. They can deliver up to 24 ports of PoE/PoE+ (power budget of 360 W shared across 24 port), and bring Cisco intent-based networking to Industrial Ethernet applications.

Modular, versatile design
The Cisco Catalyst IE3300 Rugged Series offers seven modules with copper, fiber, and PoE options. The platform delivers the flexibility to adapt to your growing connectivity needs and help future-proof your investments.

High-density PoE+ managed switch
Reduce complexity with one cable for connectivity and power. The Cisco Catalyst IE3300 Rugged Series provides high-density industrial switching that power up to 24 ports of PoE/PoE+ (power budget of 360 W shared across 24 port), making them an excellent choice to power Wi-Fi access points, IP cameras, and sensors.

Fast speed, all Gigabit Ethernet switch
Accelerate digital transformation and upgrade your IoT infrastructure to Gigabit speeds. The Cisco Catalyst IE3300 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3000, the Cisco Catalyst IE3300 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments..

Open, extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with open and standards-based APIs and built-in multilayer security and trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.
  • Expansion Module
  • 16 Copper ports

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja

Data-uitwisseling

MAC-adrestabel*
8000 entries
Aantal wachtrijen
8
Statische route
Ja

Beveiliging

DHCP-functies
DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-vermeldingen
1000
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMPv3, SSH
MAC adres filtering
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie, Webgebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja
DIN rail bevestiging
Ja

Prestatie

Type geheugen
DRAM
Intern geheugen
4000 MB
Flash memory
1500 MB
Mean time between failures (MTBF)
1594210 uur

Energie

DC voltage input
9.6 - 60 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
86,4 mm
Diepte
134,6 mm
Hoogte
152,4 mm
Gewicht
1,22 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
