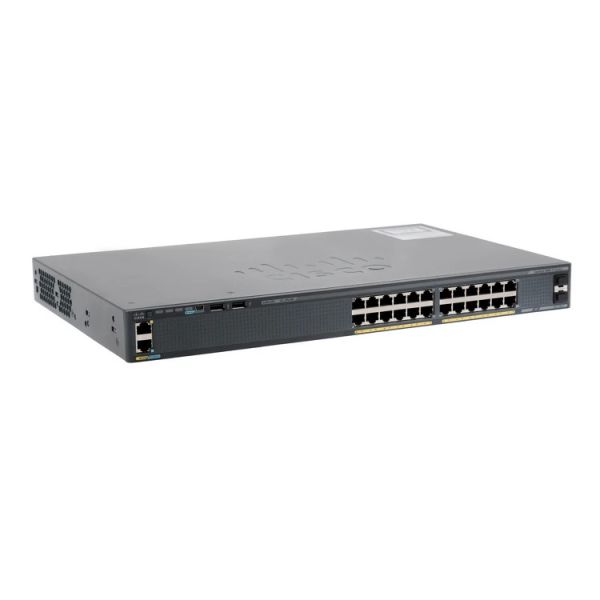

Productinformatie
Inspringen op dynamische marktomstandigheden.
Met de access switches van Cisco kan uw netwerk eenvoudig worden aangepast en wordt de implementatie van nieuwe toepassingen ondersteund om te kunnen voldoen aan veranderende bedrijfsbehoeften.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Ontwerp
Rack-montage | Ja |
---|---|
Kleur van het product | Zwart |
LED-indicatoren | Ja |
Veiligheid | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
Certificering | 47CFR Part 15 (CFR 47) AS/NZS CISPR22 CISPR22 EN55022 ICES003 VCCI EN61000-3-2 EN61000-3-3 KN22 CNS13438 |
Kleur van het product | Zwart |
Beheerfuncties
Switch type | Managed |
---|---|
Web-gebaseerd management | Ja |
Multicast-ondersteuning | Ja |
Quality of Service (QoS) | Ja |
Switch-laag | L2/L3 |
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
---|---|
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Console port | RJ-45 |
Aantal Gigabit Ethernet (koper)-poorten | 24 |
Aantal USB 2.0-poorten | 2 |
Aantal moduleslots SPF | 2 |
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Netwerk
Netwerkstandaard | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
---|---|
Full duplex | Ja |
IGMP snooping | Ja |
10G support | Ja |
VLAN=ondersteuning | Ja |
Rate limiting | Ja |
DHCP server | Ja |
Verbindingsaggregatie | Ja |
Broadcast stormbeheer | Ja |
Auto MDI/MDI-X | Ja |
Spanning tree protocol | Ja |
Data-uitwisseling
Switchingcapaciteit | 100 Gbit/s |
---|---|
Throughput | 68,5 Mpps |
Aantal VLANs | 64 |
Jumbo Frames ondersteuning | Ja |
Beveiliging
Access Control List (ACL) | Ja |
---|---|
SSH/SSL support | Ja |
DHCP-functies | DHCP server |
Protocollen
Beheerprotocollen | SNMPv3 |
---|
Prestatie
Type processor | Ja |
---|---|
Geluidsniveau | 43 dB |
Type geheugen | DRAM |
Flash memory | 64 MB |
Intern geheugen | 512 MB |
Mean time between failures (MTBF) | 622350 uur |
Frequentie van processor | 600 MHz |
Processormodel | AppliedMicro APM8639 |
Energie
AC invoer voltage | 100 - 240 V |
---|---|
AC invoer frequentie | 50 - 60 Hz |
Typisch stroomverbruik | 32 W |
Aantal voedingen | 1 |
Stroom | 1 A |
Redundante voeding | Ja |
Power over Ethernet (PoE)
Power over Ethernet (PoE) | Nee |
---|
Eisen aan de omgeving
Temperatuur, in bedrijf | -5 - 40 °C |
---|---|
Temperatuur bij opslag | -25 - 70 °C |
Relatieve luchtvochtigheid, in bedrijf | 10 - 95 procent |
Luchtvochtigheid bij opslag | 10 - 95 procent |
Hoogte, in bedrijf | 0 - 3000 m |
Hoogte bij opslag | 0 - 4000 m |
Gewicht en omvang
Breedte | 445 mm |
---|---|
Diepte | 279 mm |
Hoogte | 45 mm |
Gewicht | 3,7 kg |
Overige specificaties
Power LED | Ja |
---|
