Cisco Catalyst WS-C2960X-48TS-L, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Niet op voorraad

Fabrikant Cisco
MPN WS-C2960X-48TS-L
EAN 0882658554346

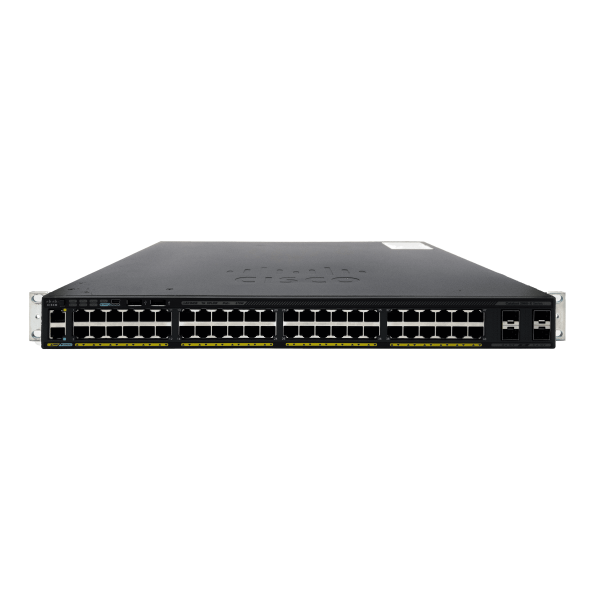

Cisco Catalyst WS-C2960X-48TS-L netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Zwart

Krijg alle bedrijfsklasse-functies die u graag wilt voor een fantastische prijs. Onze 2960-X Series Switches zijn stapelbare Gigabit Ethernet Layer 2 en Layer 3 toegangsswitches. Ze zijn gemakkelijk in gebruik te nemen, te beheren en hebben eenvoudige probleemoplossing. Ze bieden automatische software-installatie en poortconfiguratie. Daarnaast helpen ze uw kosten te verminderen door middel van hun energie-efficiënte functies.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
48
Aantal moduleslots SPF
4
Console port
RJ-45
Aantal USB 2.0-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
1023

Data-uitwisseling

Switchingcapaciteit*
216 Gbit/s
Throughput
107,1 Mpps
MAC-adrestabel*
16000 entries
Aantal wachtrijen
8
Aantal statische routes
1000
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
3
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP, SSH
SSH/SSL support
Ja
Authenticatie
MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
1000

Protocollen

Beheerprotocollen
SNMPv3

Protocollen

Wissel protocols
UDP, TCP, RADIUS/TACACS+

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Veiligheid
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1

Prestatie

Physical stacking (units)
8
Type processor
Ja
Processormodel
AppliedMicro APM8639
Frequentie van processor
600 MHz
Type geheugen
DRAM
Intern geheugen
512 MB
Flash memory
128 MB
Geluidsniveau
42 dB
Mean time between failures (MTBF)
442690 uur

Energie

Vermogenstoevoer inclusief*
Ja
Redundante voeding
Ja
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
49,5 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 40 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 4000 m

Gewicht en omvang

Breedte
445 mm
Diepte
279 mm
Hoogte
45 mm
Gewicht
4,2 kg

Verpakking

Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Power LED
Ja
