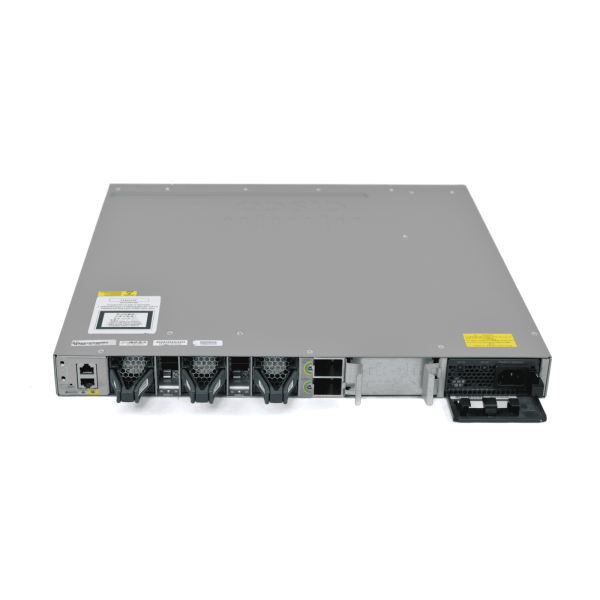

Cisco Catalyst WS-C3850-12S-E, Managed, L3, Rack-montage, 1U

Niet op voorraad

Fabrikant Cisco
MPN WS-C3850-12S-E
EAN 0882658684616

Cisco Catalyst WS-C3850-12S-E netwerk-switch Managed L3 1U Grijs

The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal moduleslots SPF
12
Console port
RJ-45/USB Type-B
Netstekker
DC-in ingang

Netwerk

10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Spanning tree protocol
Ja

Data-uitwisseling

Switchingcapaciteit*
68 Gbit/s
Verzending snelheid
68,4 Mpps
MAC-adrestabel*
32000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9198

Beveiliging

IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP, SSH

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs
LED-indicatoren
Ja

Design

Certificering
47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24

Prestatie

Type processor
Ja
Intern geheugen
4000 MB
Flash memory
2000 MB
Mean time between failures (MTBF)
315840 uur

Energie

AC-ingangsspanning
115 - 230 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
1207 BTU/h

Gewicht en omvang

Breedte
450 mm
Diepte
445 mm
Hoogte
44,5 mm
Gewicht
7,02 kg

Duurzaamheid

Duurzaamheidscertificaten
ENERGY STAR

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
