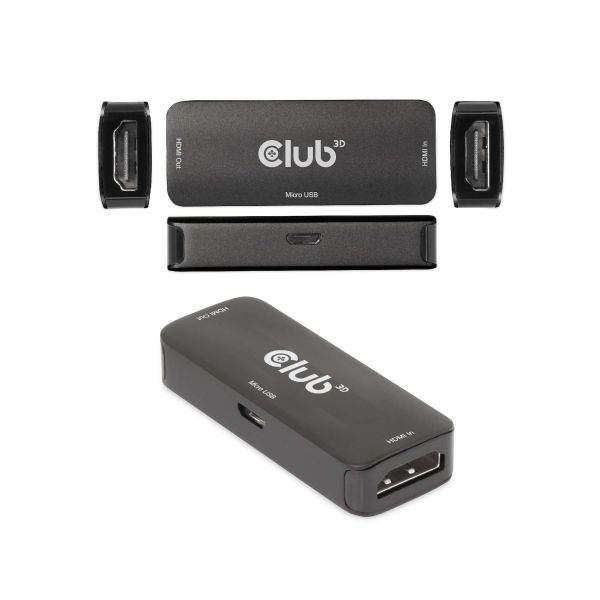

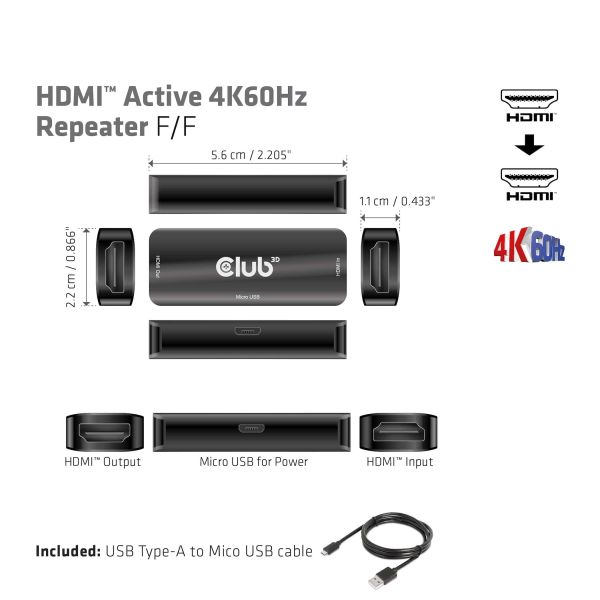

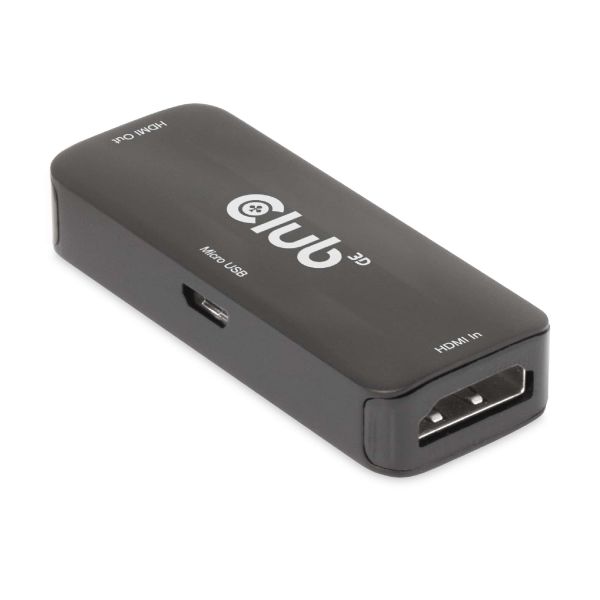

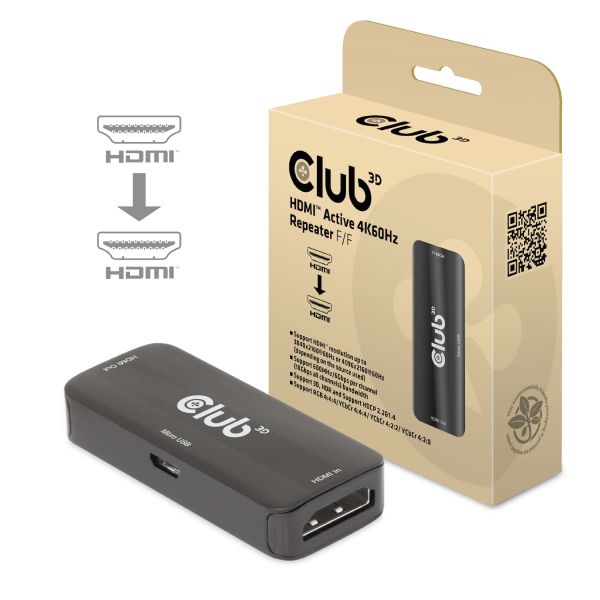

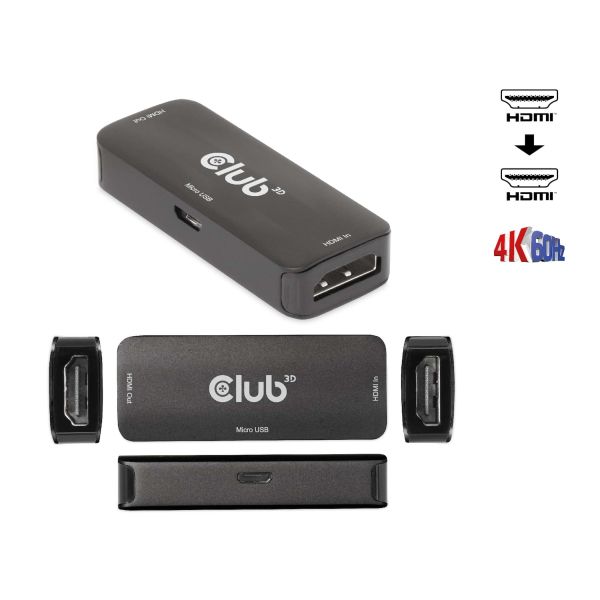

CLUB3D HDMI Active 4K60Hz Repeater F/F
The Club 3D CAC-1307 HDMIâ„¢ Active 4K60Hz Repeater extends the length of any
HDMIâ„¢ cable by regenerating the HDMIâ„¢ signal before it sends the outputs to the
HDMIâ„¢ monitor or projector. The active HDMIâ„¢ repeater will clean out the digital

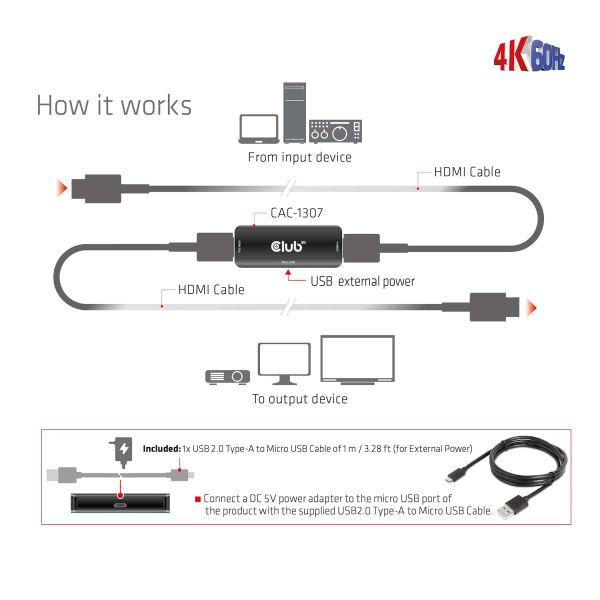

noise (sparkles) in your picture. The input of the HDMIâ„¢ active repeater is connected
with a long HDMIâ„¢ (male to male) cable from the HDMIâ„¢ device like DVD player or
Satellite set top box with a HDMIâ„¢ output port. The HDMIâ„¢ active repeater output
is connected to a second HDMIâ„¢ (male to male) cable to go from the output to any
HDMIâ„¢ display or projector with a HDMIâ„¢ connector. The unit is placed as near as
possible to the display(max. distance 5 m/16.4 ft) to remove any noise that has
been generated by a long HDMIâ„¢ cable.
HDMIâ„¢ cable by regenerating the HDMIâ„¢ signal before it sends the outputs to the
HDMIâ„¢ monitor or projector. The active HDMIâ„¢ repeater will clean out the digital
noise (sparkles) in your picture. The input of the HDMIâ„¢ active repeater is connected
with a long HDMIâ„¢ (male to male) cable from the HDMIâ„¢ device like DVD player or
Satellite set top box with a HDMIâ„¢ output port. The HDMIâ„¢ active repeater output
is connected to a second HDMIâ„¢ (male to male) cable to go from the output to any
HDMIâ„¢ display or projector with a HDMIâ„¢ connector. The unit is placed as near as
possible to the display(max. distance 5 m/16.4 ft) to remove any noise that has
been generated by a long HDMIâ„¢ cable.

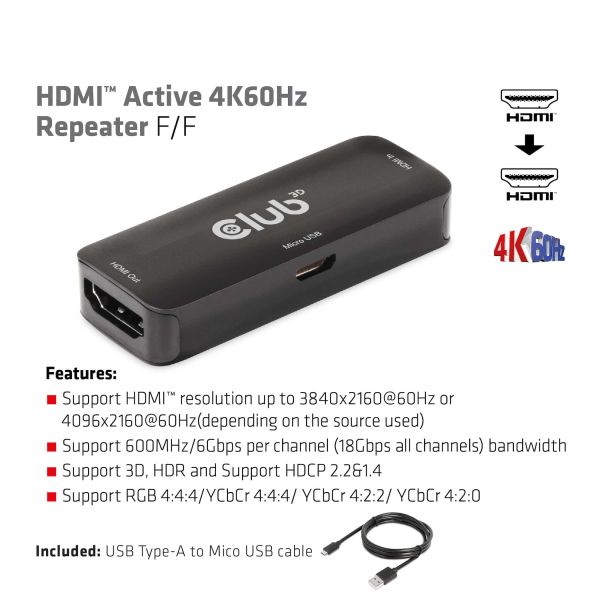

- Support HDMIâ„¢ resolution up to 3840x2160@60Hz or
- 4096x2160@60Hz(depending on the source used)
- Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
- Support 12bit per channel (36bit all channels) deep color
- Support RGB 4:4:4/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
- Support 3D, HDR
- Support HDCP 2.2&1.4

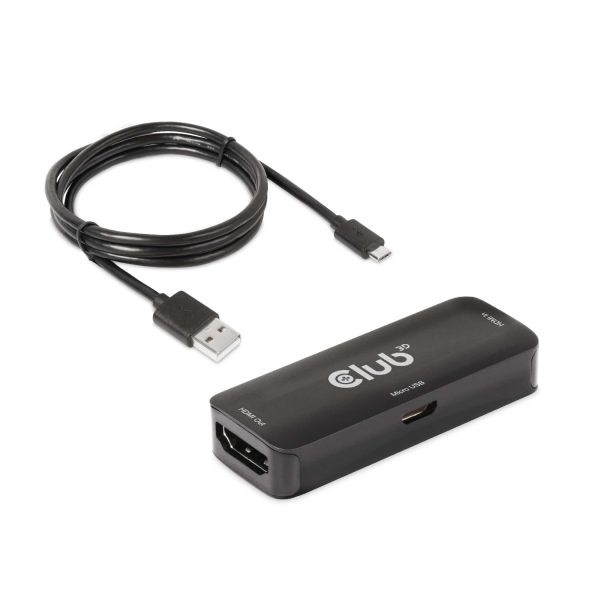

- Support 5V power supply through Micro USB port(cable included
