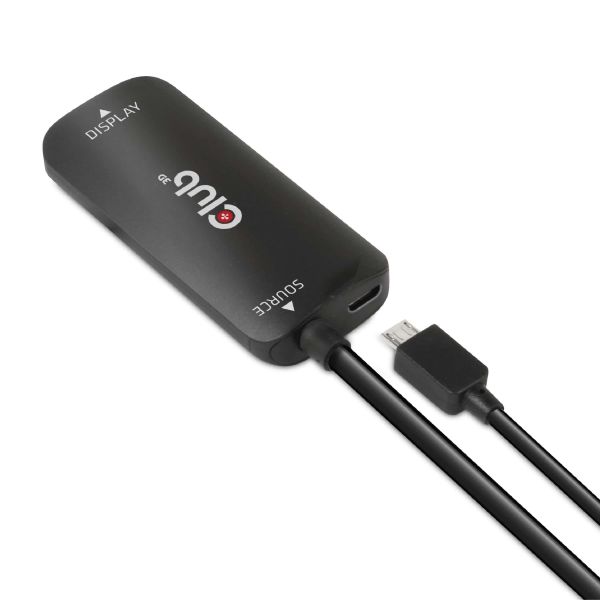

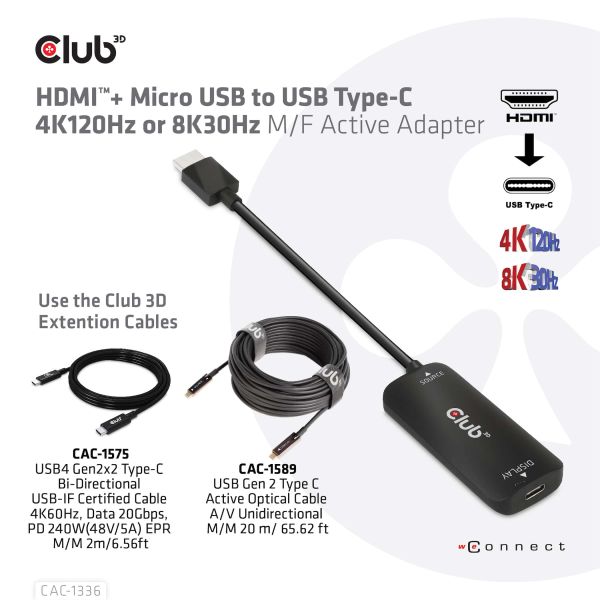

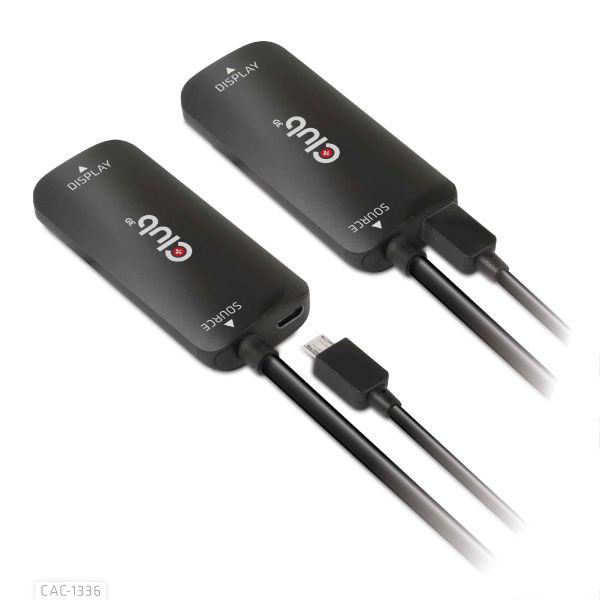

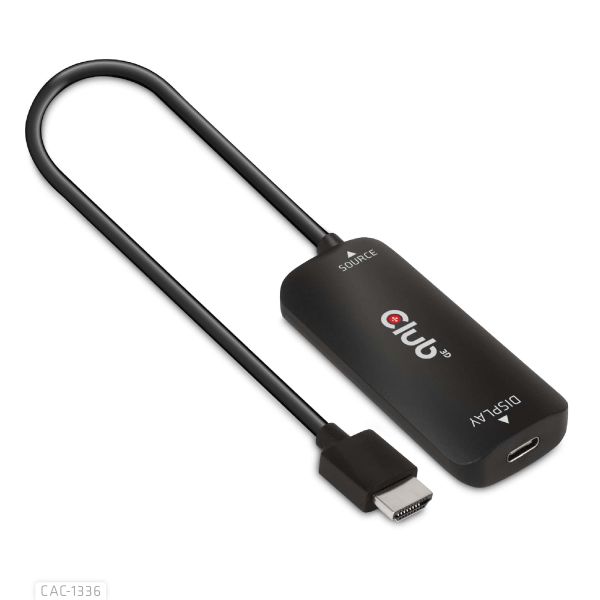

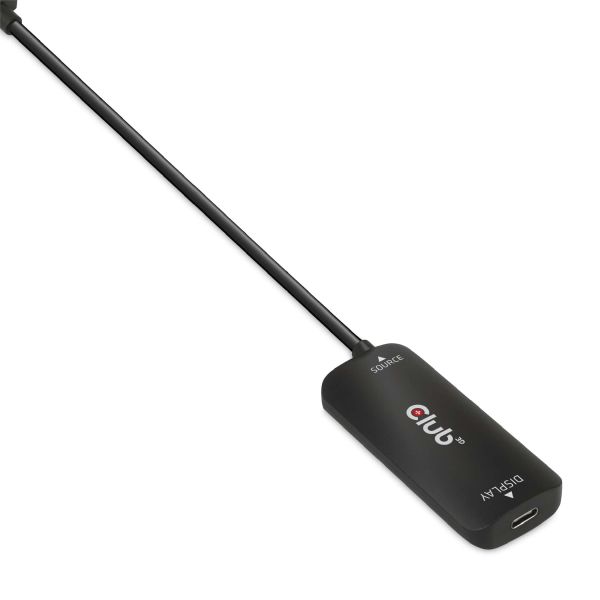

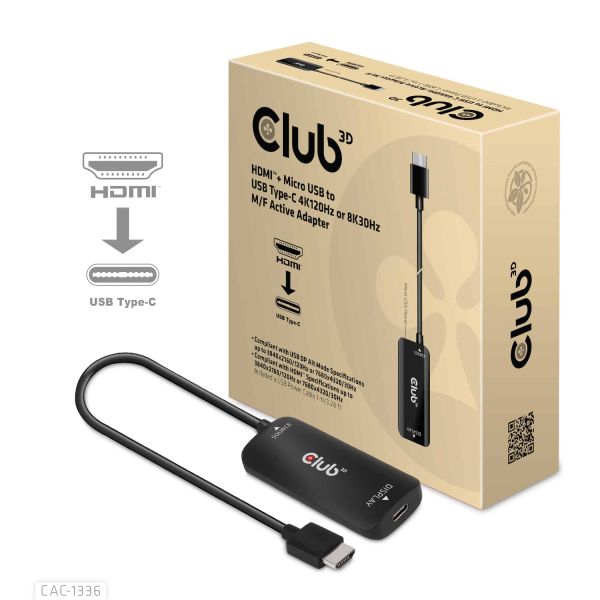

CLUB3D HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

CLUB3D HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter, 1 m, HDMI + USB, USB Type-C, Mannelijk, Vrouwelijk, Recht

Nog 14 beschikbaar

Fabrikant Club 3D
MPN CAC-1336
EAN 8719214472504
€ 111,00 excl. BTW

CLUB3D HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

The Club 3D CAC-1336 is the perfect solution to connect to any USB Type-C 8K30Hz or 4K120Hz ready displays from a HDMI™ source which does supports these resolutions/specifications.
If you have a PC or any other device that lacks the new USB Type-C 8K30Hz or 4K120Hz specifications, the Club3D CAC-1336 will be the simple way to connect your HDMI™ source device to your new USB Type-C 4K120Hz or 8K30Hz display(provided your source supports these resolutions).

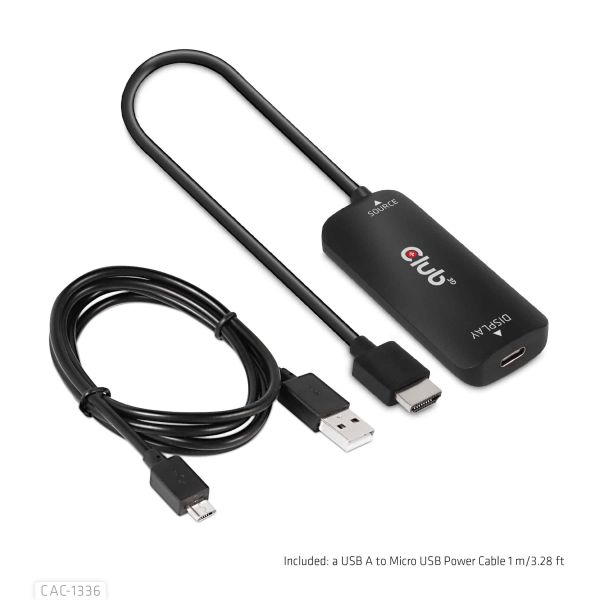

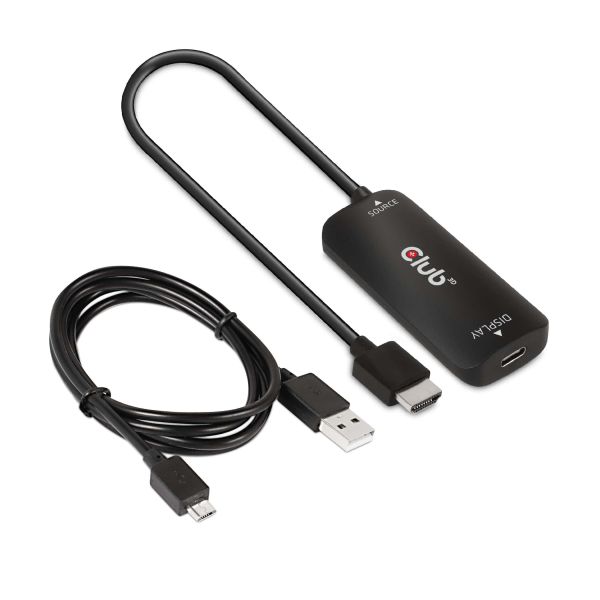

The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.

Note: This adapter will only work on USB Type-C Displays that are self powered !

Please use one of our Club 3D certified Extension/Adapter cables to connect to your devices. For optimal usages of this adapter we highly recommend you to use the CAC-1576 or CAC-1571.

In case you need additional assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
  • Compliant with USB DP Alt Mode Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
  • Compliant with HDMI™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
  • Support Max. resolution/refresh rates up to 4K120Hz or 8K30Hz
  • Adapter is separatly powered thru a Micro USB Female port 7.5Watt (5V/1.5A)
  • USB Type-A to Micro USB M/M 1m / 3.28 ft cable is supplied in the box

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Connector 1 vormfactor
Recht
Connector 2 vormfactor
Recht
Snoerlengte*
1 m
Aansluiting 1*
HDMI + USB
Aansluiting 2*
USB Type-C
Aansluiting 1 type*
Mannelijk
Aansluiting 2 type*
Vrouwelijk
Maximum resolutie
7680 x 4320 Pixels
Ondersteunde grafische resoluties
3840 x 2160, 7680 x 4320
Maximale refresh snelheid
30 Hz
Refreshrate bij maximale resolutie
120 Hz
Kleur van het product
Zwart
Soort kabel
Ronde kabel
Ondersteunt Mac-besturingssysteem
Ja

Duurzaamheid

Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC), RoHS

Gewicht en omvang

Afmetingen 1 connector (BxDxH)
37 x 7 x 15 mm
Afmetingen 2 connector (BxDxH)
28 x 6 x 10 mm
Gewicht
28 g
Breedte
72 mm
Diepte
30 mm
Hoogte
12 mm

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
145 mm
Diepte verpakking
145 mm
Hoogte verpakking
45 mm
Type verpakking
Doos
Gewicht verpakking
99 g
