CLUB3D 1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)

CLUB3D 1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz), HDMI, 8x HDMI, 3840 x 2160 Pixels, Zwart, 4K Ultra HD, 60 Hz

Nog 11 beschikbaar

Fabrikant Club 3D
MPN CSV-1383
EAN 8719214472771
€ 108,00 excl. BTW

CLUB3D 1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)

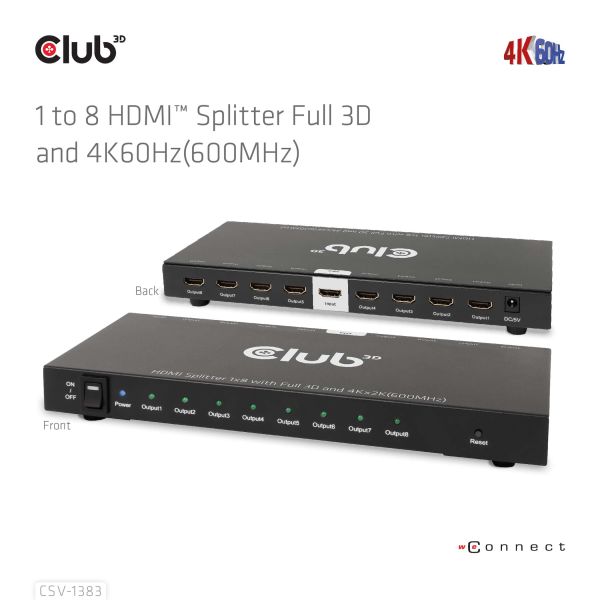

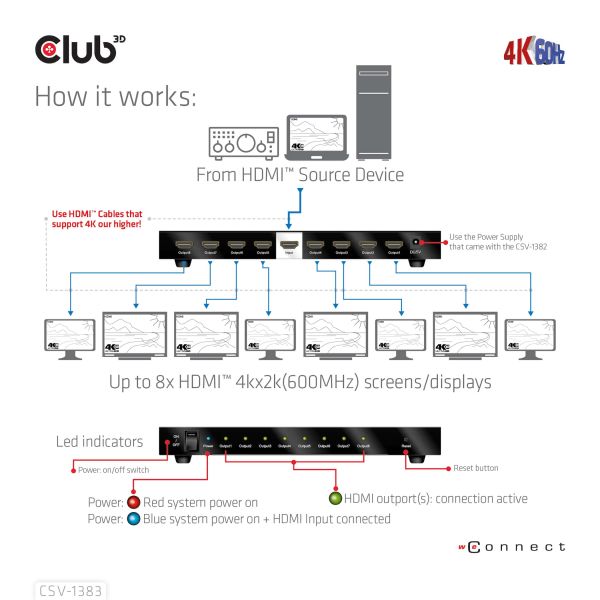

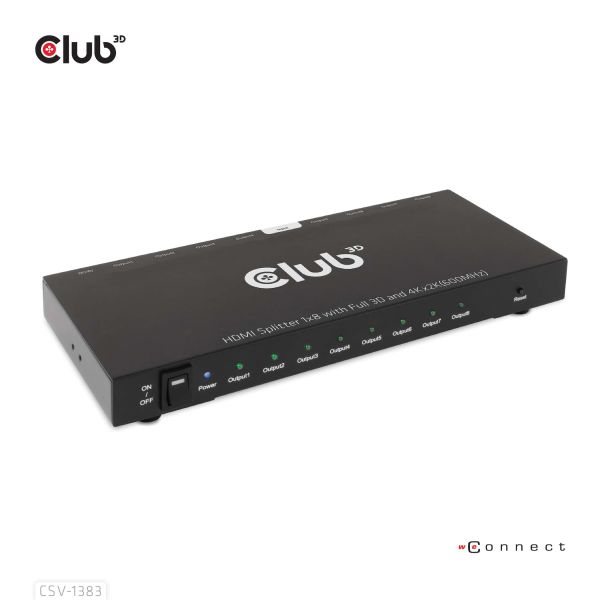

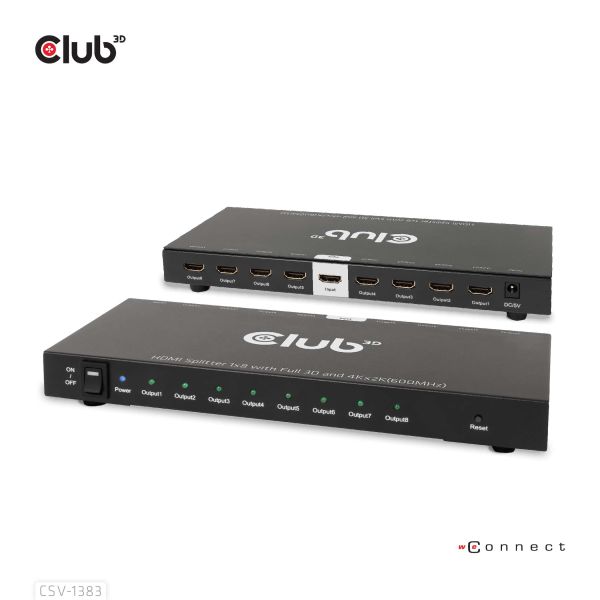

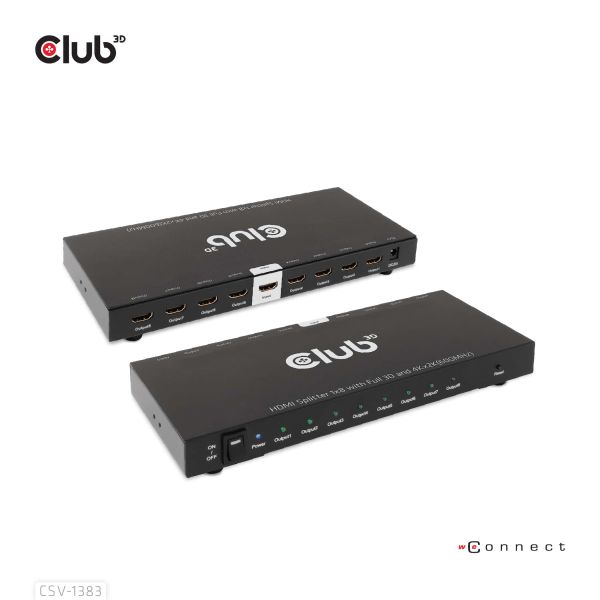

The Club 3D CSV-1383 is a high-performance and small-sized 1 to 8 HDMI™ Ultra
High Definition Splitter with hot plug and iron casing. It distributes the input of
the HDMI™ signal into eight identical outputs at the same time. It provides high
performance audio and video output through HDMI™ cables up to 4K@60Hz
resolution and is capable of receiving and transmitting up to 6Gbps/600MHz
bandwidth.
This is a high-performance and small-sized HDMI™ splitter in a metal housing with
an external Power Supply of 100-240VAC / 5V-3A DC, Power consumption(Max.)
11.3 Watt. It's an ideal assistant both at home and at work.

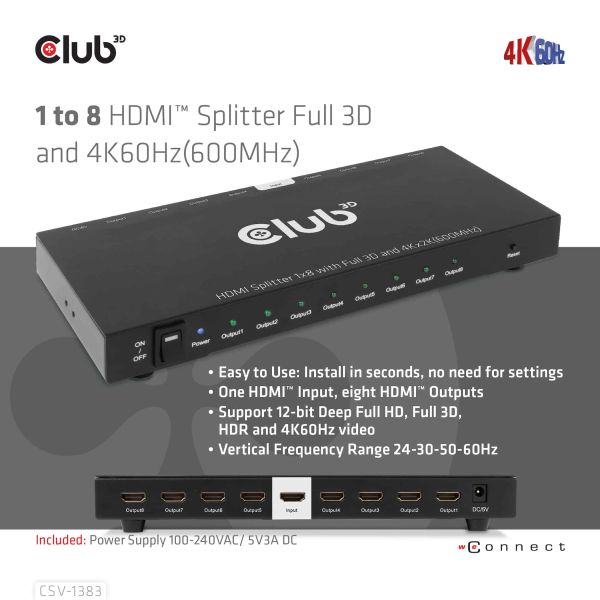

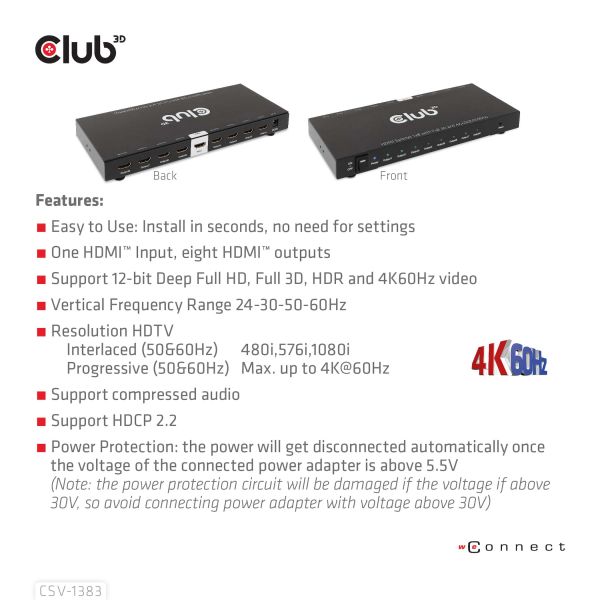

Features:
• Easy to Use: Install in seconds, no need for settings
• One HDMI™ Input, eight HDMI™ outputs
• Support 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video
• Vertical Frequency Range 24-30-50-60Hz
• Resolution HDTV
Interlaced (50&60Hz) 480i,576i,1080i
Progressive (50&60Hz) Max. up to 4K@60Hz
• Support compressed audio
• Support HDCP 2.2
• Power Protection: the power will get disconnected automatically once the
voltage of the connected power adapter is above 5.5V (Note: the power
protection circuit will be damaged if the voltage if above 30V, so avoid
connecting power adapter with voltage above 30V)
• OS Support: Windows10/11
  • OS Support:
  • Windows10/11

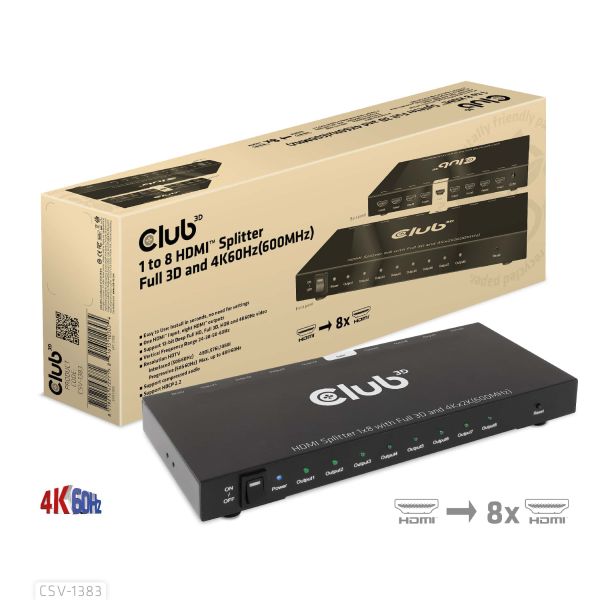

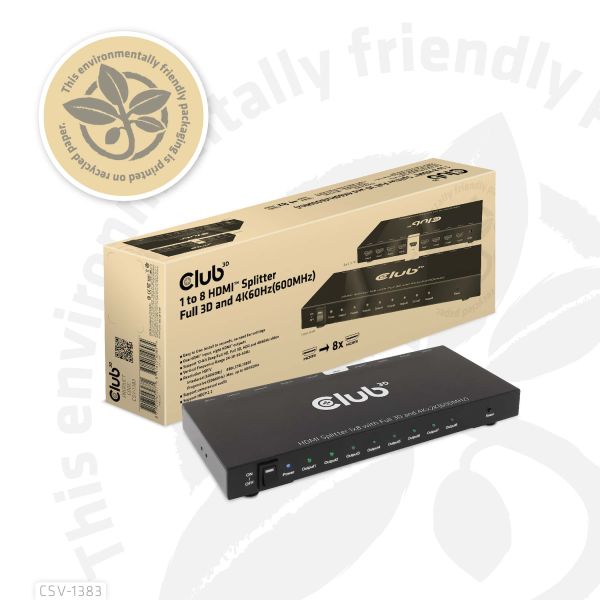

  • In the box:
  • Club 3D CSV-1383 1 to 8 HDMI™ Splitter
  • Power Supply 100-240VAC/ 5V3A DC(Please Specify Plug type when ordering)
  • QR Code for downloading the Quick Install Guide (QIG)

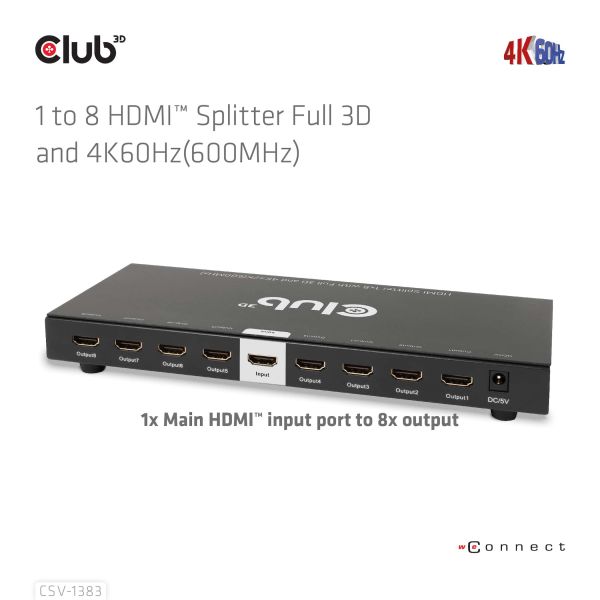

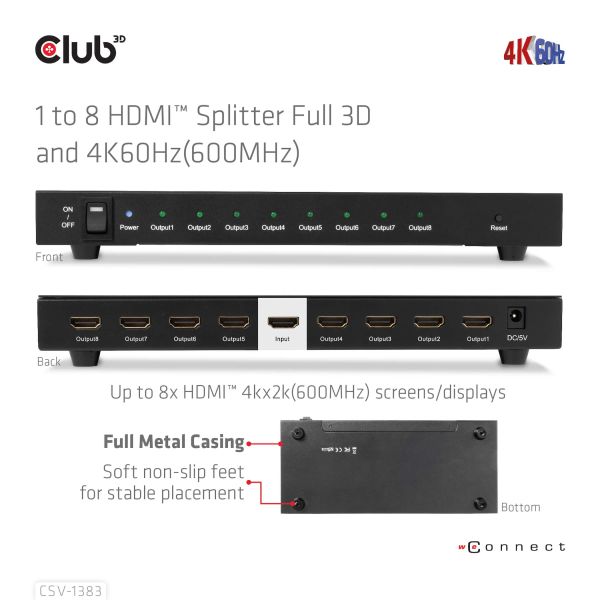

  • Available Interfaces
  • Input:
  • 1x HDMI™ Female

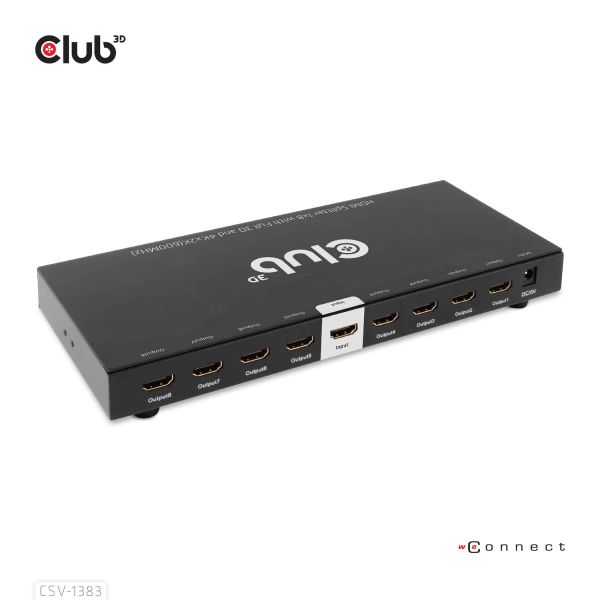

  • Output:
  • 8x HDMI™ Female
  • Other info:
  • Box size: 35 x 13 x 5.5 cm / 13.78 x 5.12 x 2.17"

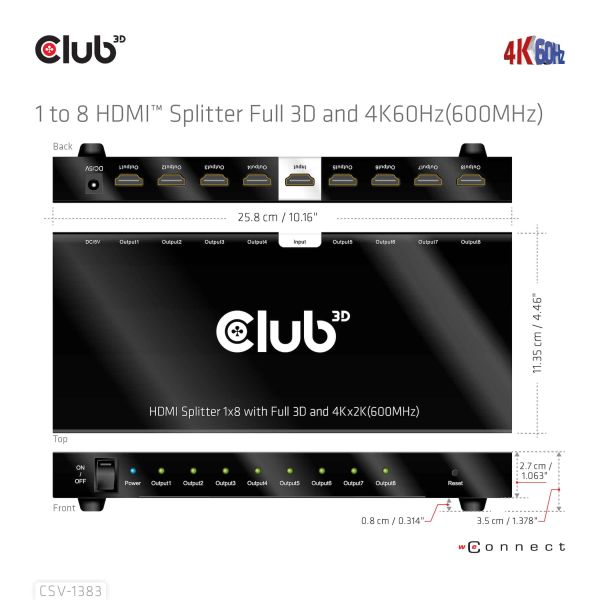

  • Switch size: 25.8 x 11.35 x 3.5 cm / 10.16 x 4.47 x 1.38"
  • Box Weight:
  • ProductWeight: 770 gr / 27.16 oz
  • Power Supply Weight: 127 gr / 4.48 oz (Depending on PowerPlug)
  • Total Weight: (Depending on PowerPlug)
  • Meets ROHS, FCC, and CE EMI requirements

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aansluiting video*
HDMI
Video uit*
8x HDMI
Hoeveelheid Video ports*
9
Aansluiting voor netstroomadapter
Ja

Kenmerken

Kleur van het product
Zwart
Maximum resolutie*
3840 x 2160 Pixels
HD type
4K Ultra HD
3D
Ja
Maximale refresh snelheid
60 Hz
HDCP versie
2.2
HDCP
Ja
Gemakkelijk te installeren
Ja
Plug and play
Ja

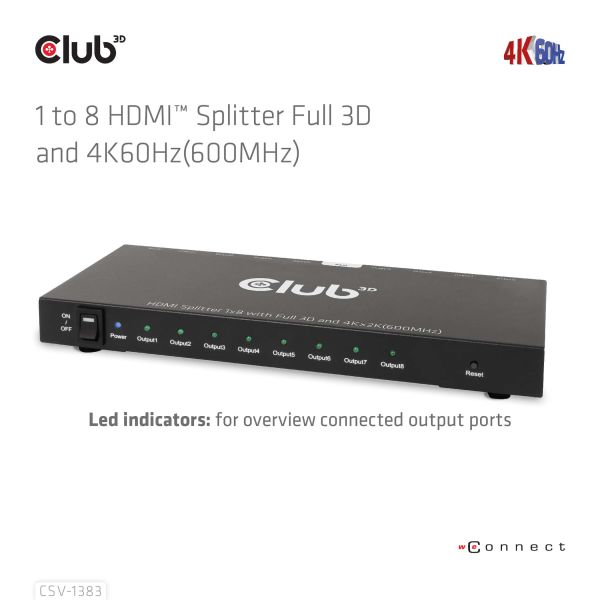

LED-indicatoren
Stroom, Status
Aantal displays ondersteund
8
Ondersteunt Windows
Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise

Netwerk

Ethernet LAN
Nee
Wifi
Nee
Bluetooth
Nee

Gewicht en omvang

Breedte
258 mm
Diepte
113 mm
Hoogte
35 mm
Gewicht
770 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
350 mm
Diepte verpakking
130 mm
Hoogte verpakking
55 mm
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
