CLUB3D UNIVERSEEL Docking station USB3.2 Type A of C 2x Displayport 4K60Hz DisplayLink® gecertificeerd, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 3,5 mm, USB Type-A, 10,100,1000 Mbit/s, Zwart

Ruim op voorraad

Fabrikant Club 3D
MPN CSV-1460
EAN 8719214470777

CLUB3D UNIVERSEEL Docking station USB3.2 Type A of C 2x Displayport 4K60Hz DisplayLink® gecertificeerd

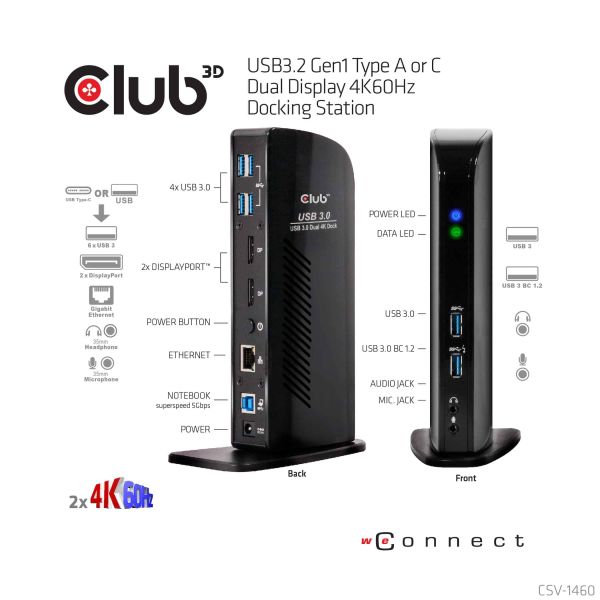

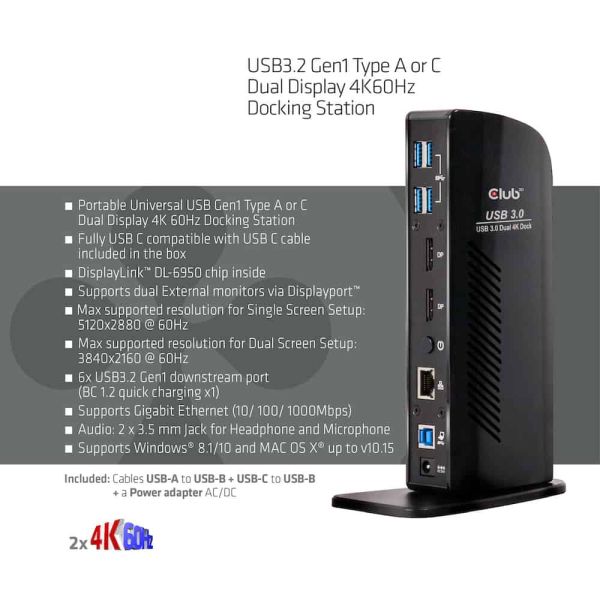

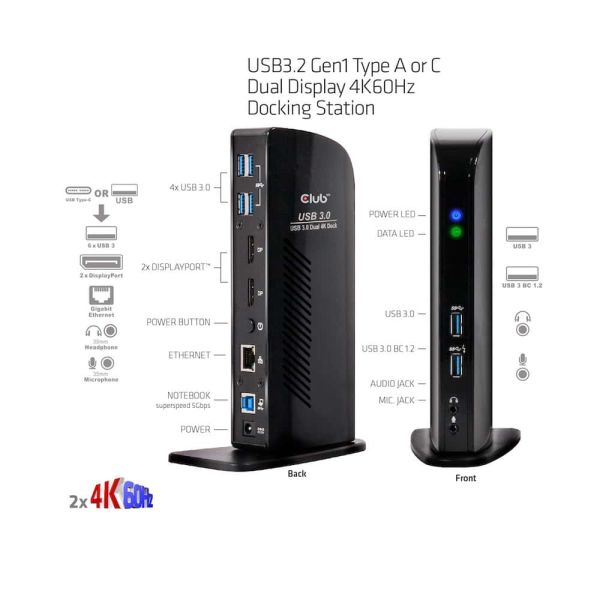

CSV-1460 - The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.0 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport outputs.

It is fully USB C compatible and a USB C cable is included in the box.

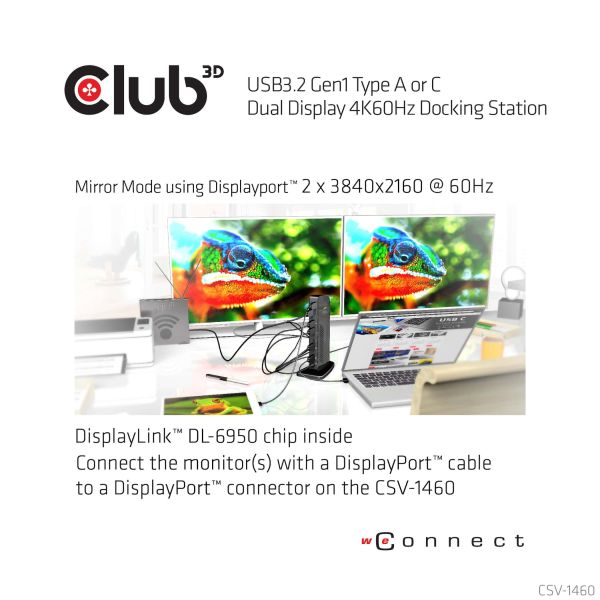

With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.0 port! Featuring the advanced DisplayLink™ DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!

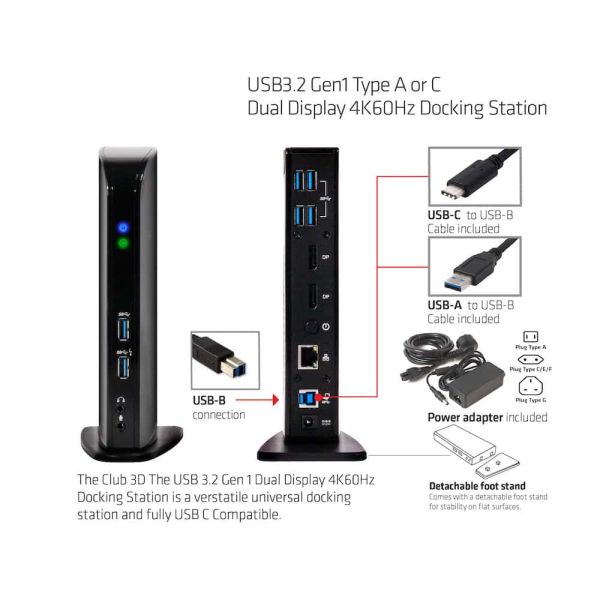

The SenseVision USB 3.0 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.

Dual Mode DisplayPort™:
The SenseVision USB 3.0 Dual Display 4K 60Hz Docking Station has 2 Displayport™++ outputs or in other words, Displayport™ 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI™ "passive" cables or adapters must be used.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
6
Aantal DisplayPorts
2
Microfoon, line-in ingang*
Ja
Hoofdtelefoonuitgangen*
1
Type aansluitplug
3,5 mm
USB-connectortype
USB Type-A
Aansluiting voor netstroomadapter
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Wake-on-LAN
Ja

Prestatie

Geïntegreerde geheugenkaartlezer*
Nee
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Aantal displays ondersteund
2
Kleur van het product*
Zwart
Aan/uitschakelaar
Ja
Oplaadfunctie
Ja
Land van herkomst
China
Compatibiliteit
Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer

Prestatie

Certificering
FCC, CE, ROHS, WEEE

Energie

Type stroombron
AC
Spanning
20 V
Output current
2,25 A

Software

Ondersteunt Windows
Windows 10, Windows 7, Windows 8

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
80 mm
Diepte
35 mm
Hoogte (voorzijde)
19,5 cm

Inhoud van de verpakking

Meegeleverde kabels
AC, USB, USB Type-C
Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja
Meegeleverde drivers
Ja
Staander inbegrepen
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
