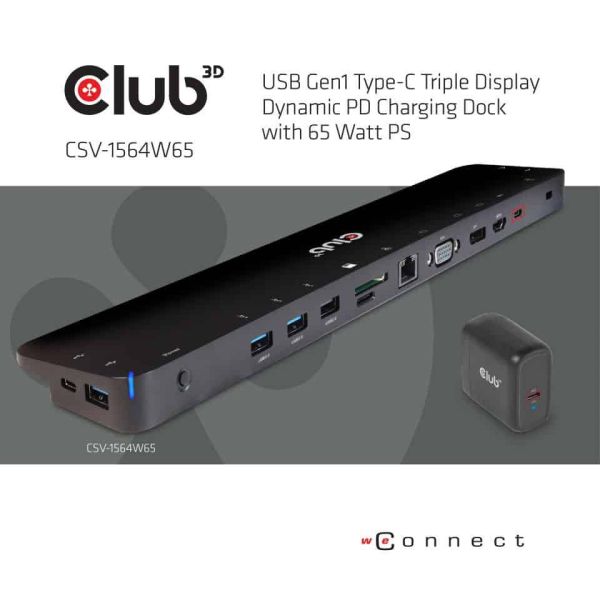

CLUB3D UNIVERSEEL USB Gen1 Type-C Triple Display Dockstation met 65 Watt voor het opladen van een lichte laptop * 1x VGA, 1x HDMI, 1x DP* ( DP ALT MODUS), Docking, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 3,5 mm, 1000 Mbit/s, 1000BASE-TX, IEEE 802.3

Ruim op voorraad

Fabrikant Club 3D
MPN CSV-1564W65
EAN 8719214472108

CLUB3D UNIVERSEEL USB Gen1 Type-C Triple Display Dockstation met 65 Watt voor het opladen van een lichte laptop * 1x VGA, 1x HDMI, 1x DP* ( DP ALT MODUS)

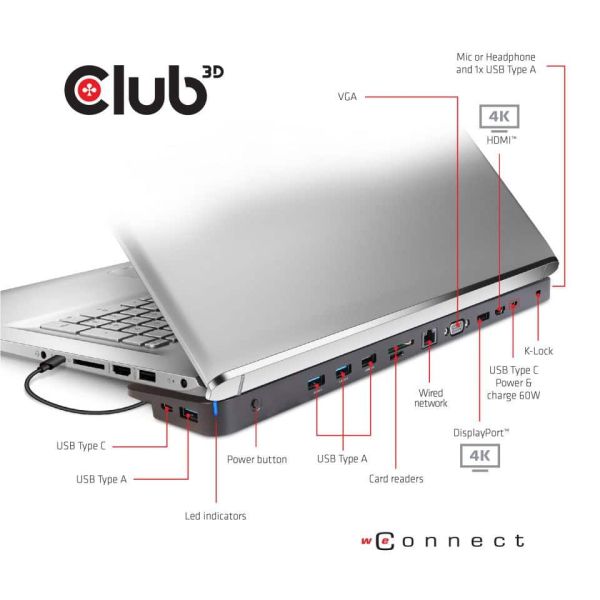

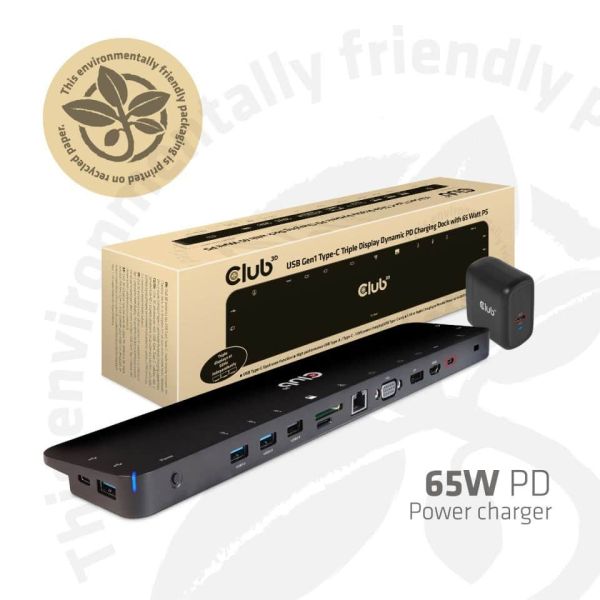

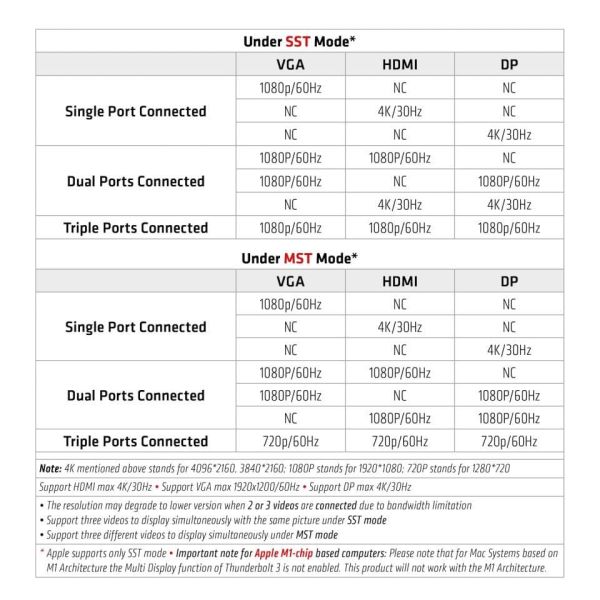

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks' power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Docking
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
2
PowerShare
Ja
USB Power Delivery
Ja
Aantal HDMI-poorten*
1
VGA (D-Sub)poort(en)
1
Aantal DisplayPorts
1
Microfoon, line-in ingang*
Nee
Combo koptelefoon/microfoon port
Ja
Type aansluitplug
3,5 mm

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Koperen ethernetbekabelingstechnologie
1000BASE-TX
Netwerkstandaard
IEEE 802.3

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash)

Prestatie

HD type
4K Ultra HD
Resolutie (maximum digitaal)
4096 x 2160 Pixels
Maximale refresh snelheid
60 Hz
Kleur van het product*
Zwart

Energie

Type stroombron
AC
Netstekker
USB Type-C
Netvoeding
100 W

Software

Ondersteunt Windows
Ja
Ondersteunt Mac-besturingssysteem
Ja

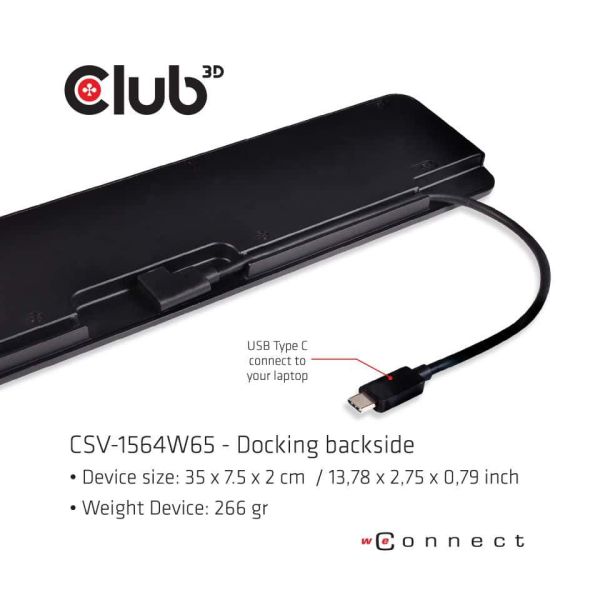

Gewicht en omvang

Breedte
350 mm
Diepte
75 mm
Hoogte
20 mm
Gewicht
616 g

Verpakking

Aantal per verpakking
1 stuk(s)

Inhoud van de verpakking

Meegeleverde kabels
USB Type-C

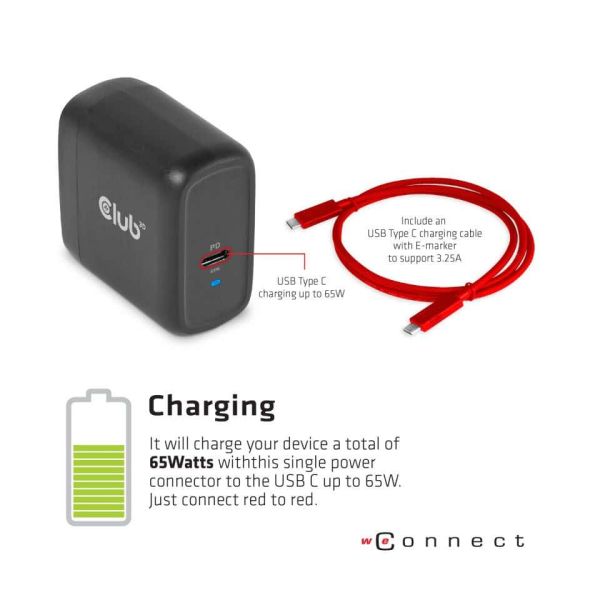

Inclusief AC-adapter
Ja
