CLUB3D Universeel Docking station met 120W max/Power adapter voor het opladen van de allerzwaarste laptops met USB type C aansluiting, 2x HDMI, 1x DP( DisplayLink™ gecertificieerd en DP alt modus )

CLUB3D Universeel Docking station met 120W max/Power adapter voor het opladen van de allerzwaarste laptops met USB type C aansluiting, 2x HDMI, 1x DP( DisplayLink™ gecertificieerd en DP alt modus ), Docking, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Zwart, MicroSD (TransFlash), SD, Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer, Meets ROHS, FCC, and CE EMI requirements

Ruim op voorraad

Fabrikant Club 3D
MPN CSV-1566
EAN 8719214472092
€ 310,00 excl. BTW

CLUB3D Universeel Docking station met 120W max/Power adapter voor het opladen van de allerzwaarste laptops met USB type C aansluiting, 2x HDMI, 1x DP( DisplayLink™ gecertificieerd en DP alt modus )

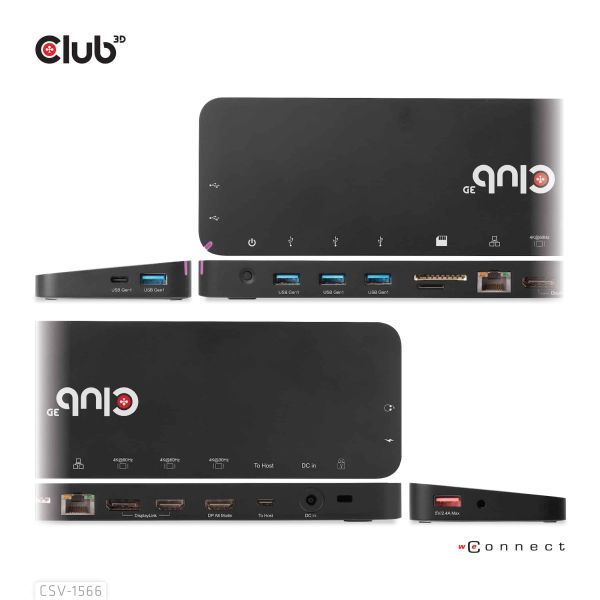

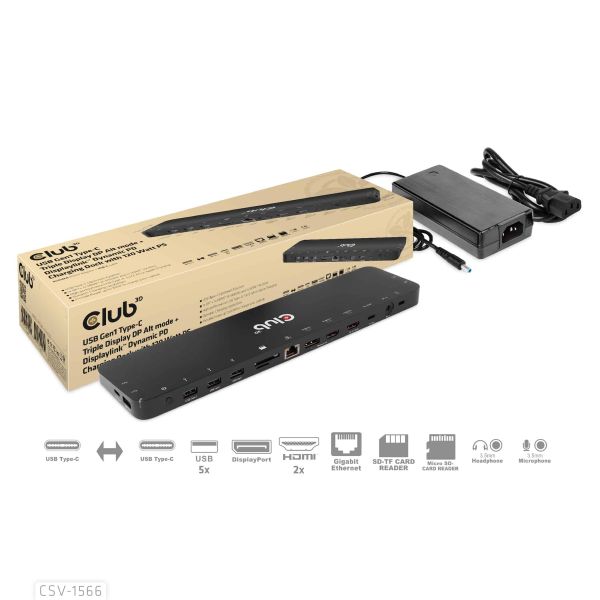

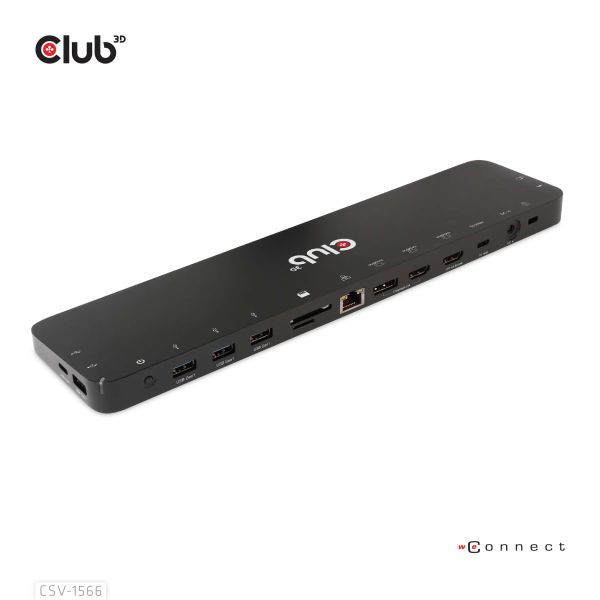

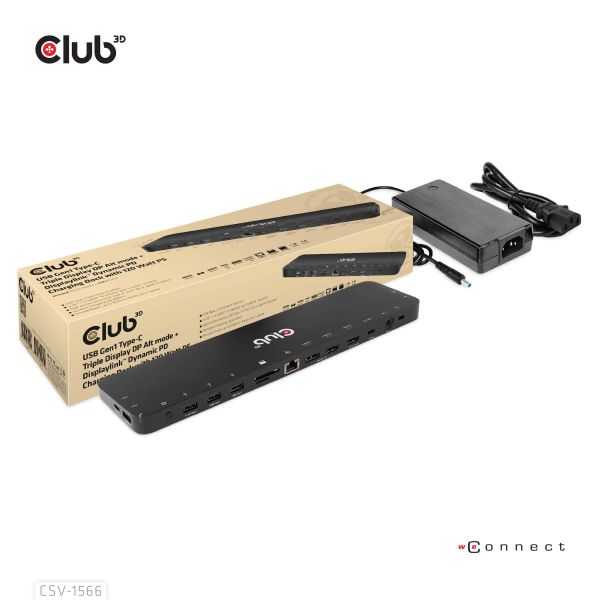

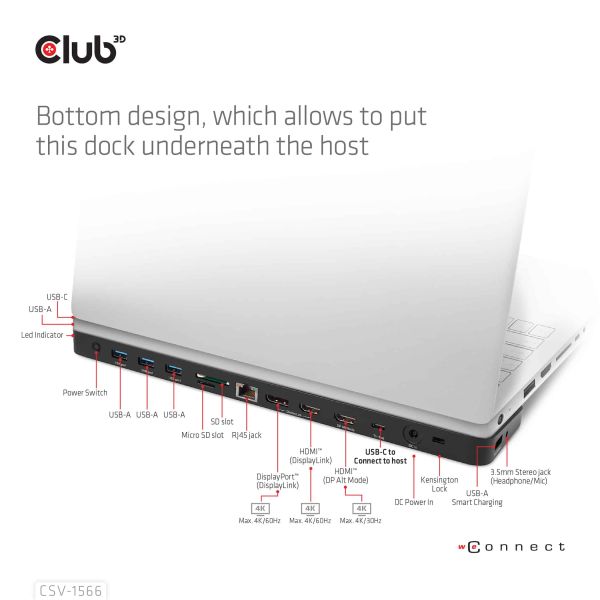

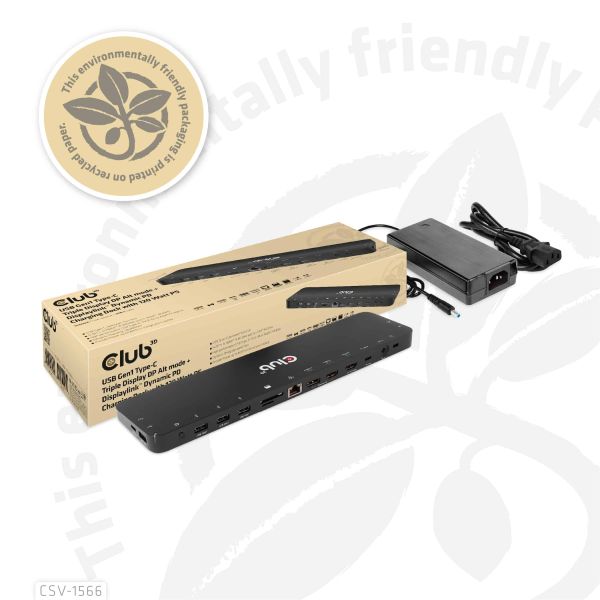

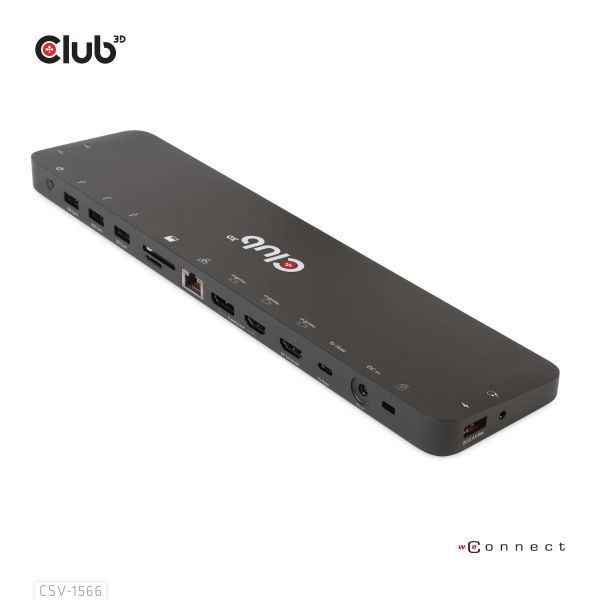

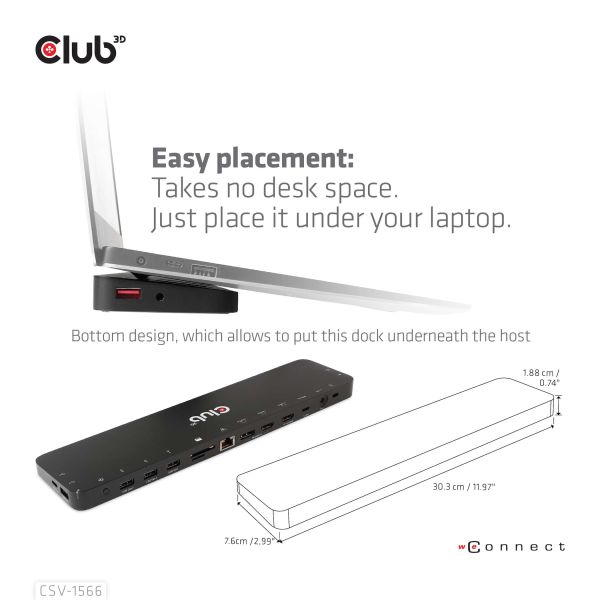

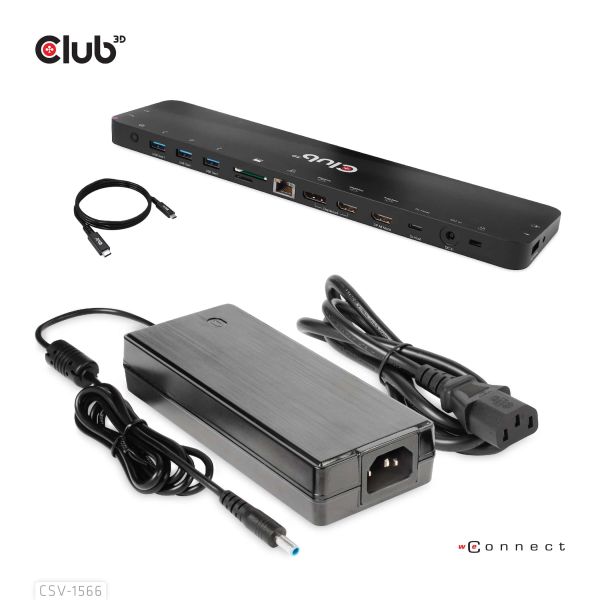

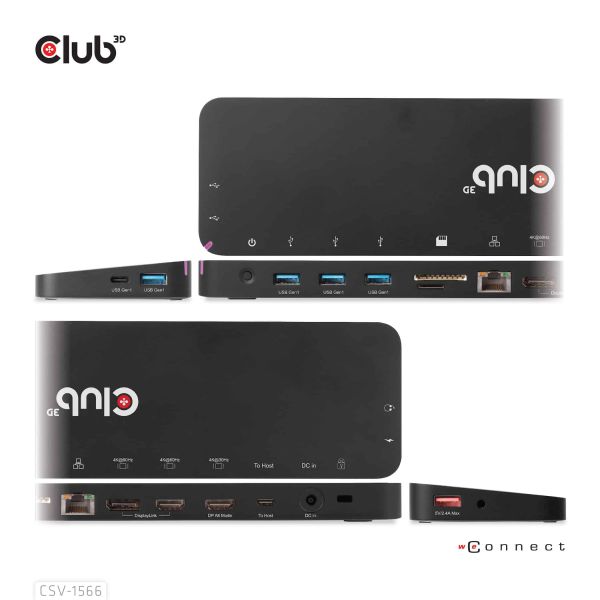

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

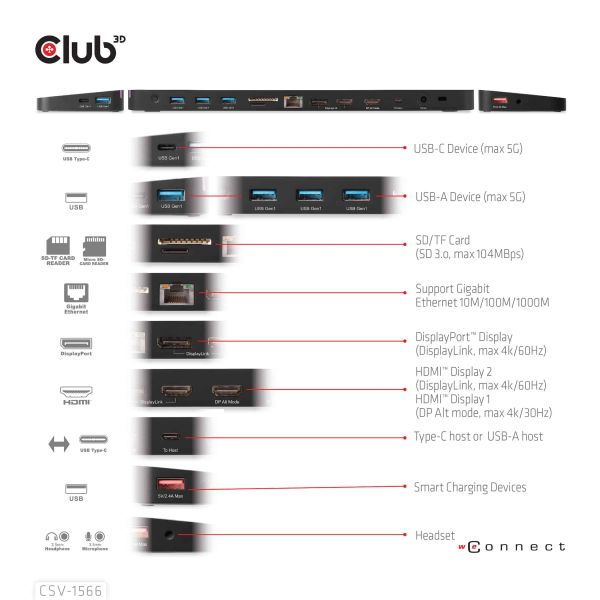

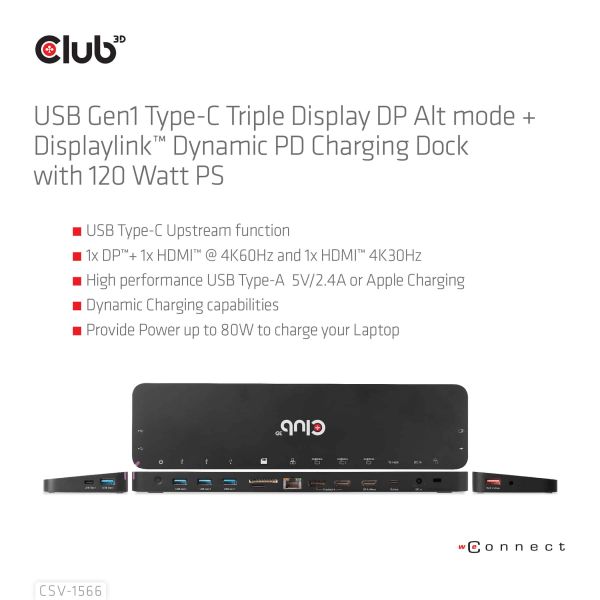

  • Support DP1.2 Alt mode and Displaylink™/ USB mode
  • Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter) to be multiple video, data and power ports

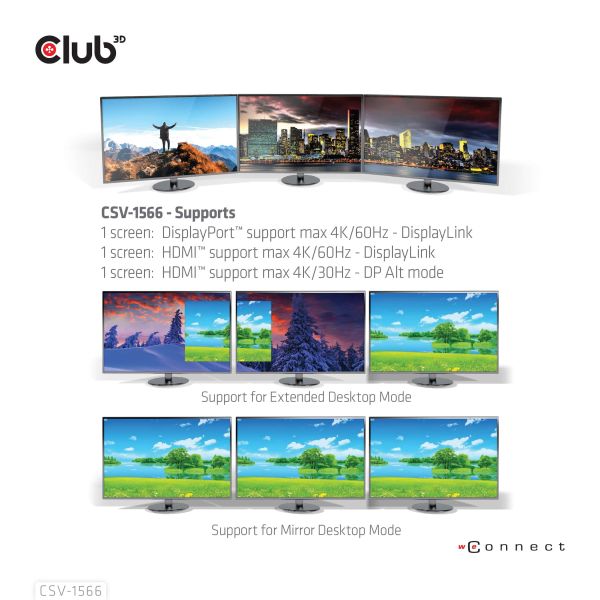

  • Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and Window system

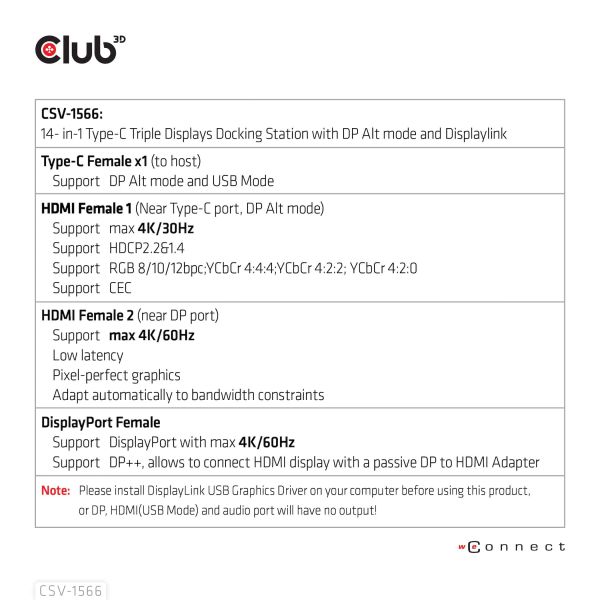

  • HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz
  • HDMI™ 2 (USB mode) supports max 4K/60Hz
  • DP™(USB mode) support max 4K/60Hz
  • Support DP++
  • Support smart charging with max 5V/2.4A
  • Support Gigabit Ethernet to get access to super fast network
  • Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously
  • Support audio in and out

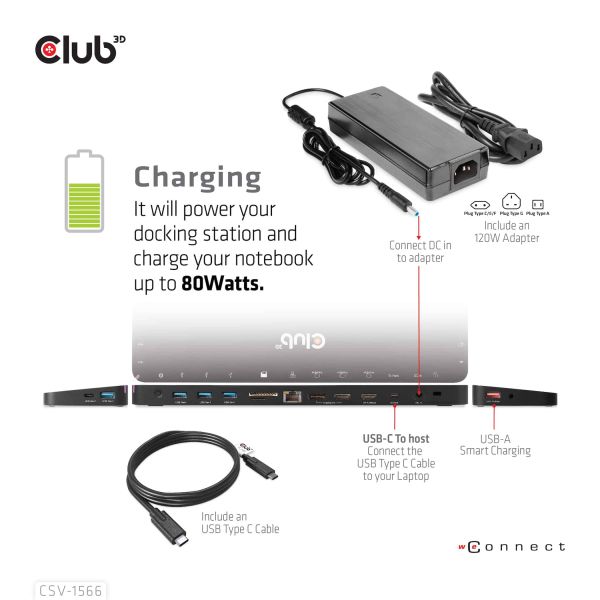

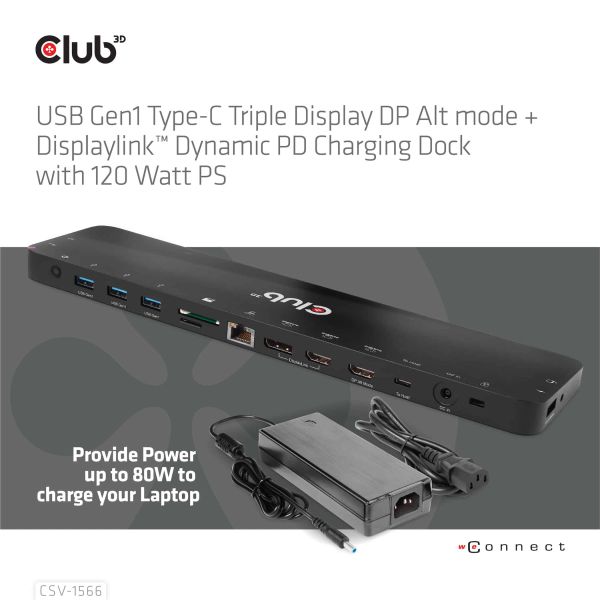

  • Support max 120W DC power in and bypass 80W to host
  • Short-circuit, over-current, over-voltage protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Docking
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
USB Power Delivery
Ja
Aantal HDMI-poorten*
2
HDMI versie
2.0
Aantal DisplayPorts
1
Combo koptelefoon/microfoon port
Ja
Aansluiting voor netstroomadapter
Ja
USB Type-C DisplayPort alternatieve modus
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), SD
Kleur van het product*
Zwart
Plug and play
Ja
Compatibiliteit
Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
Certificering
Meets ROHS, FCC, and CE EMI requirements

Energie

Type stroombron
DC

Gewicht en omvang

Breedte
304 mm
Diepte
77 mm
Hoogte
18 mm
Gewicht
358 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
360 mm
Diepte verpakking
115 mm
Hoogte verpakking
65 mm
Gewicht verpakking
726 g

Inhoud van de verpakking

Meegeleverde kabels
USB Type-C
Inclusief AC-adapter
Ja
Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Spanning
20.5 V
