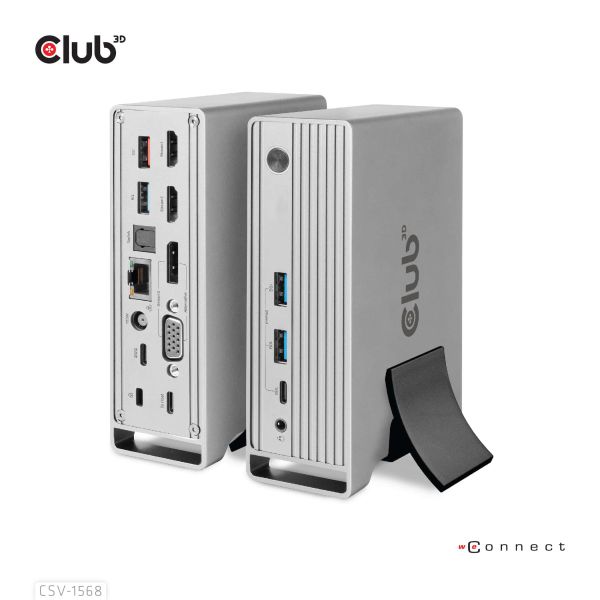

CLUB3D USB type C Universeel docking station 2x USB Gen2 Type-A 1x USB Gen1 Type-A 1x USB Type-A (ROOD) Smart Charging-poort 5V/2.4A Max. • 2x HDMI (DP Alt Mode) 1x DP (DP Alt Mode) 1x VGA 1x RJ45 max.120 Watt opladen, Docking, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3,5 mm, 1.4/2.2, Metallic

Ruim op voorraad

Fabrikant Club 3D
MPN CSV-1568
EAN 8719214472115

CLUB3D USB type C Universeel docking station 2x USB Gen2 Type-A 1x USB Gen1 Type-A 1x USB Type-A (ROOD) Smart Charging-poort 5V/2.4A Max. • 2x HDMI (DP Alt Mode) 1x DP (DP Alt Mode) 1x VGA 1x RJ45 max.120 Watt opladen

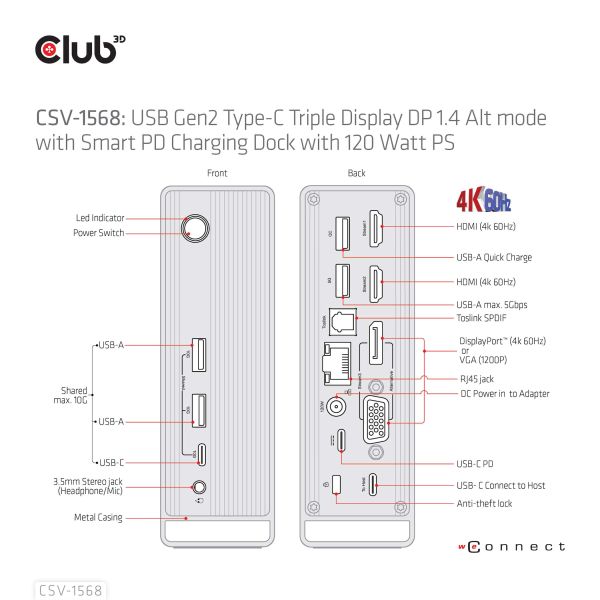

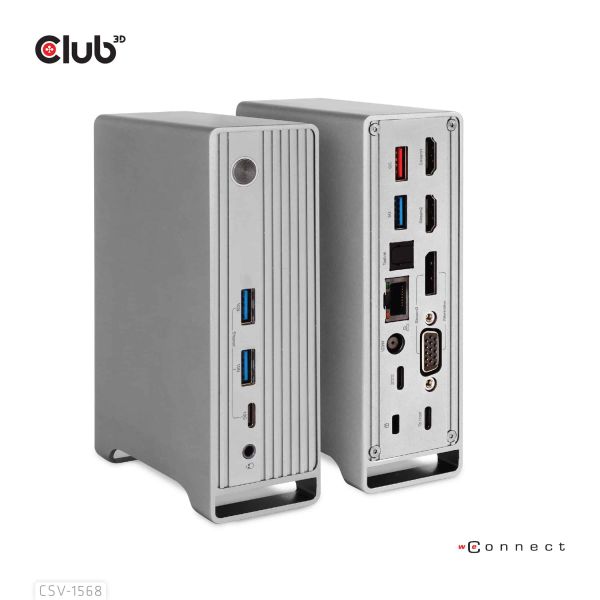

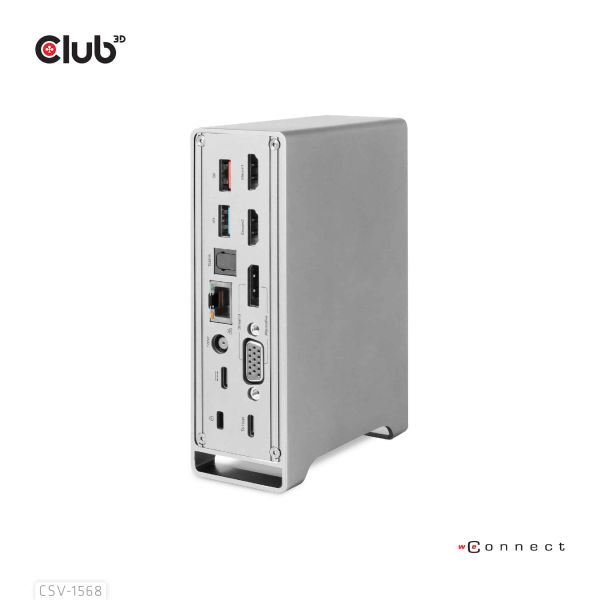

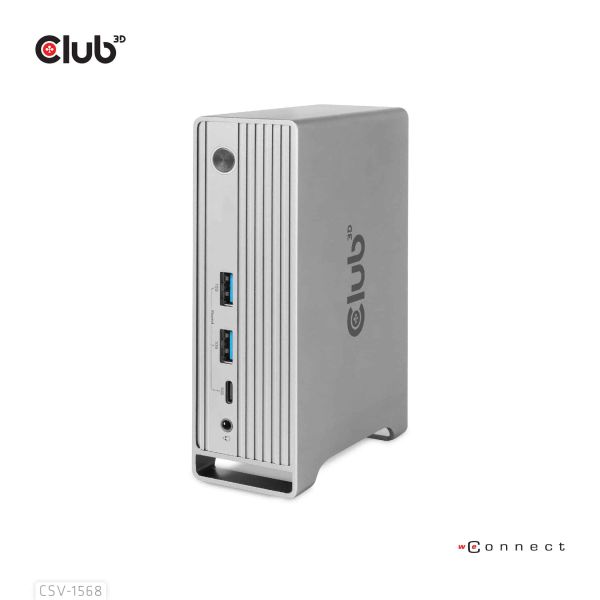

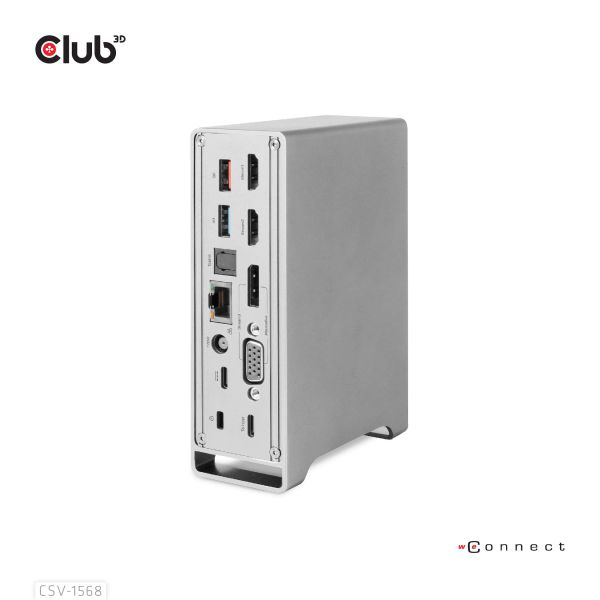

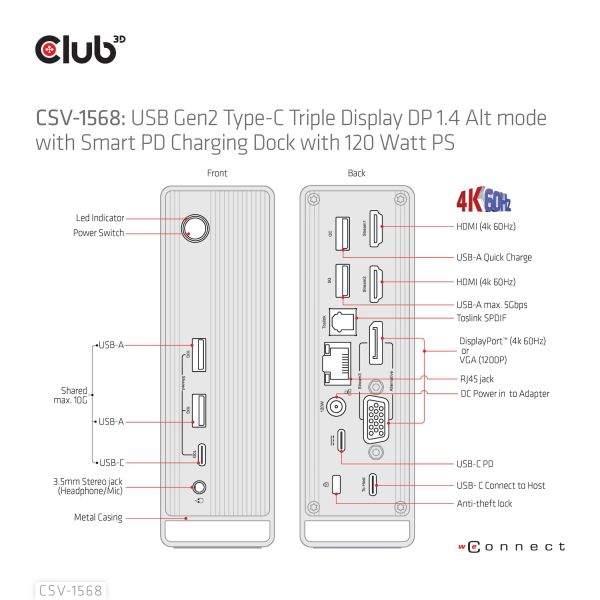

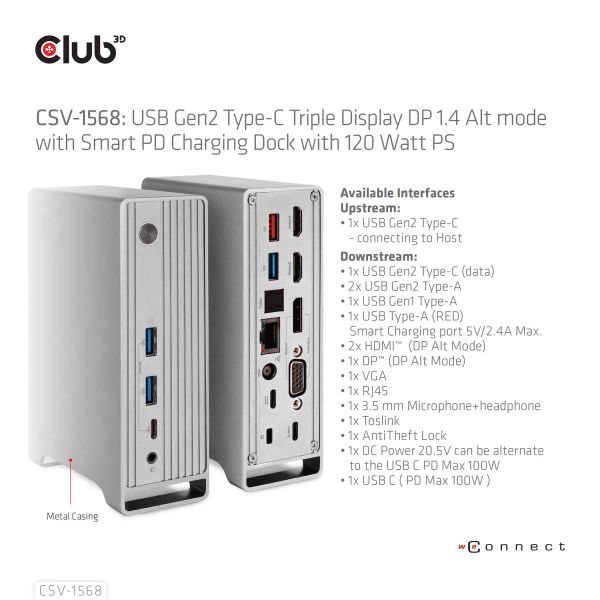

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

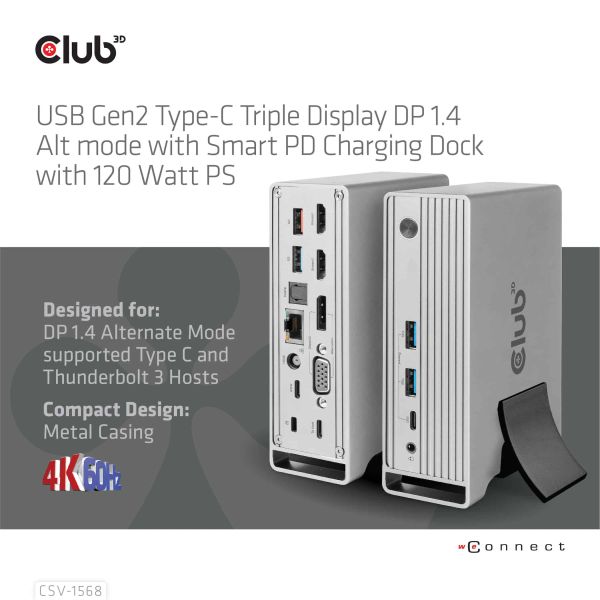

  • Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
  • Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
  • When 3 Displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support deep color 8/10 bit
  • DP and HDMI support HDR
  • DP and HDMI support HDCP2.2 & 1.4
  • DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
  • Support Gigabit Ethernet 10/100/1000M
  • Support USB3.2 Gen2 with max 10Gbps data transfer
  • Support smart charging
  • Support Digital audio with max 96KHz/24bit sampling rate

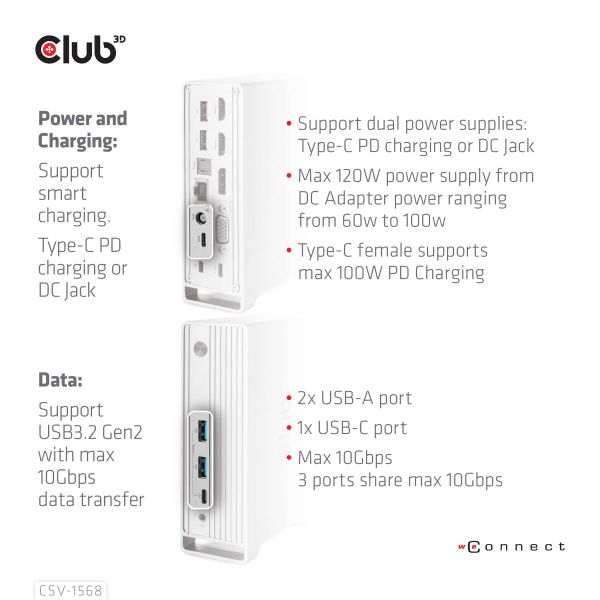

  • Support dual power supplies: Type-C PD charging or DC Jack
  • Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
  • Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Docking
Hostinterface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
USB Power Delivery
Ja
USB Power Delivery herziening
3.0
USB Power Delivery tot max.
100 W
Aantal HDMI-poorten*
2
VGA (D-Sub)poort(en)
1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Thunderbolt 3 Power Delivery
Ja
Combo koptelefoon/microfoon port
Ja
Type aansluitplug
3,5 mm
Aansluiting voor netstroomadapter
Ja
HDCP
Ja
HDCP versie
1.4/2.2
USB Type-C DisplayPort alternatieve modus
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Overdrachtssnelheid
16,2 Gbit/s
Maximale refresh snelheid
60 Hz
Kleur van het product*
Metallic
HDR-ondersteuning
Ja
Plug and play
Ja
Sleutelsleuf
Ja
Land van herkomst
China
Merkcompatibiliteit
Apple
Compatibiliteit
Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer

Prestatie

Certificering
Meets ROHS, FCC, and CE EMI requirements

Energie

Type stroombron
DC
Netstekker
USB Type-C
AC-ingangsspanning
100 - 240 V
Netvoeding
120 W
Vermogensverbruik (max)
120 W
Lengte stroomkabel
1 m

Software

Ondersteunt Windows
Ja
Ondersteunt Mac-besturingssysteem
Ja

Gewicht en omvang

Breedte
139 mm
Diepte
90 mm
Hoogte
44 mm
Gewicht
563 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
225 mm
Diepte verpakking
155 mm
Hoogte verpakking
97 mm
Gewicht verpakking
1,36 kg

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelstartgids
Ja

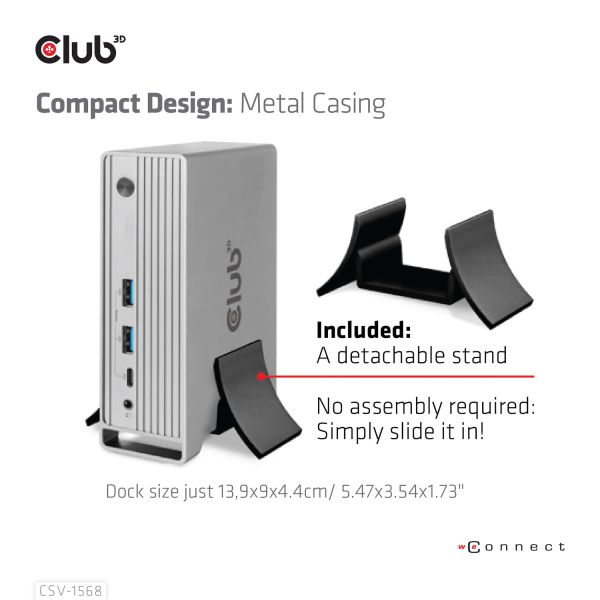

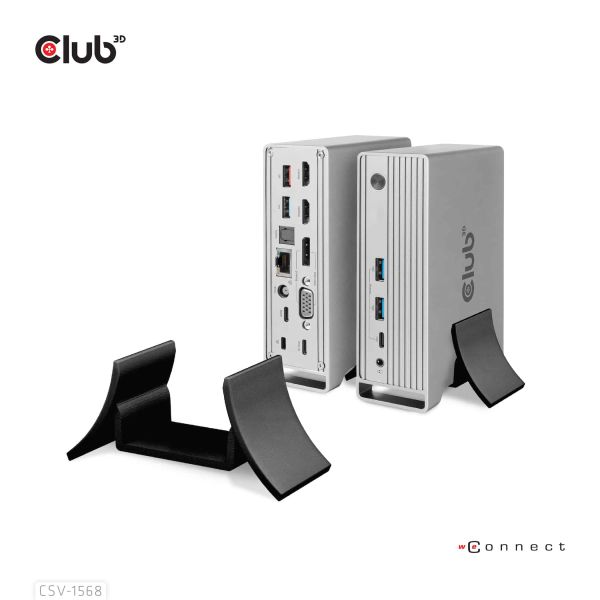

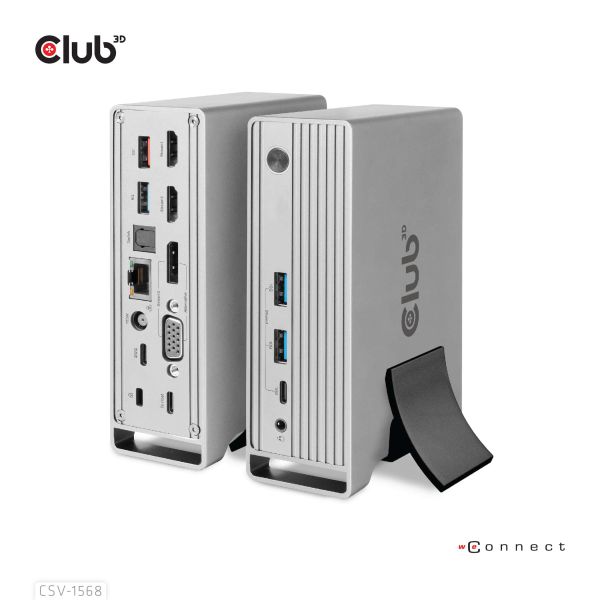

Staander inbegrepen
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Speciale eigenschappen

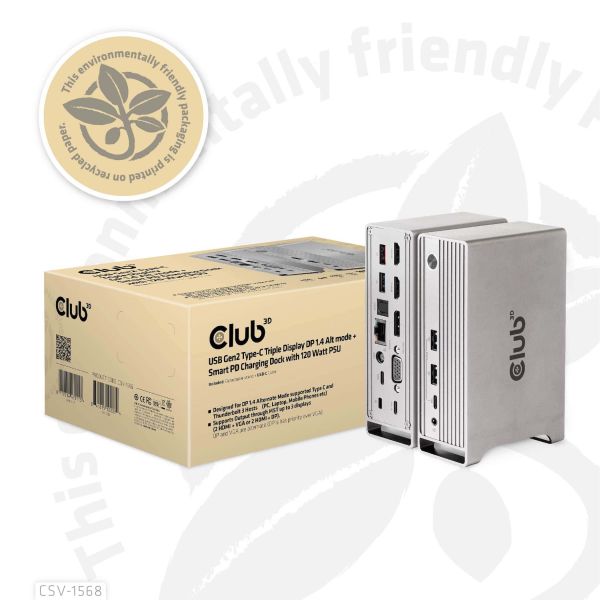

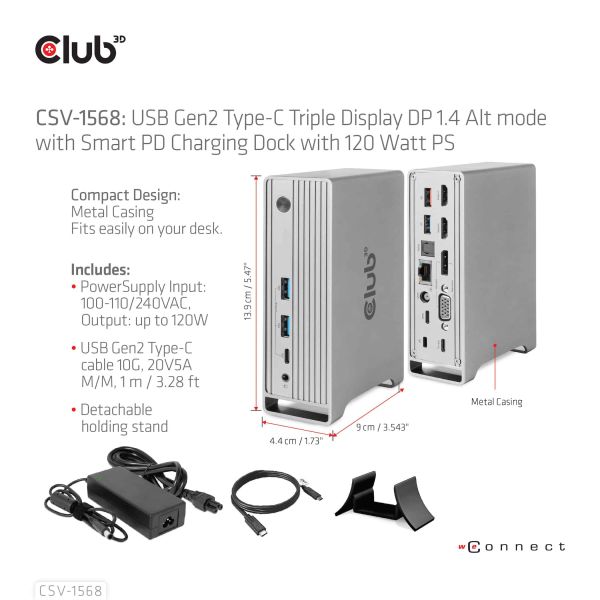

In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
Spanning
20.5 V
