CLUB3D USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack

CLUB3D USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack, Docking, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3,5 mm, Zwart, Chroom, 4K Ultra HD

Nog 16 beschikbaar

Fabrikant Club 3D
MPN CSV-1591
EAN 8719214471453
€ 46,00 excl. BTW

CLUB3D USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack

CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.

This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.

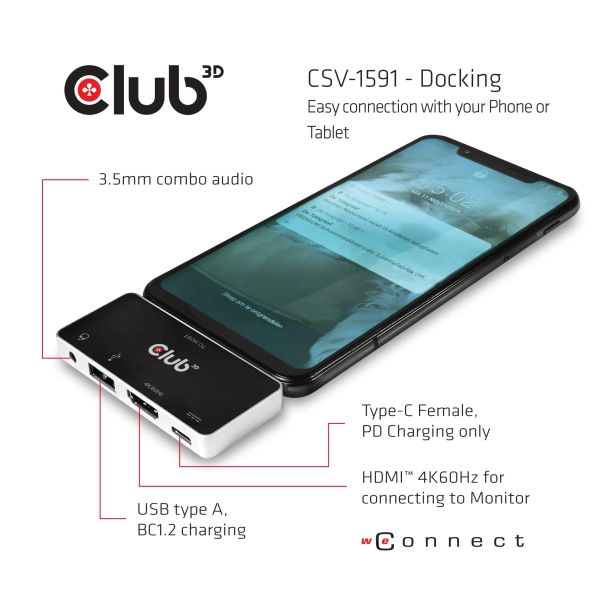

  • 1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps
  • 1x HDMI™ Female
  • Support 6/8/10/12 bit color depth output
  • Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
  • Support HDCP 2.2 & HDCP1.4
  • Support HDR
  • 1x USB Type A 2.0, Max 480Mbps bandwidth
  • Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
  • 1x 3.5mm combo audio*
  • Support 48K/44.1KHz sampling rate Audio output
  • Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected
  • When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last
  • When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Docking
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal USB 2.0-poorten*
1
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
USB Power Delivery
Ja
USB Power Delivery tot max.
100 W
Aantal HDMI-poorten*
1
HDMI versie
2.0
Microfoon, line-in ingang*
Nee
Combo koptelefoon/microfoon port
Nee
Hoofdtelefoonuitgangen*
1
Type aansluitplug
3,5 mm
Lijningang
Nee
Lijnuitgang
Nee

Netwerk

Ethernet LAN*
Nee

Prestatie

Geïntegreerde geheugenkaartlezer*
Nee
HD type
4K Ultra HD
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Kleur van het product*
Zwart, Chroom
Plug and play
Ja
Oplaadfunctie
Ja
Materiaal behuizing
Aluminium
Land van herkomst
China

Prestatie

Compatibiliteit
ALL
Certificering
FCC, CE EMI

Koeling

Ingebouwde ventilator
Nee

Energie

Type stroombron
USB
Netstekker
USB Type-C
Netvoeding
100 W

Duurzaamheid

Duurzaamheidscertificaten
RoHS

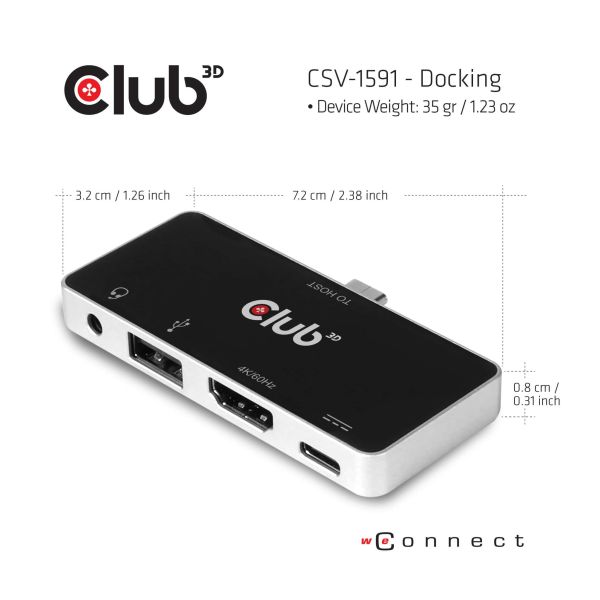

Gewicht en omvang

Breedte
72 mm
Diepte
32 mm
Hoogte
9 mm
Gewicht
35 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
100 mm
Diepte verpakking
100 mm
Hoogte verpakking
90 mm
Gewicht verpakking
65 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
