CLUB3D UNIVERSEEL USB 3.1 Gen 1 DisplayLink® gecertificeerd Docking station UHD 4K, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 1.4a, USB, 10,100,1000 Mbit/s, Zwart

Nog slechts 8 beschikbaar

Fabrikant Club 3D
MPN CSV-3103D
EAN 8717249401070

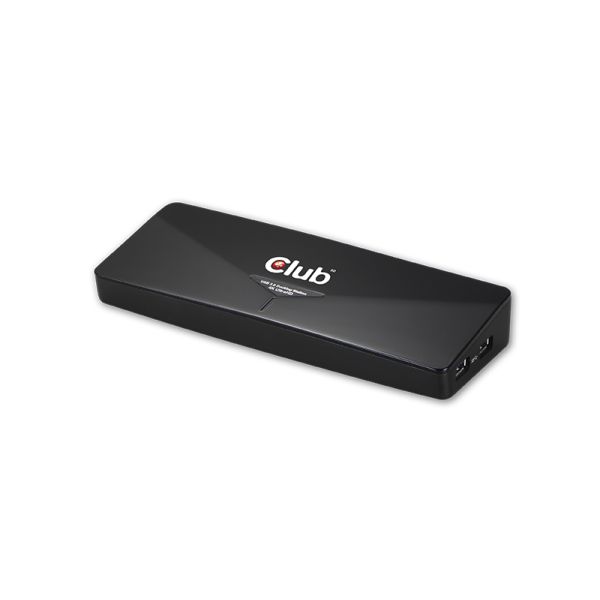

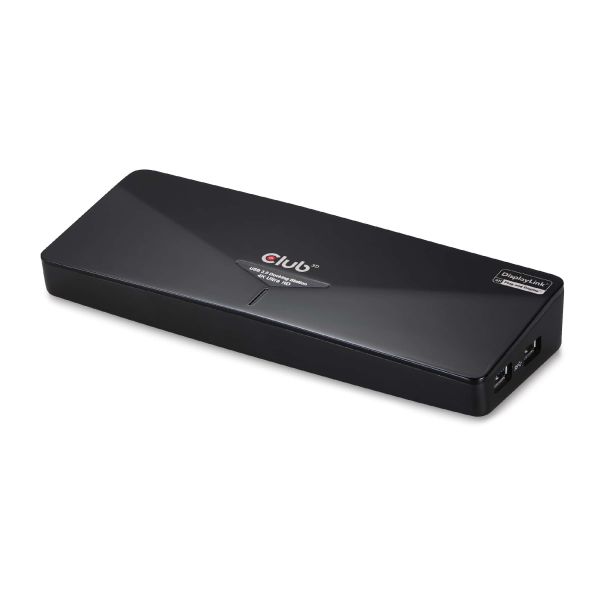

CLUB3D UNIVERSEEL USB 3.1 Gen 1 DisplayLink® gecertificeerd Docking station UHD 4K

SenseVision USB 3.0 4K Docking Station

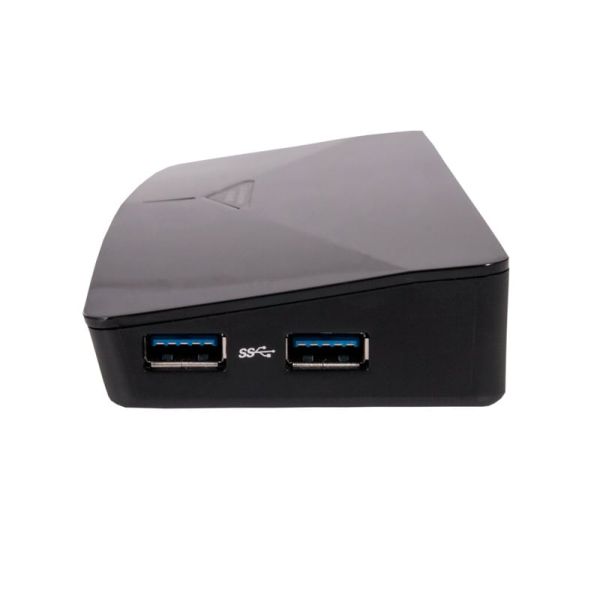

The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port.

Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes.

Functionality is also dependent on the functionality of the connected devices.

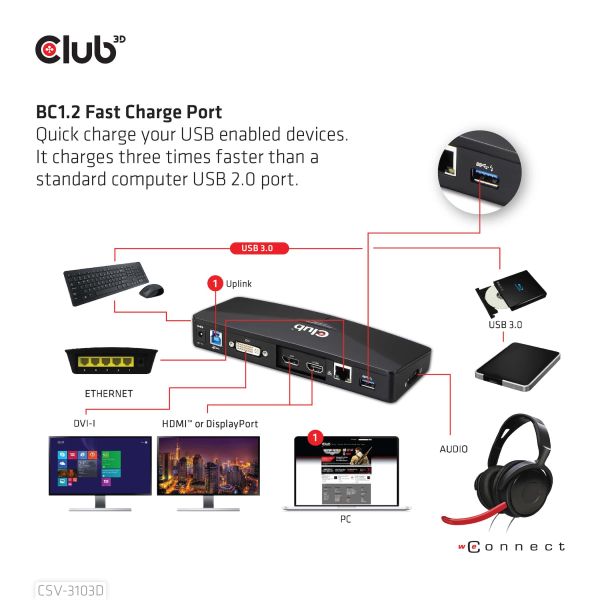

BC 1.2 charging
Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port.
Share

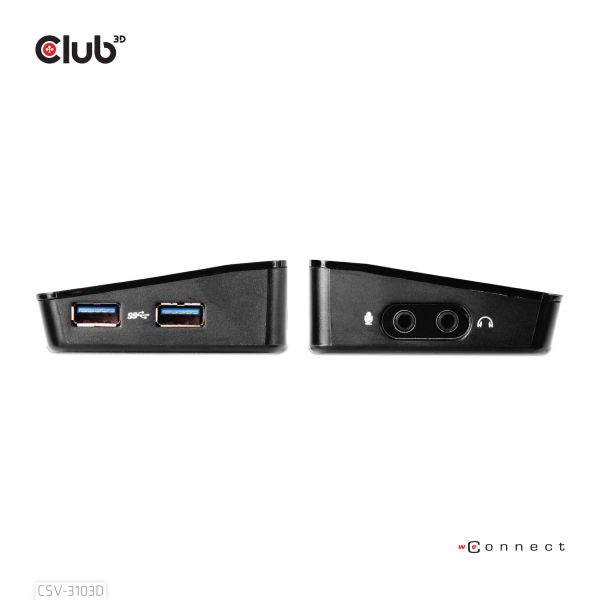

  • Compatible with USB 3.0 specification

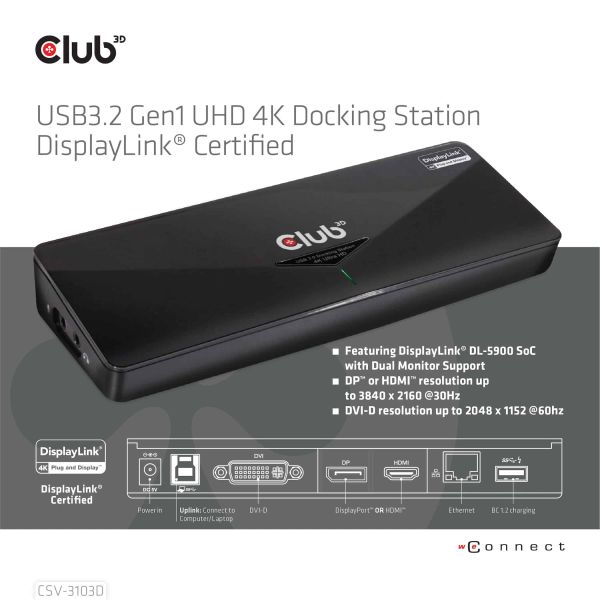

  • Max supported resolution for single screen setup is: up to 3840 x 2160 @30Hz
  • Max supported resolution for dual screen setup is: up to 2 x 1920 x 1200 @60Hz
  • Support audio 2.1 channel
  • Support Gigabit Ethernet
  • Support BC1.2 charging (Back port x1)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

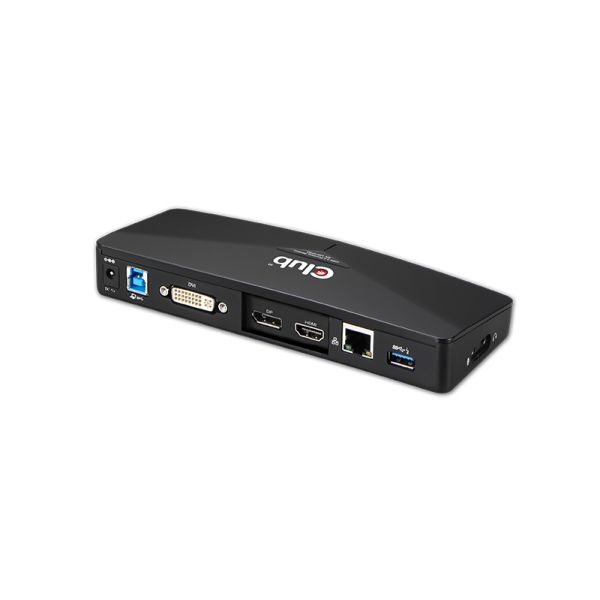

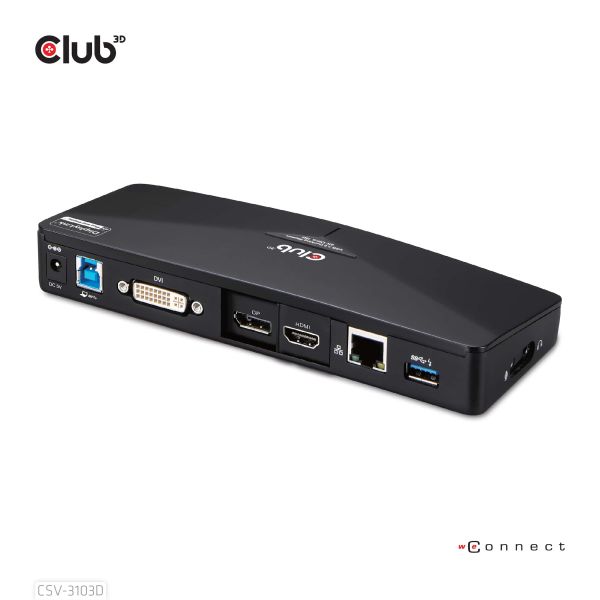

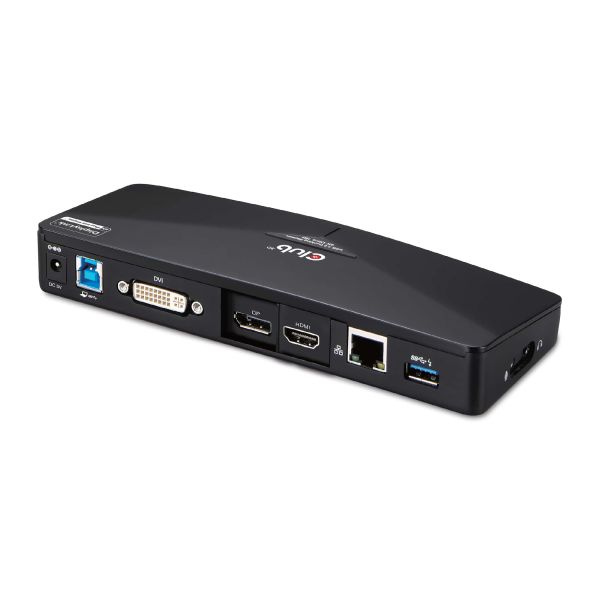

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3
Aantal HDMI-poorten*
1
HDMI versie
1.4a
Aantal DisplayPorts
1
DVI-I poorten
1
Microfoon, line-in ingang*
Ja
Hoofdtelefoonuitgangen*
1
Type aansluitplug
USB
Lijnuitgang
Ja
Aansluiting voor netstroomadapter
Ja
Audio (L,R) out
1

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Geïntegreerde geheugenkaartlezer*
Nee
Inclusief optische drive
Nee
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Resolutie (maximum analoog)
2048 x 1152 Pixels
Kleur van het product*
Zwart
LED-indicatoren
Stroom
Reset button
Nee
Plug and play
Ja

Prestatie

Oplaadfunctie
Ja
Compatibiliteit
Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
Certificering
CE, RoHS, FCC

Audio

Ingebouwde luidsprekers
Nee

Energie

Type stroombron
AC

Software

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Duurzaamheid

Duurzaamheidscertificaten
RoHS

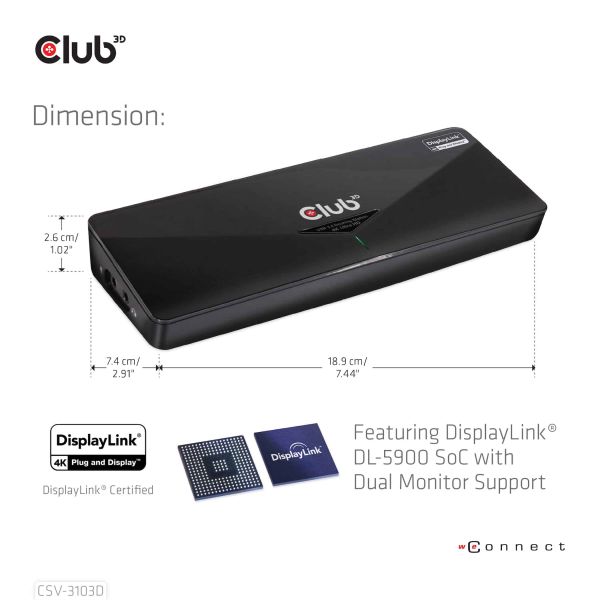

Gewicht en omvang

Breedte
189 mm
Diepte
74,5 mm
Hoogte
26,3 mm
Gewicht
200 g

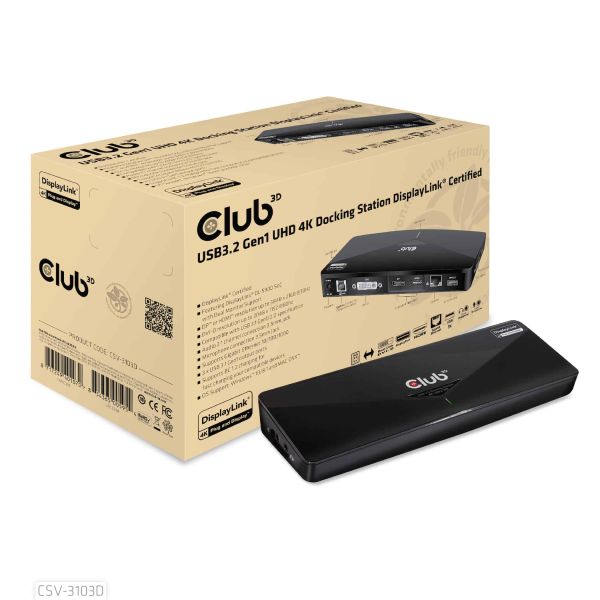

Inhoud van de verpakking

Meegeleverde kabels
USB
Inclusief AC-adapter
Ja
Snelstartgids
Ja
Gebruiksaanwijzing
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Aantal microfooningangen
1
