CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor, DisplayPort, 2x Displayport, Displayport 1.2, 3840 x 2160 Pixels, Zwart, 60 Hz

Niet op voorraad

Fabrikant Club 3D
MPN CSV-6200
EAN 8719214470906
€ 50,00 excl. BTW

CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

CSV-6200 - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming.
This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.

Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
  • Connect 2 Screens to a single DisplayPor™ t 1.2 output

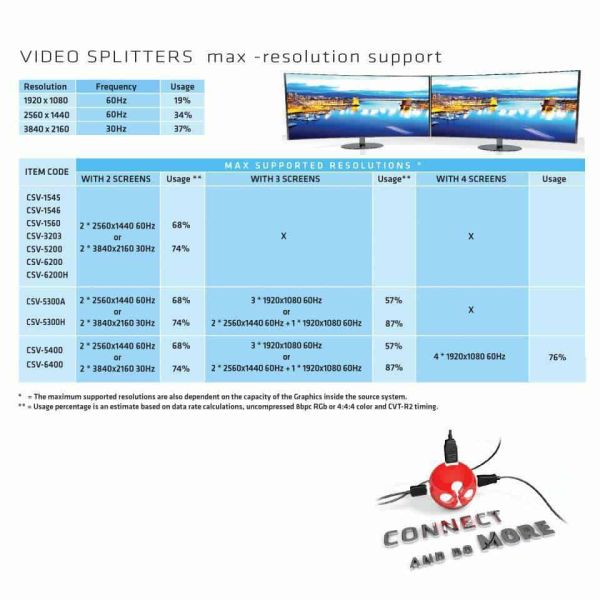

  • Supports resolutions up to 2 x 3840x2160 30Hz or 250x1600 60 Hz
  • Powered by USB

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aansluiting video*
DisplayPort
Video-ingang
Displayport 1.2
Video uit*
2x Displayport
Hoeveelheid Video ports*
2
Aansluiting voor netstroomadapter
Ja

Kenmerken

Kleur van het product
Zwart
Maximum resolutie*
3840 x 2160 Pixels
Volledige HD
Ja
3D
Ja
Maximale refresh snelheid
60 Hz
Snoerlengte
0,2 m
HD-Ready
Ja
HDCP
Ja
Gemakkelijk te installeren
Ja
Plug and play
Ja
Certificering
EMI CE, FCC, ROHs, WEEE
Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Energie

AC-ingangsspanning
5 V
Stroom
2 A
Stroomvoorziening via USB
Ja

Gewicht en omvang

Afmetingen (B x D x H)
244 x 49 x 11 mm
Gewicht
54 g

Verpakking

Aantal per verpakking
1 stuk(s)
Lengte van de verpakking
16 cm
Breedte verpakking
240 mm
Diepte verpakking
18 mm
Gewicht verpakking
9 g
Type verpakking
Polybag

Inhoud van de verpakking

Gebruikershandleiding
Ja
Meegeleverde kabels
Micro-USB
Verpakkingsinhoud
-Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered -USB to Micro USB Cable for power -Quick install guide

Technische details

Verbinding met pc
Ja
Technische details
Resolutions up to: 2 x 3840 x 2160 at 30Hz or 2 x 2560 x 1440 at 60Hz

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
Hoeveelheid per (buitenste) hoofdverpakking
5 stuk(s)
