CLUB3D Multistream Transport (MST) Hub DisplayPort™1.4 naar DisplayPort™1.4 Dual Monitor 4K60Hz M/V

CLUB3D Multistream Transport (MST) Hub DisplayPort™1.4 naar DisplayPort™1.4 Dual Monitor 4K60Hz M/V, DisplayPort, 2x DisplayPort, 3840 x 2160 Pixels, Zwart, 1.4/2.2, 1920 x 1080 (HD 1080), 3840 x 2160

Ruim op voorraad

Fabrikant Club 3D
MPN CSV-7200
EAN 8719214471927
€ 53,00 excl. BTW

CLUB3D Multistream Transport (MST) Hub DisplayPort™1.4 naar DisplayPort™1.4 Dual Monitor 4K60Hz M/V

The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
  • Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
  • Supports up to Two HDMI™ 4K60Hz ports
  • Supported output resolutions:
  • up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)
  • 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ (DP1.2)
  • Supports transmission of audio and video signals
  • Works with AMD*, Nvidia™ and Intel™ HD Graphics solutions
  • Plug and Play - no driver needed
  • Functionality may vary per GPU and OS
  • USB Bus Powered
  • Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aansluiting video*
DisplayPort
Video uit*
2x DisplayPort
Hoeveelheid Video ports*
2

Kenmerken

Kleur van het product
Zwart
Maximum resolutie*
3840 x 2160 Pixels
HDCP versie
1.4/2.2
HDCP
Ja
Ondersteunde grafische resoluties
1920 x 1080 (HD 1080), 3840 x 2160
Plug and play
Ja
Certificering
Meets ROHS, FCC, and CE EMI requirements
Ondersteunt Windows
Windows 10
Ondersteunt Mac-besturingssysteem
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

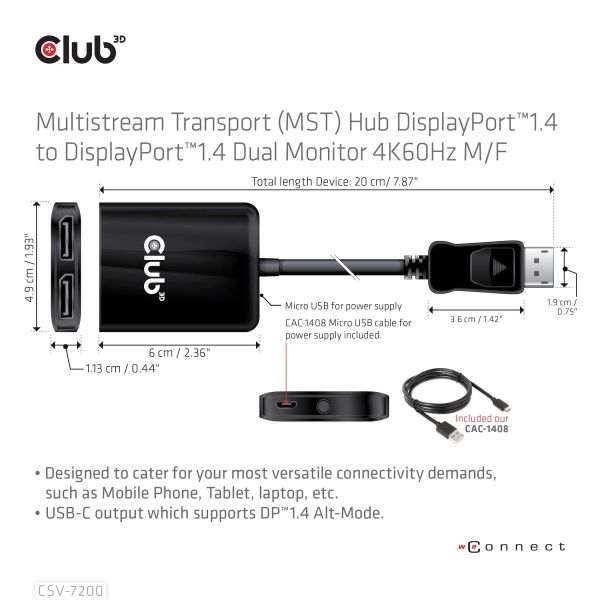

Gewicht en omvang

Breedte
60 mm
Diepte
49 mm
Hoogte
11,3 mm
Gewicht
50 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
60 mm
Diepte verpakking
240 mm
Hoogte verpakking
35 mm
Gewicht verpakking
28 g
Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
