Cooler Master Elite V4 400W, 400 W, 200 - 240 V, 50 - 60 Hz, 4 A, Actief, 100 W

Ruim op voorraad

Fabrikant Cooler Master
MPN MPE-4001-ACABN-EU
EAN 4719512084328

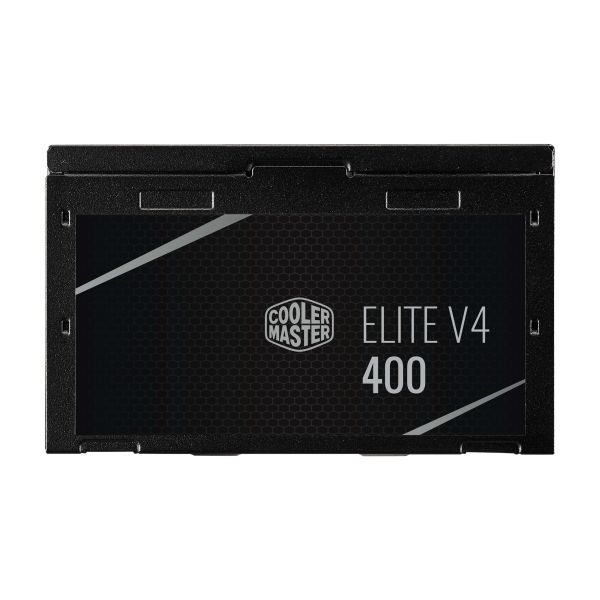

Cooler Master Elite V4 400W power supply unit 24-pin ATX ATX Zwart

Power Up
The Elite - v4 series power supply unit is a dependable choice for entry level PC builders and office work systems. The quiet 120mm fan, 80 PLUS White EU 230V efficiency, and 3 year warranty deliver a PSU that provides function and resilience you can count on. It's the perfect option for work horse systems stored and operated in less than ideal conditions and climates. This PSU has been engineered for reliability with a focus on reducing random shutdowns in conditions where power sources are inconsistent and unstable, making it ideal for locations prone to experience brown outs. The Elite - v4 is a complete solution, offering performance and stability at an affordable price.

Active PFC + Forward Topology Design
A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected system components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.

High Temperature Resistance
The new Elite - v4 has a maximum operating temperature of 40°C. That's at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.

Peak Power Tolerance
This power supply unit can push out an additional 50W above maximum load for up to 10 seconds before turning off. This will allow your system a chance to save data and complete current processes in the event of output surge or overloading. While it may not be a feature you'll actively need all the time, it can be extremely useful in an emergency scenario.

80 Plus White EU 230V Efficiency
The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The Elite - v4 has a guaranteed typical efficiency of 85%.

Durable, Reliable, and Safe
The Elite - v4 will perform consistently in whatever environment you throw at it whether it's high altitudes above 5000 meters or ultra humid settings like a tropical rain-forest. This unit was designed for work systems meant to be used in extreme conditions with challenging temperatures. Do whatever you need to do wherever you need to do it without letting your hardware limit your goals.



  • Active PFC + Forward Topology Design
  • High Temperature Resistance
  • Peak Power Tolerance
  • 80 Plus White EU 230V Efficiency
  • Durable, Reliable, And Safe

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
400 W
AC-ingangsspanning*
200 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
4 A
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+12V)
360 W
Gecombineerd vermogen (+5V)
100 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
14 A
Max huidige output(+12V)
30 A
Max huidige output (+5V)
14 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Houd-tijd
14 ms
Efficientie
85 procent
Vertragingsbereik Power Good-signaal
100 - 500 ms
Stroomspanning bescherming
Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

Motherboard power connector*
24-pin ATX
Lengte stroomkabel moederbord
55 cm
Aantal SATA power connectors
4
Lengte SATA-stroomkabel
400 mm
Peripheral (Molex) power connectors (4-pin)*
2
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
1
Lengte PCI Express-stroomkabel
50 cm
Bekabelingstype
Niet-modulair

Prestatie

80 PLUS certificatie*
80 PLUS
Bedoeld voor*
PC

Prestatie

Vormfactor van de voeding (PSU)*
ATX
ATX version
2.41
Bearing technologie
Hoes
Mean time between failures (MTBF)
100000 uur
Certificering
TUV, cTUVus, BSMI, FCC, EAC, RCM, KCC, CCC, CB

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Gewicht en omvang

Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm

Verpakking

Breedte verpakking
195 mm
Diepte verpakking
213 mm
Hoogte verpakking
96 mm

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, ErP

Logistieke gegevens

Aantal (buitenste) hoofdverpakkingen per pallet
50 stuk(s)
(Buitenste) hoofdverpakking breedte
228 mm
(Buitenste) hoofdverpakking lengte
500 mm
(Buitenste) hoofdverpakking hoogte
215 mm
Hoeveelheid per (buitenste) hoofdverpakking
5 stuk(s)

Overige specificaties

EPS-kabellengte
55 cm
