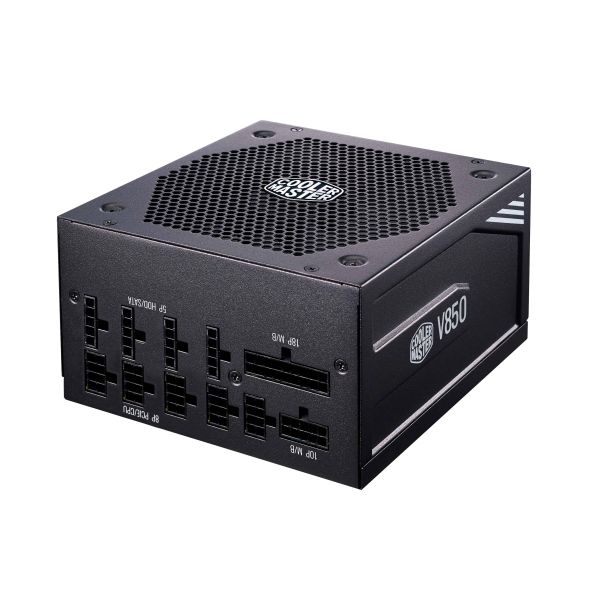

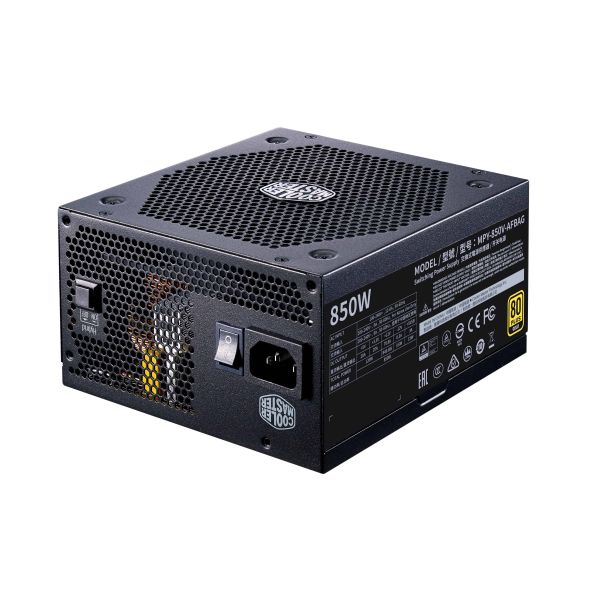

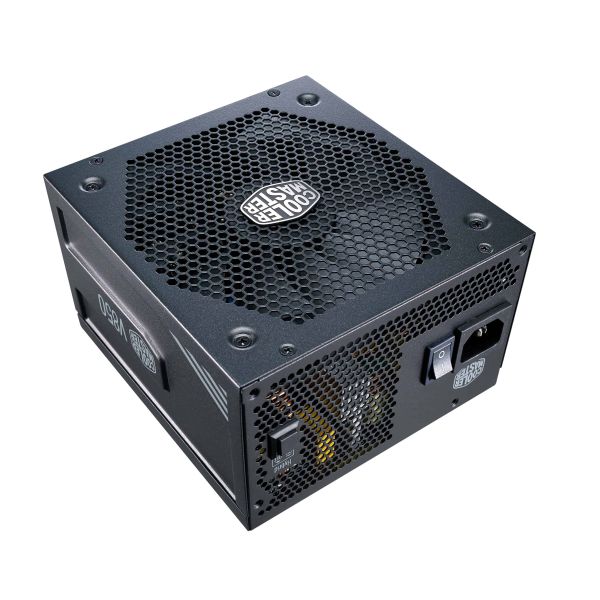

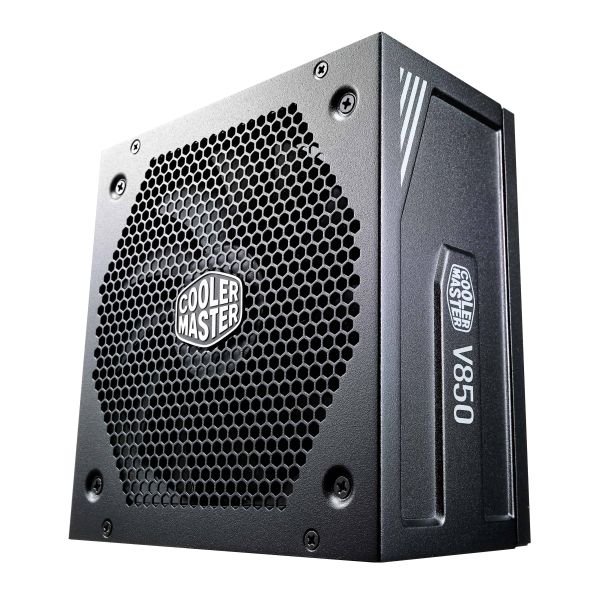

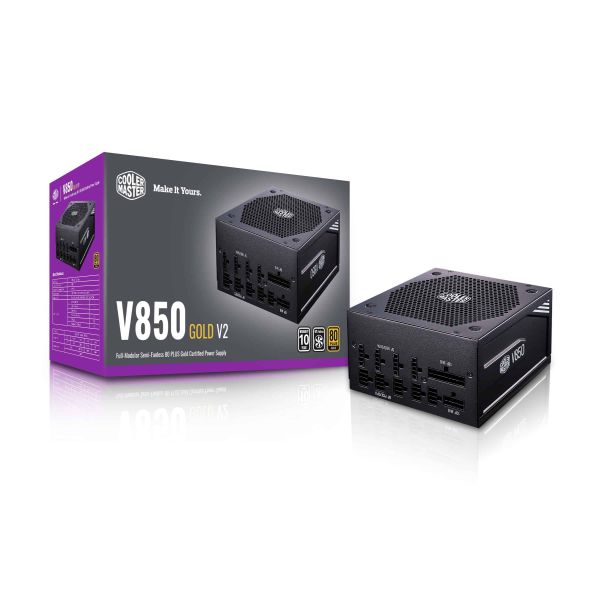

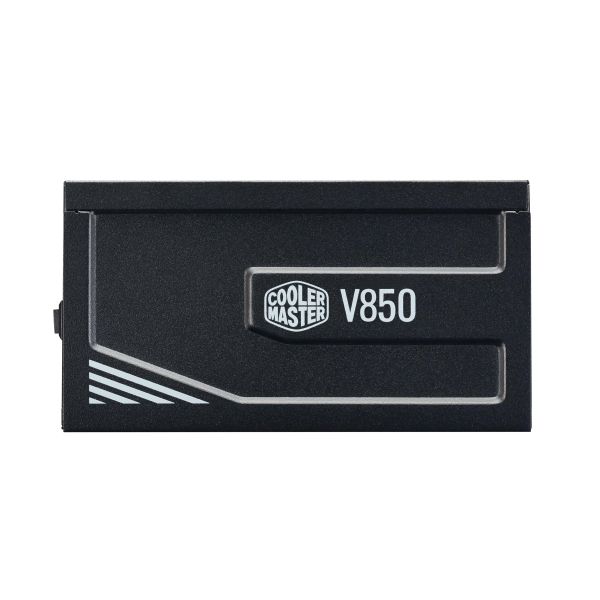

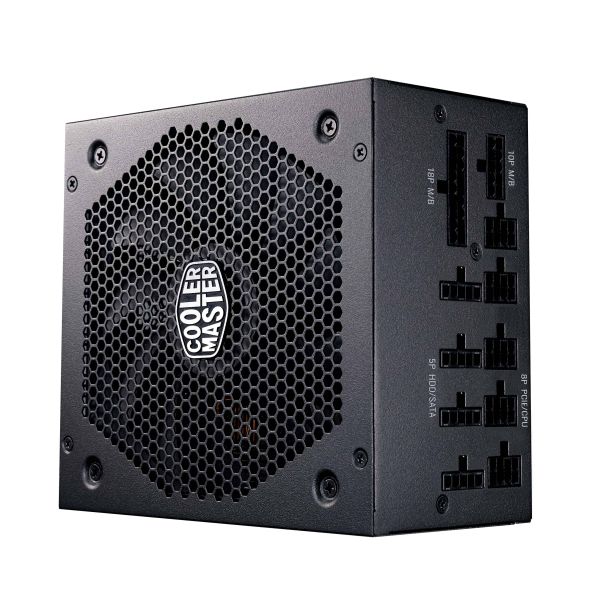

Cooler Master V850 Gold-V2 power supply unit 850 W 24-pin ATX ATX Zwart

Cooler Master V850 Gold-V2, 850 W, 100 - 240 V, 50 - 60 Hz, 13 - 6 A, Actief, 130 W

Niet op voorraad

Fabrikant Cooler Master
MPN MPY-850V-AFBAG-EU
EAN 4719512091739
€ 196,00 excl. BTW

Cooler Master V850 Gold-V2 power supply unit 850 W 24-pin ATX ATX Zwart

The V Gold -v2 offers the high quality user experience you’ve always wanted. Enjoy an 80 Plus Gold efficiency rating, full-modular cabling, semi-fanless operation, a 135mm FDB fan, 16AWG PCIehigh efficiency cables. Improvements and innovations from the components to the cables deliver a power supply unit fit for any and every type of PC. The 100% Japanese capacitors, half-bridge LLC resonant convertor, and DC-DC circuitry deliver a product that even the pros can respect, at 550, 650, 750, and 850 watt levels. Also available with black casing and cables.
  • 80 PLUS Gold Certified :This certification guarantees a typical efficiency of 90% under normal operating conditions
  • Performance Driven Topology :The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency

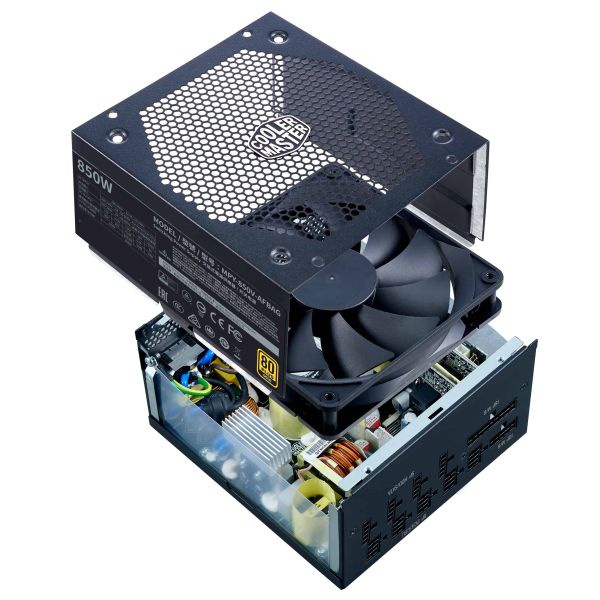

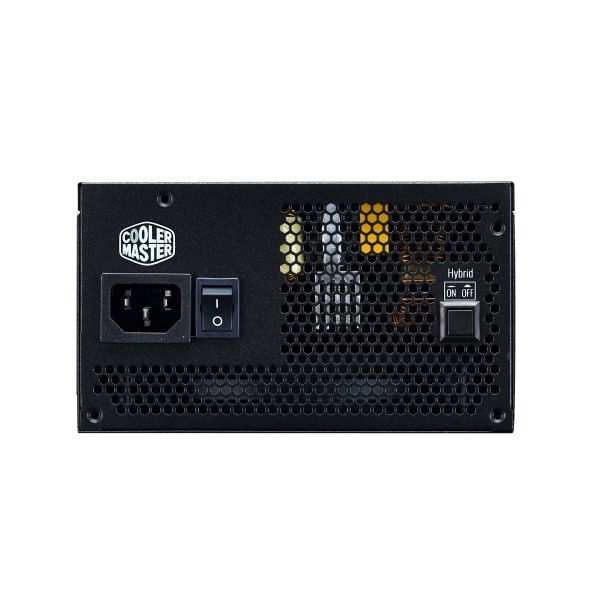

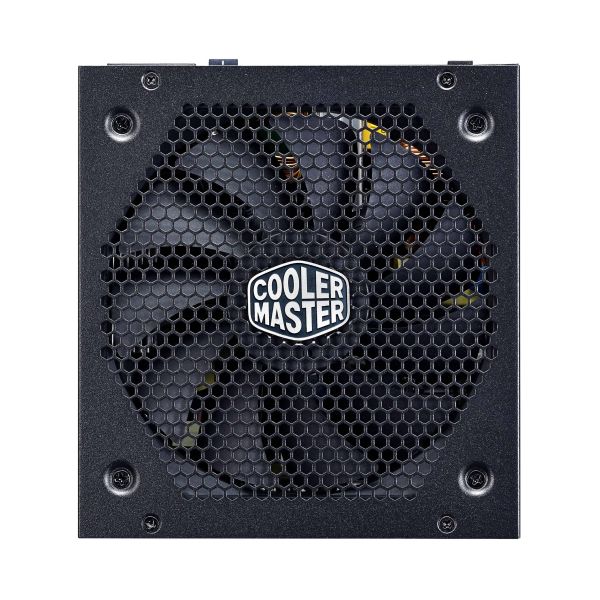

  • Semi-Fanless Mode with Hybrid Switch :The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware based hybrid switch

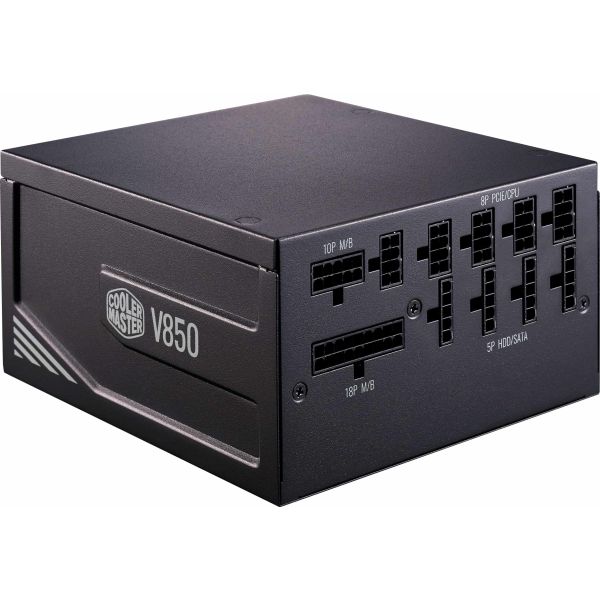

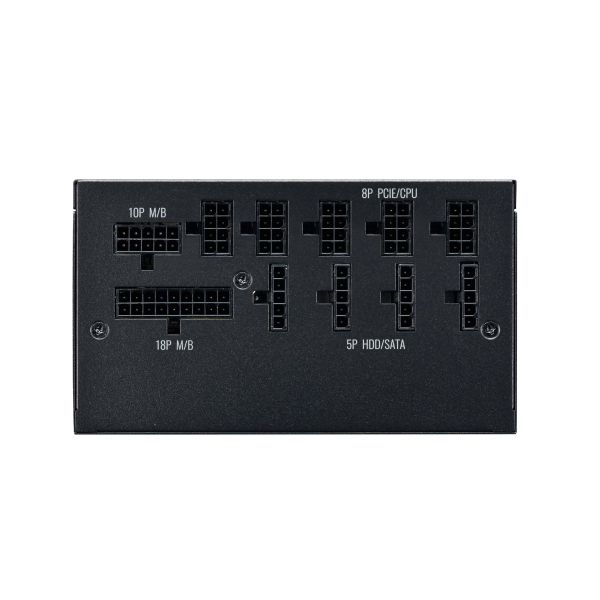

  • Full-Modular Cabling :Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
850 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
13 - 6 A
Power Factor Correctie (PFC) type
Actief

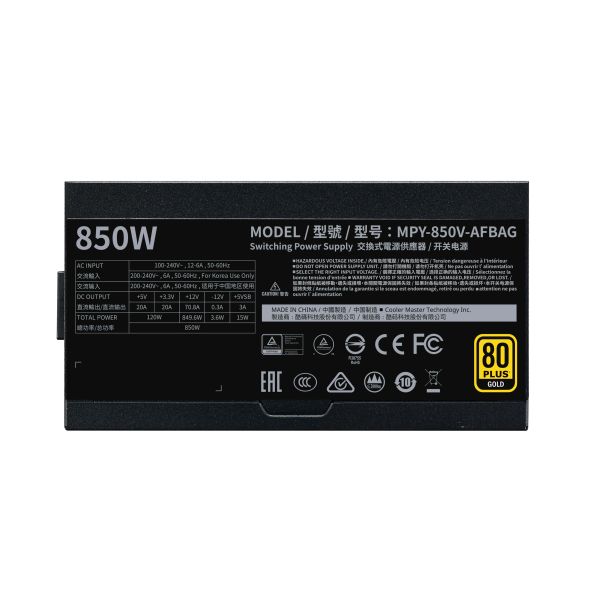

Gecombineerd vermogen (+3.3V)
130 W
Gecombineerd vermogen (+12V)
844 W
Gecombineerd vermogen (+5V)
130 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
70,4 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Houd-tijd
17 ms
Efficientie
90 procent
Vertragingsbereik Power Good-signaal
100 - 500 ms
Stroomspanning bescherming
Te hoog vermogen, Overspanning, Overbelasting, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

Motherboard power connector*
24-pin ATX
Aantal SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)*
4
EPS power connector (8-pin)
Ja
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
6
ATX Power connector (24-pin)
Ja
Aansluiting voor diskettestation
Ja
Bekabelingstype
Modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Supported motherboard form factors
ATX

Prestatie

Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX
ATX version
2.51
Bearing technologie
FDB
Mean time between failures (MTBF)
100000 uur
Certificering
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Ventilator snelheid
0 - 1545 RPM
Ventilator locatie
Boven
Aan/uitschakelaar
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Gewicht en omvang

Breedte
150 mm
Diepte
160 mm
Hoogte
86 mm
Gewicht
2,2 kg

Verpakking

Breedte verpakking
202 mm
Diepte verpakking
303 mm
Hoogte verpakking
125 mm
Gewicht verpakking
2,73 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Geluidsniveau (stille modus, 50%)
15,4 dB
Geluidsniveau (volle belastingmode, 100%)
32,5 dB
