Corsair AX1600i power supply unit 1600 W ATX Zwart

Corsair AX1600i, 1600 W, 100 - 240 V, 50 - 60 Hz, 9 - 15 A, 180 W, 1600 W

Ruim op voorraad

Fabrikant Corsair
MPN CP-9020087-EU
EAN 0843591050319
€ 455,00 excl. BTW

Corsair AX1600i power supply unit 1600 W ATX Zwart

THE WORLD’S BEST PSU GETS BETTER
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.

1600W OF ULTIMATE POWER
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.

TOP TIER COMPONENTS

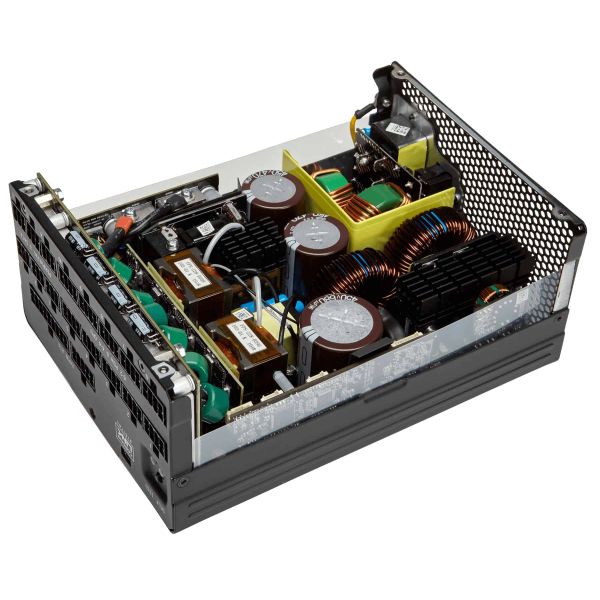

100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.

THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS
Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.

WORLD CLASS ELECTRICAL PERFORMANCE
Incredibly stable voltages and ultra-low ripple noise.

SOFTWARE MONITORING
CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting.

TAKE CONTROL
CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop.

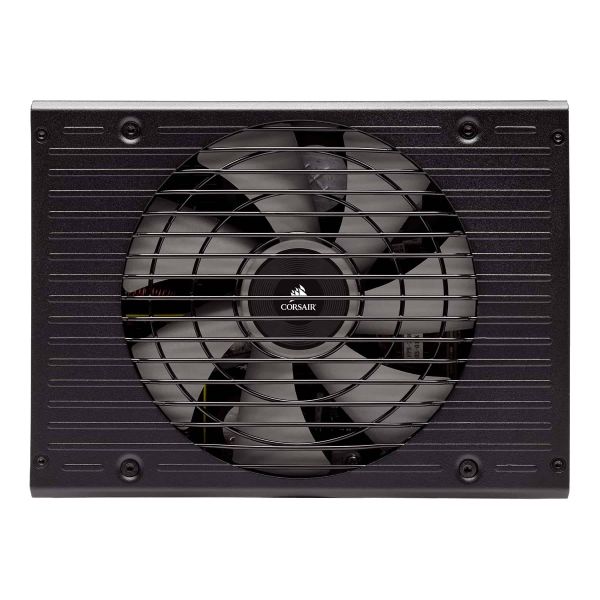

140MM PATENTED FDB COOLING FAN
Delivers low-noise operation even at demanding loads.

ZERO RPM FAN MODE
For near-silent operation at low to medium loads.

CHOOSE YOUR COLOR
Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.

FULLY MODULAR CABLES

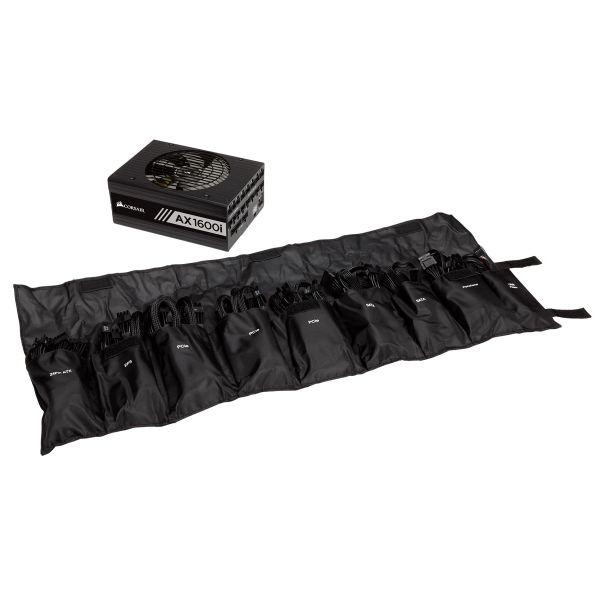

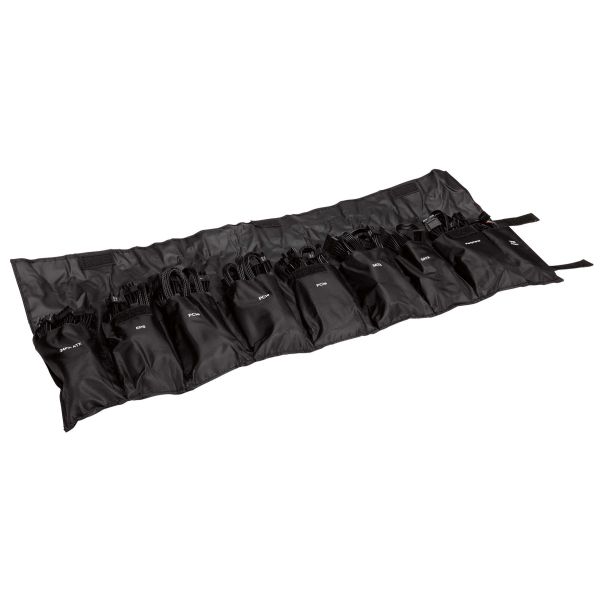

Use only the cables you need for quick and easy installation. Unused cables can be stored in the included roll-up cable bag.

BUILT TO LAST
Ten-Year comprehensive CORSAIR warranty.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
1600 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
9 - 15 A
Gecombineerd vermogen (+3.3V)
180 W
Gecombineerd vermogen (+12V)
1600 W
Gecombineerd vermogen (+5V)
180 W
Gecombineerd vermogen (-12V)
9,6 W
Gecombineerd vermogen(+5Vsb)
17,5 W
Max huidige output (+3.3V)
30 A
Max huidige output(+12V)
133,3 A
Max huidige output (+5V)
30 A
Max huidige output (-12V)
0,8 A
Max huidige output (+5Vsb)
3,5 A
Efficientie
94 procent
Stroomspanning bescherming
Overstroom

Poorten & interfaces

Aantal SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)*
3
EPS power connector (8-pin)
Ja
Bekabelingstype
Modulair

Prestatie

80 PLUS certificatie*
80 PLUS Titanium
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX

Prestatie

ATX version
2.4
EPS version
2.92
Continu nominaal afgegeven temperatuur
50 °C
Bearing technologie
FDB
Mean time between failures (MTBF)
100000 uur

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
14 cm
Aantal ventilatoren
1 ventilator(en)
Aan/uitschakelaar
Ja

Gewicht en omvang

Breedte
200 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
2,65 kg

Verpakking

Behuizingsticker inbegrepen
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Inclusief schroeven
Ja
Kabelbinders inbegrepen
Ja
