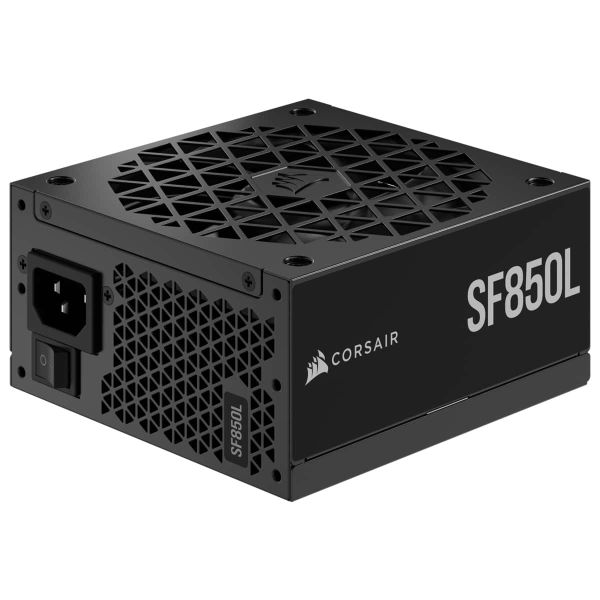

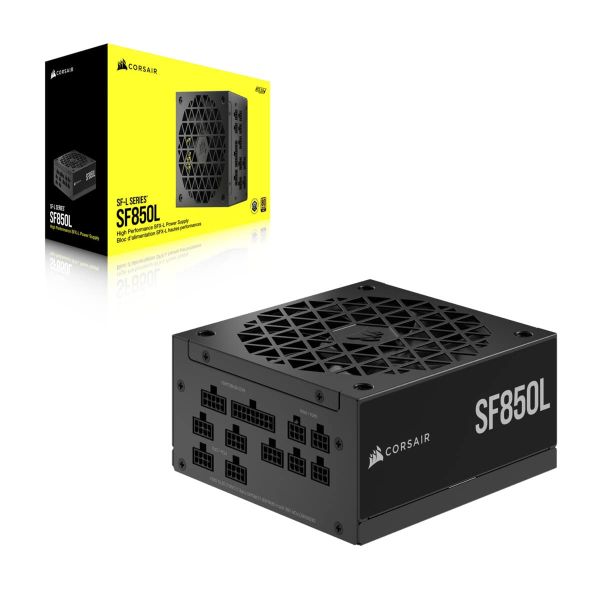

Corsair CP-9020245-EU power supply unit 850 W 24-pin ATX ATX Zwart

Corsair CP-9020245-EU, 850 W, 100 - 240 V, 47 - 63 Hz, 5 A, 10 A, Actief

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Corsair
MPN CP-9020245-EU
EAN 0840006646228
€ 370,00 excl. BTW

Corsair CP-9020245-EU power supply unit 850 W 24-pin ATX ATX Zwart

SF-L SERIES™
SF1000L POWER SUPPLY
FULLY MODULAR LOW-NOISE SFX POWER SUPPLIES
YOUR SMALL FORM X-FACTOR


LOOKS CAN BE DECEIVING
COMPACT SFX-L FORM FACTOR

Ideal for small form factor (SFF) PCs that don’t skimp on power, or for saving space in a larger build, SF-L Series PSUs pack a huge punch for their size.

ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED

The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF-L Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS

Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

120mm FAN WITH ZERO RPM MODE SUPPORT
Cooled by a powerful and quiet 120mm rifle bearing fan, with support for Zero RPM mode to ensure your PSU stays virtually silent when not under high load

80 PLUS GOLD CERTIFIED

Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.

40°C MAXIMUM OPERATING TEMPERATURE
Capable of 100% output at temperatures up to 40°C, for reliable power even under high-stress conditions.

SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
850 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
47 - 63 Hz
Maximale ingangsstroom (@110V)
5 A
Maximale ingangsstroom (@220V)
10 A
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
150 W
Gecombineerd vermogen (+12V)
850 W
Gecombineerd vermogen (+5V)
150 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
70,8 A
Max huidige output (+5V)
20 A
Max huidige output (+5Vsb)
3 A

Poorten & interfaces

Motherboard power connector*
24-pin ATX
Aantal SATA power connectors
12
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Ja
ATX Power connector (24-pin)
Ja

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Supported motherboard form factors
ATX
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX
ATX version
3.0
Stille modus
Ja
Bearing technologie
FDB
Mean time between failures (MTBF)
100000 uur

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)

Inhoud van de verpakking

Meegeleverde kabels
AC, DC
Inclusief kabelbinder(s)
Ja

Gewicht en omvang

Breedte
125 mm
Diepte
130 mm
Hoogte
63,5 mm
