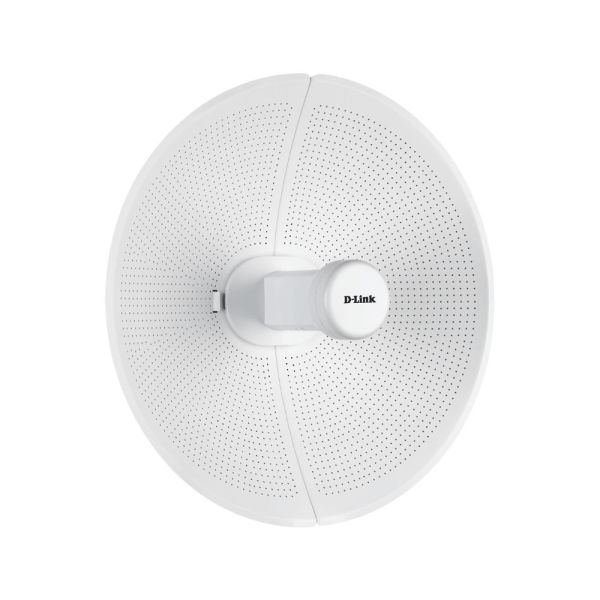

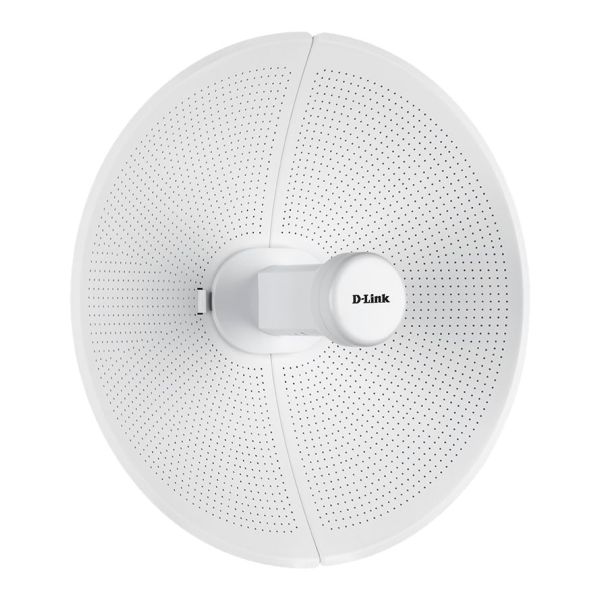

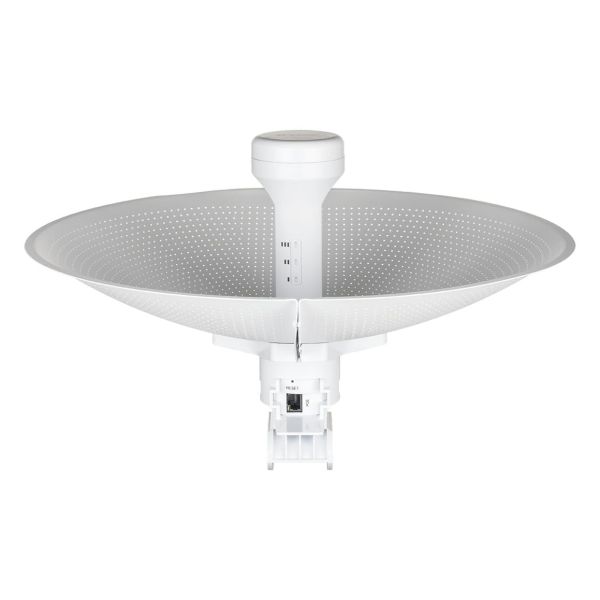

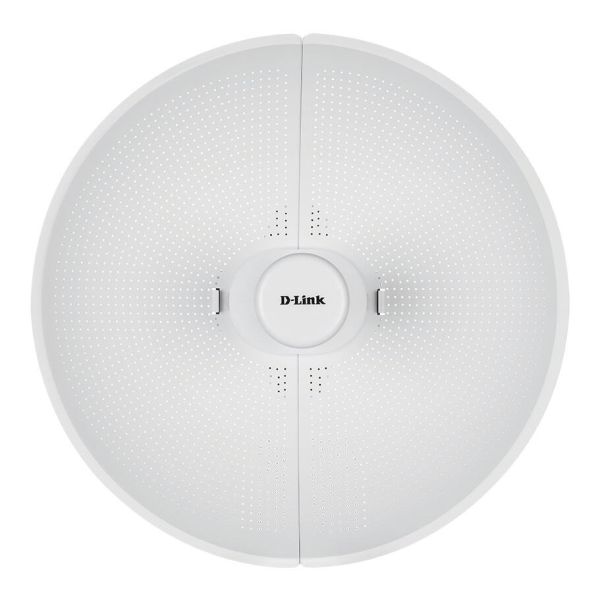

D-Link DAP-3712 draadloos toegangspunt (WAP) 867 Mbit/s Wit Power over Ethernet (PoE)

D-Link DAP-3712, 867 Mbit/s, 867 Mbit/s, 100,1000 Mbit/s, 5.745 - 5.825 GHz, 0,08 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n

Niet op voorraad

MPN DAP-3712
EAN 0790069457289

D-Link DAP-3712 draadloos toegangspunt (WAP) 867 Mbit/s Wit Power over Ethernet (PoE)

Highlights
The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.

TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3712 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.

Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.

Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.

Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
  • Features high-gain 23 dBi directional antenna supplying high-speed, stable coverage to up to 20 km away
  • Integrated TDMA Technology cuts through interference to ensure high-speed, consistent coverage
  • Superior throughput with single-band transfer speeds of up to 867 Mbps
  • Refined design effortlessly blends into any setting
  • Supports WPA2™ - Wi-Fi security for more protection
  • Support for Power over Ethernet means less wires, for cleaner and easier deployment
  • Features an IP66 rating, boasting water-resistant and dust-tight housings

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
867 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
100,1000 Mbit/s
Frequentieband
5.745 - 5.825 GHz
Bandbreedte
0,08 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Aantal kanalen
2 kanalen
Fit AP-modusfuncties
Draadloos distributiesysteem (WDS)
VLAN=ondersteuning
Ja
Maximum outdoorbereik
20000 m
Zendvermogen (CE)
27 dBm

Beveiliging

Ondersteunde beveiligingsalgoritmen*
128-bit AES
MAC adres filtering
Ja
IP-adresfilter
Ja
Service Set Identifier (SSID) functies
SSID-broadcast
DHCP snooping
Ja

Beheerfuncties

Syslog
Ja
Upgraden van firmware mogelijk
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja

Energie

AC-ingangsspanning
48 V
Stroomverbruik (typisch)
15 W

Design

Plaatsing*
Paal
Kleur van het product*
Wit
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS)
Internationale veiligheidscode (IP)
IP66
Reset button
Ja
LED-indicatoren
Signaalsterkte
Certificering
CE, FCC

Antenne

Antenne versterkingsniveau (max)
23 dBi

Gewicht en omvang

Breedte
372 mm
Diepte
241 mm
Hoogte
372 mm
Gewicht
900 g

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Bedrijfstemperatuur (T-T)
-40 - 65 °C
Temperatuur bij opslag
-40 - 85 °C
Luchtvochtigheid bij opslag
0 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
