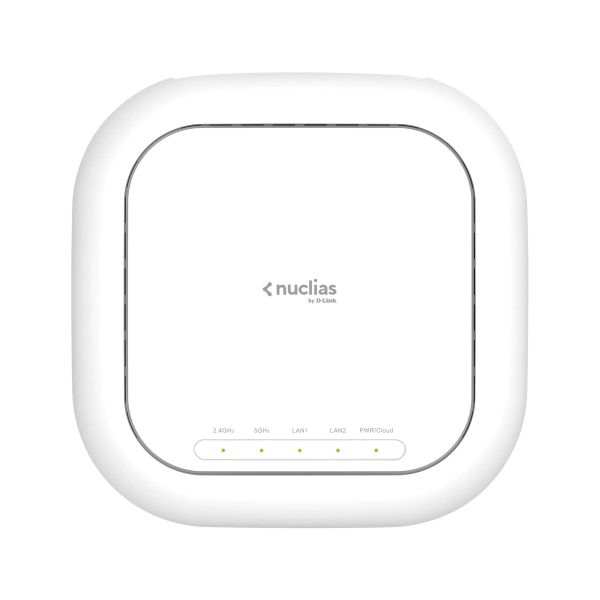

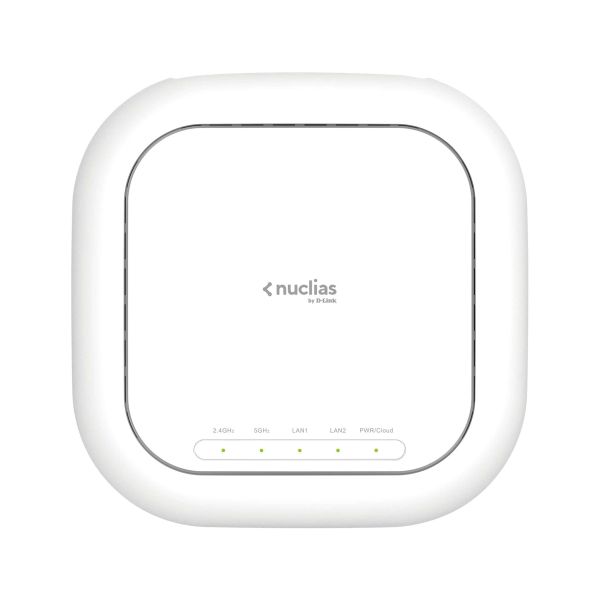

D-Link DBA-2820P draadloos toegangspunt (WAP) 2600 Mbit/s Wit Power over Ethernet (PoE)

D-Link DBA-2820P, 2600 Mbit/s, 800 Mbit/s, 1733 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at,..., Multi User MIMO

Nog slechts 6 beschikbaar

MPN DBA-2820P
EAN 0790069448188
€ 529,00 excl. BTW

D-Link DBA-2820P draadloos toegangspunt (WAP) 2600 Mbit/s Wit Power over Ethernet (PoE)

Cloud Networking, Refreshed
The DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.

Built for Heavy Workloads
The DBA-2820P is a workhorse solution built to handle bandwidth-intensive applications involving numerous clients. It delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 2.6Gbps, and 4 x 4 MU-MIMO (four spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2820P’s channel selection, transmission power, and maximum number of client connections.

Advanced Management & Security
The Nuclias Cloud interface lets admins easily manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.

Full PoE Support
The DBA-2820P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.
  • Cloud Management
  • Zero-Touch Deployment
  • Up to 2.6Gbps throughput
  • IEEE 802.11ac Wave 2 wireless
  • 4 x 4 MU-MIMO with four spatial streams
  • IEEE 802.3at Power over Ethernet (PoE)
  • WPA/WPA2/WPA3-Personal/Enterprise
  • Integrated DHCP Server
  • RADIUS client and Cipher negotiation
  • Up to 16 SSIDs

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
2600 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
800 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
1733 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MIMO
Ja
MIMO-type
Multi User MIMO
Datastroombeheer
Ja
Zendvermogen
26 dBmW

Beveiliging

Ondersteunde beveiligingsalgoritmen*
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
16

Protocollen

DHCP server
Ja

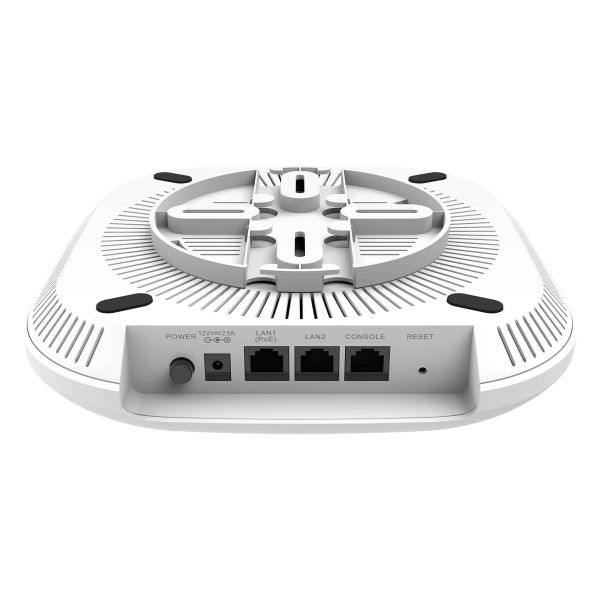

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2
Aansluiting voor netstroomadapter
Ja

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Spanning
12 V
Vermogensverbruik (max)
21,65 W
Netvoeding
19,2 W

Design

Plaatsing*
Plafond, Tafel, Muur
Kleur van het product*
Wit
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
Aan/uitschakelaar
Ja
Reset button
Ja
LED-indicatoren
Ja
Certificering
CE B, FCC B, UL, IC B

Antenne

Soort antenne*
Intern

Antenne

Type antennerichting
Omni-directioneel
Antenne versterkingsniveau (max)
4 dBi

Technische details

(Binnenste) verzendverpakking lengte
41,9 cm
(Binnenste) verzendverpakking breedte
31,2 cm
(Binnenste) verzendverpakking hoogte
32,8 cm
Nettogewicht transportverpakking
6,92 kg
Producten per (binnenste) verzendverpakking
5 stuk(s)
Pallet brutogewicht (lucht)
206,4 kg
Aantal dozen per pallet (lucht)
24 stuk(s)
Aantal per pallet (lucht)
120 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
144,7 cm
Pallet brutogewicht (zee)
253,7 kg
Aantal dozen per pallet (zee)
30 stuk(s)
Producten per pallet (zee)
150 stuk(s)
Pallethoogte (zee)
177,5 cm
(Binnenste) verzendverpakking gewicht
7,79 kg

Gewicht en omvang

Breedte
224,5 mm
Diepte
223,8 mm
Hoogte
50 mm
Gewicht
810 g

Verpakking

Breedte verpakking
294 mm
Diepte verpakking
291 mm
Hoogte verpakking
94 mm
Gewicht verpakking
1,39 kg

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 65 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
