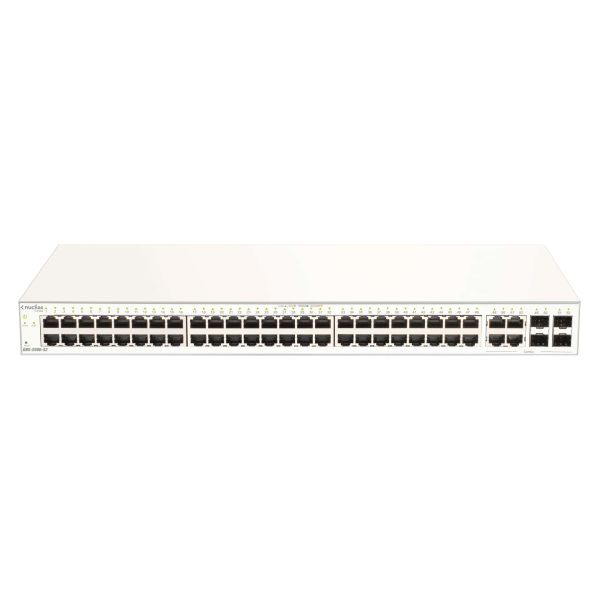

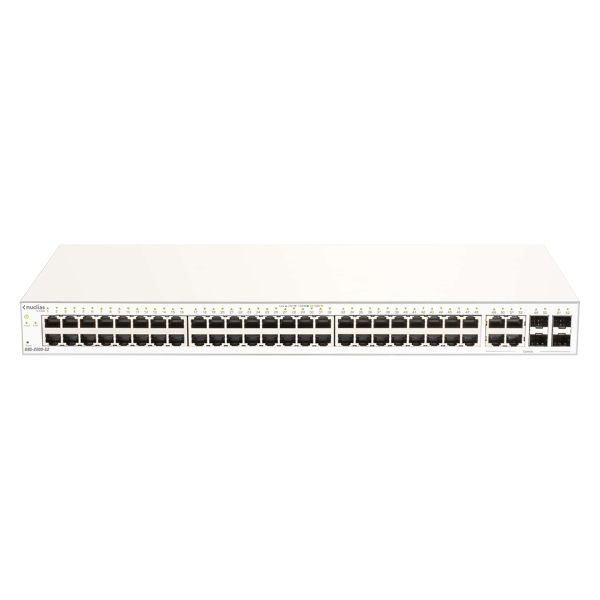

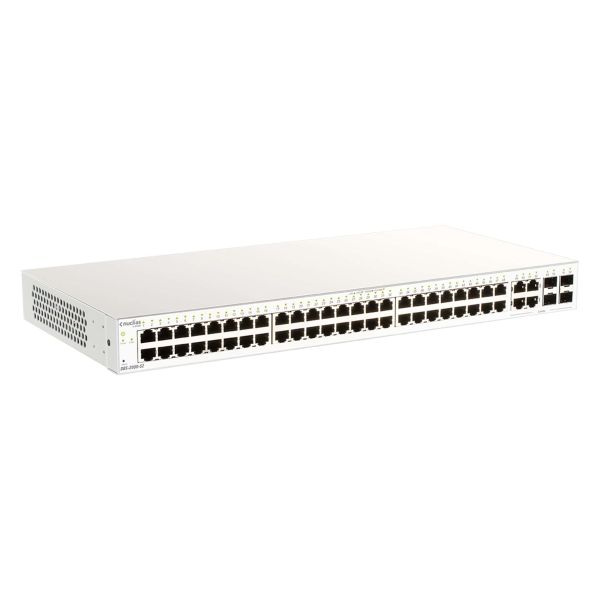

D-Link DBS-2000-52 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Grijs

D-Link DBS-2000-52, Managed, L2, Gigabit Ethernet (10/100/1000), Rack-montage

Nog 12 beschikbaar

MPN DBS-2000-52
EAN 0790069442971
€ 558,00 excl. BTW

D-Link DBS-2000-52 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Grijs

Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
  • 48 x 10/100/1000BASE-T ports
  • 4 x 10/100/1000BASE-T ports
  • Zero-Touch Deployment
  • Cloud Management w/99.9% SLA
  • WPA/WPA2/WPA3 Encryption
  • Innovative D-Link Green Energy-saving features
  • Intuitive Web Portal for comprehensive switch management
  • Multilingual Support

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3ad
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Verbindingsaggregatie
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja

Data-uitwisseling

Switchingcapaciteit*
104 Gbit/s
Verzending snelheid
77,4 Mpps
Packet buffergeheugen
12 MB

Beveiliging

IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
WPA, WPA2

Design

Rack-montage*
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja

Prestatie

Type processor
Ja
Frequentie van processor
700 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
256 MB
Flash memory
32 MB
Mean time between failures (MTBF)
400667 uur

Technische details

(Binnenste) verzendverpakking hoogte
38,3 cm
(Binnenste) verzendverpakking breedte
31,4 cm
(Binnenste) verzendverpakking lengte
56,2 cm

Technische details

Nettogewicht transportverpakking
13,8 kg
Producten per (binnenste) verzendverpakking
3 stuk(s)
Pallet brutogewicht (lucht)
284,8 kg
Aantal dozen per pallet (lucht)
18 stuk(s)
Aantal per pallet (lucht)
54 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
128,4 cm
Pallet brutogewicht (zee)
462,2 kg
Aantal dozen per pallet (zee)
30 stuk(s)
Producten per pallet (zee)
90 stuk(s)
Pallethoogte (zee)
2,05 m
(Binnenste) verzendverpakking gewicht
14,7 kg

Energie

AC-ingangsspanning
100 - 240 V
Vermogensverbruik (max)
34,85 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Warmtedissipatie
118,92 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
210 mm
Hoogte
44,5 mm
Gewicht
3,46 kg

Verpakking

Breedte verpakking
354 mm
Diepte verpakking
552 mm
Hoogte verpakking
98 mm
Gewicht verpakking
4,6 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
