D-Link DES-105 Unmanaged L2 Zwart

D-Link DES-105, Unmanaged, L2, Full duplex

Ruim op voorraad

MPN DES-105/E
EAN 0790069368189
€ 41,00 excl. BTW

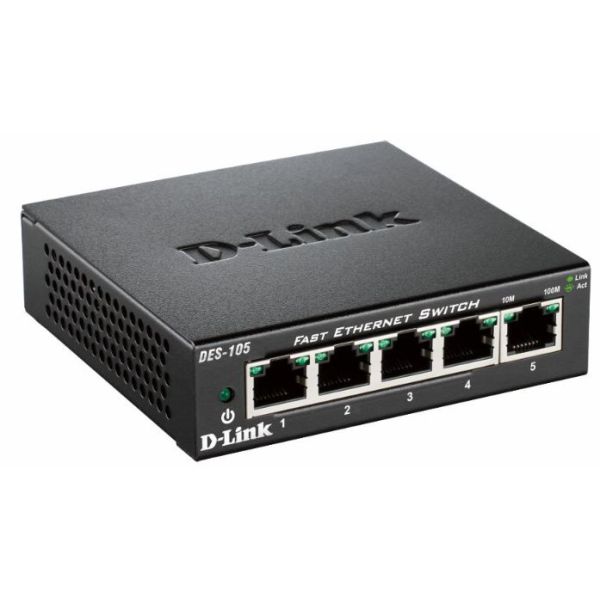

D-Link DES-105 Unmanaged L2 Zwart

- Plug and Play operation
- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan

D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
5
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
100BASE-TX, 10BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Ondersteunde data-overdrachtsnelheden
10/100 Mbps
Switchingcapaciteit*
1 Gbit/s
MAC-adrestabel*
2000 entries
Store-and-forward
Ja
Max. overdrachtssnelheid
0,1 Gbit/s
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
0,384 MB

Beveiliging

MAC adres filtering
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link, Stroom
Certificering
RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB

Prestatie

Mean time between failures (MTBF)
495709 uur

Technische details

(Binnenste) verzendverpakking hoogte
36,6 cm
(Binnenste) verzendverpakking breedte
23 cm
(Binnenste) verzendverpakking lengte
33,5 cm
Nettogewicht transportverpakking
4,5 kg
Producten per (binnenste) verzendverpakking
10 stuk(s)

Technische details

Pallet brutogewicht (lucht)
434 kg
Aantal dozen per pallet (lucht)
75 stuk(s)
Aantal per pallet (lucht)
750 stuk(s)
Pallet brutolengte
120 cm
Pallet brutobreedte
110 cm
Pallethoogte (lucht)
2,04 m
Pallet brutogewicht (zee)
434 kg
Aantal dozen per pallet (zee)
75 stuk(s)
Producten per pallet (zee)
750 stuk(s)
Pallethoogte (zee)
2,04 m
(Binnenste) verzendverpakking gewicht
5,5 kg

Energie

Stroom
1 A
Ingangsspanning
5 V
Stroomverbruik (typisch)
1,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Gewicht
265 g

Verpakking

Breedte verpakking
170 mm
Diepte verpakking
220 mm
Hoogte verpakking
62 mm
Gewicht verpakking
450 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Overdrachtssnelheid
200 Mbit/s
Afmetingen (B x D x H)
100 x 98 x 28 mm
Connectiviteitstechnologie
Bedraad
